Headlight Leveling Diagram (Notchback)

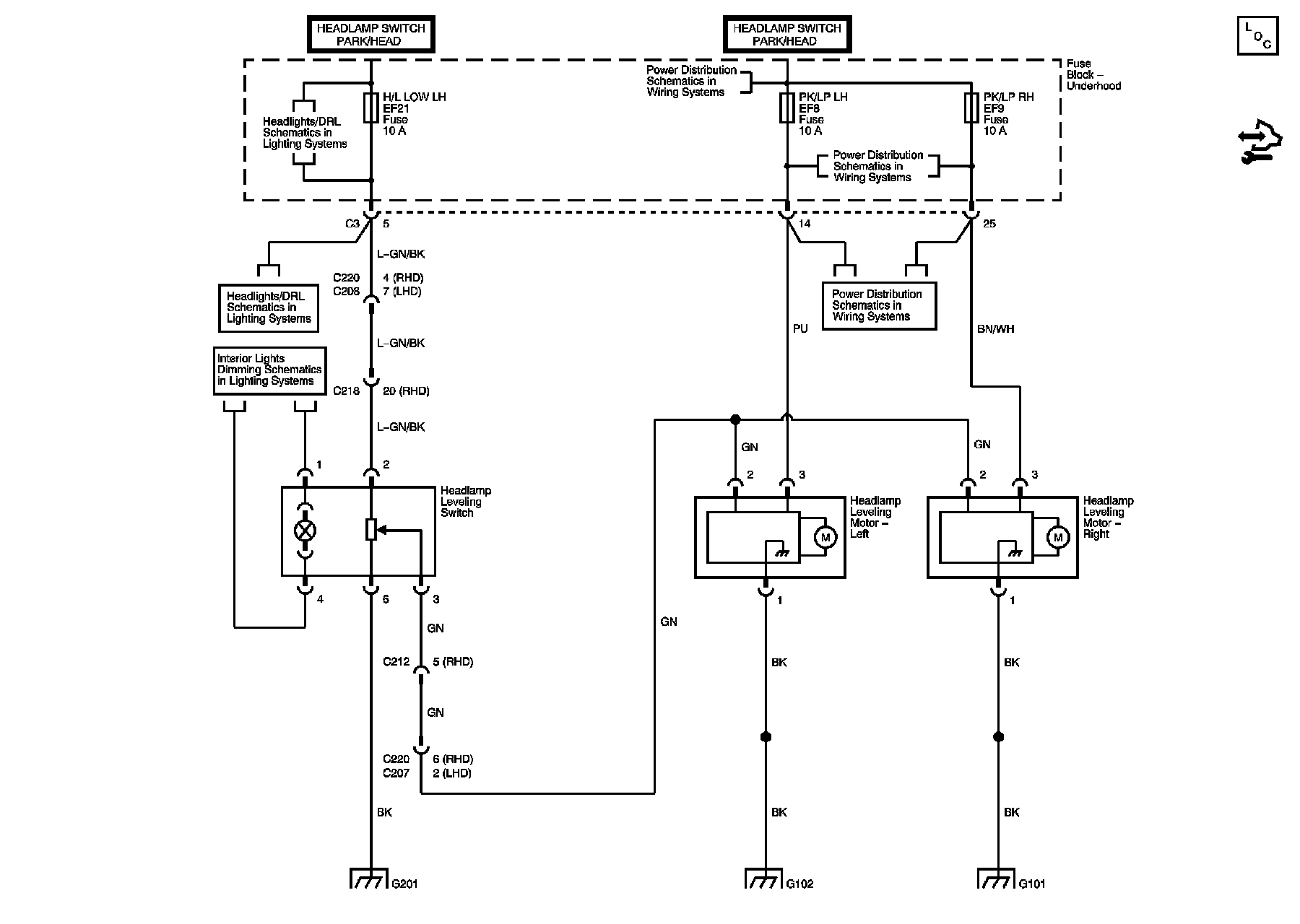

Headlight Leveling Schematics (Notchback)

Headlight Leveling Diagram (Notchback):
