Data Communication Diagrams (Notchback)

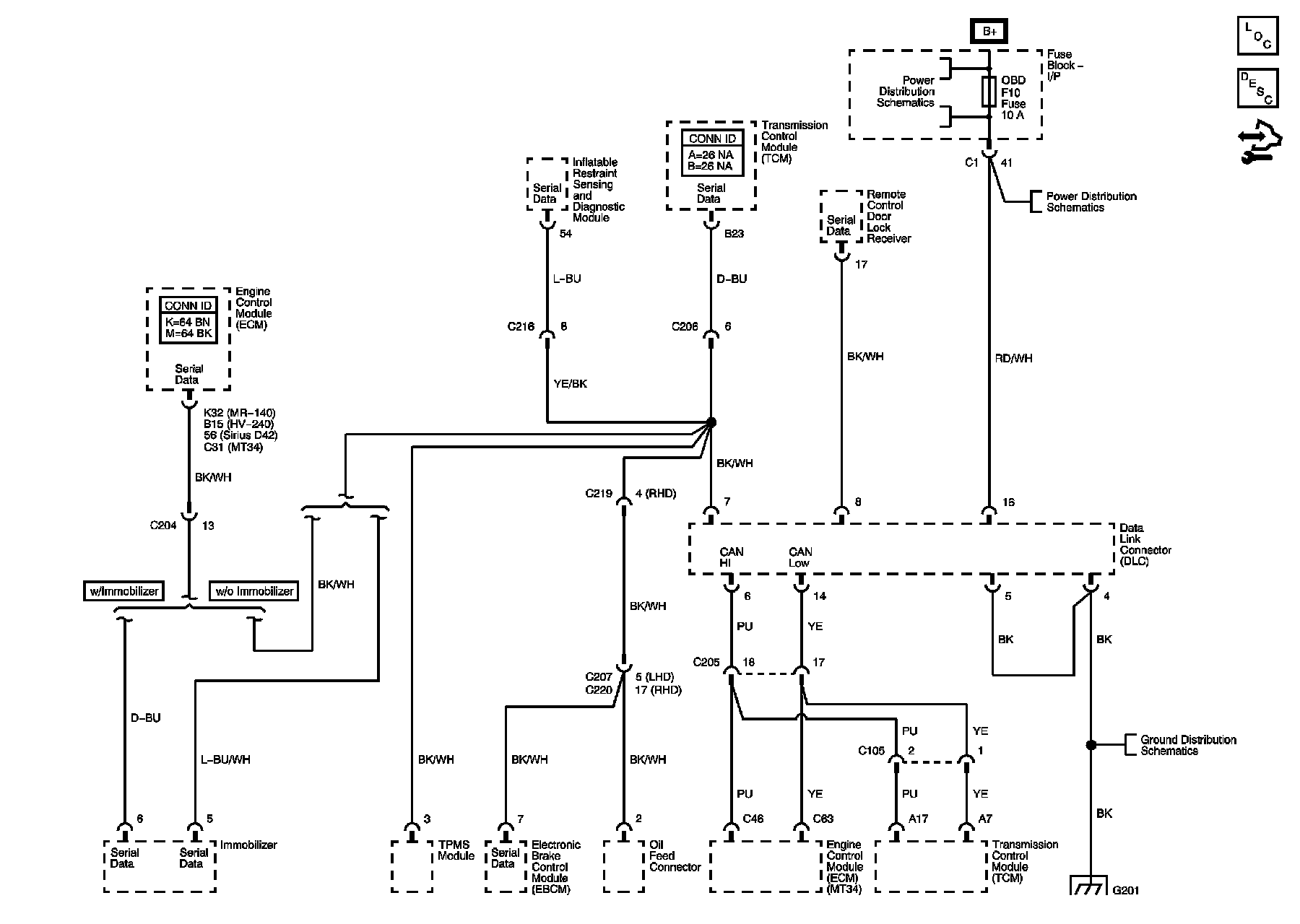

Data Communication Schematics (Notchback)

Data Link Communications
