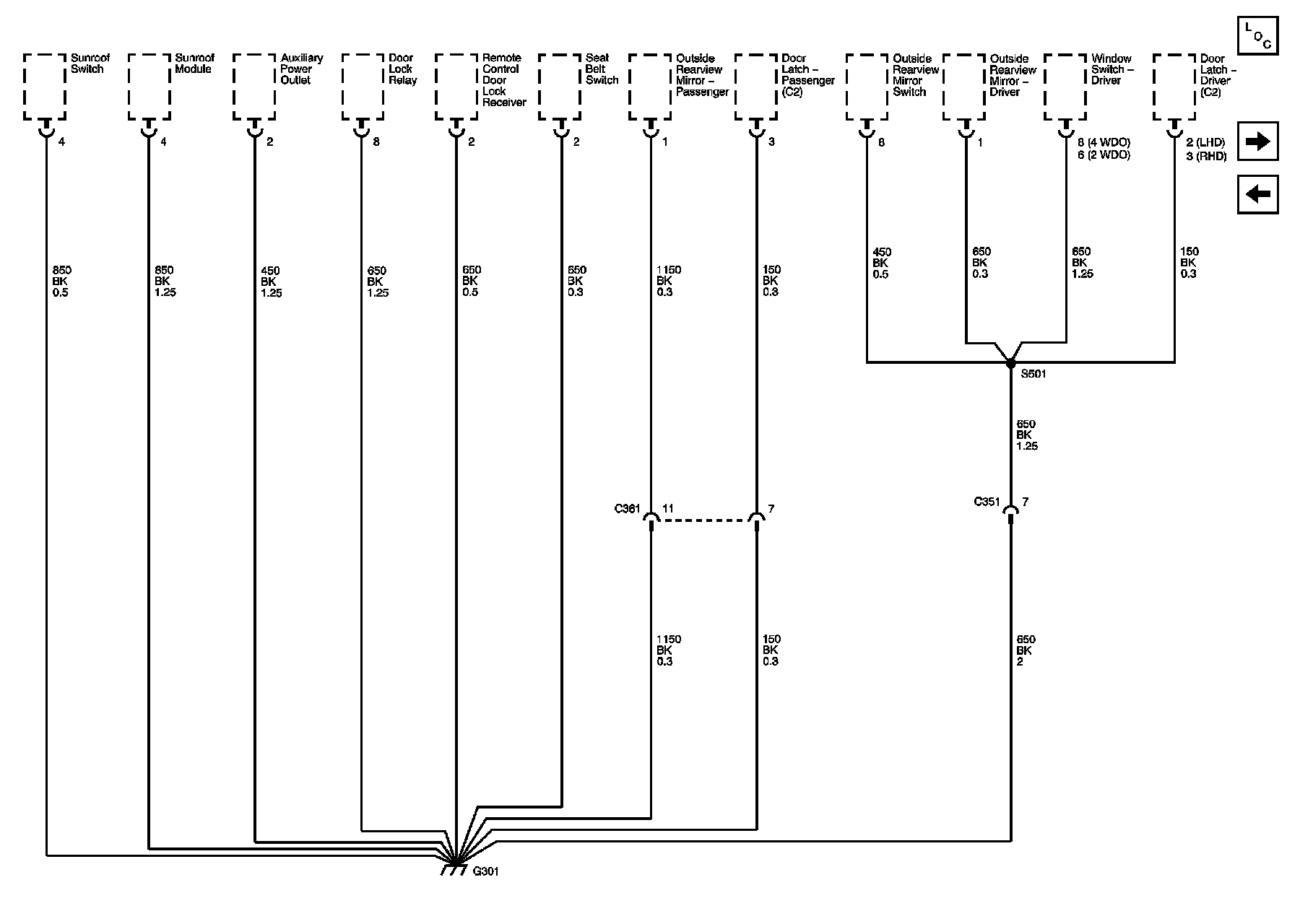

Home >> Chevrolet >> 2008 >> Aveo L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Diagrams (Hatchback) >> G301
