Starting and Charging Diagrams (Hatchback)
Starting and Charging Diagrams (Hatchback)
Starting and Charging
Schematics (Hatchback)

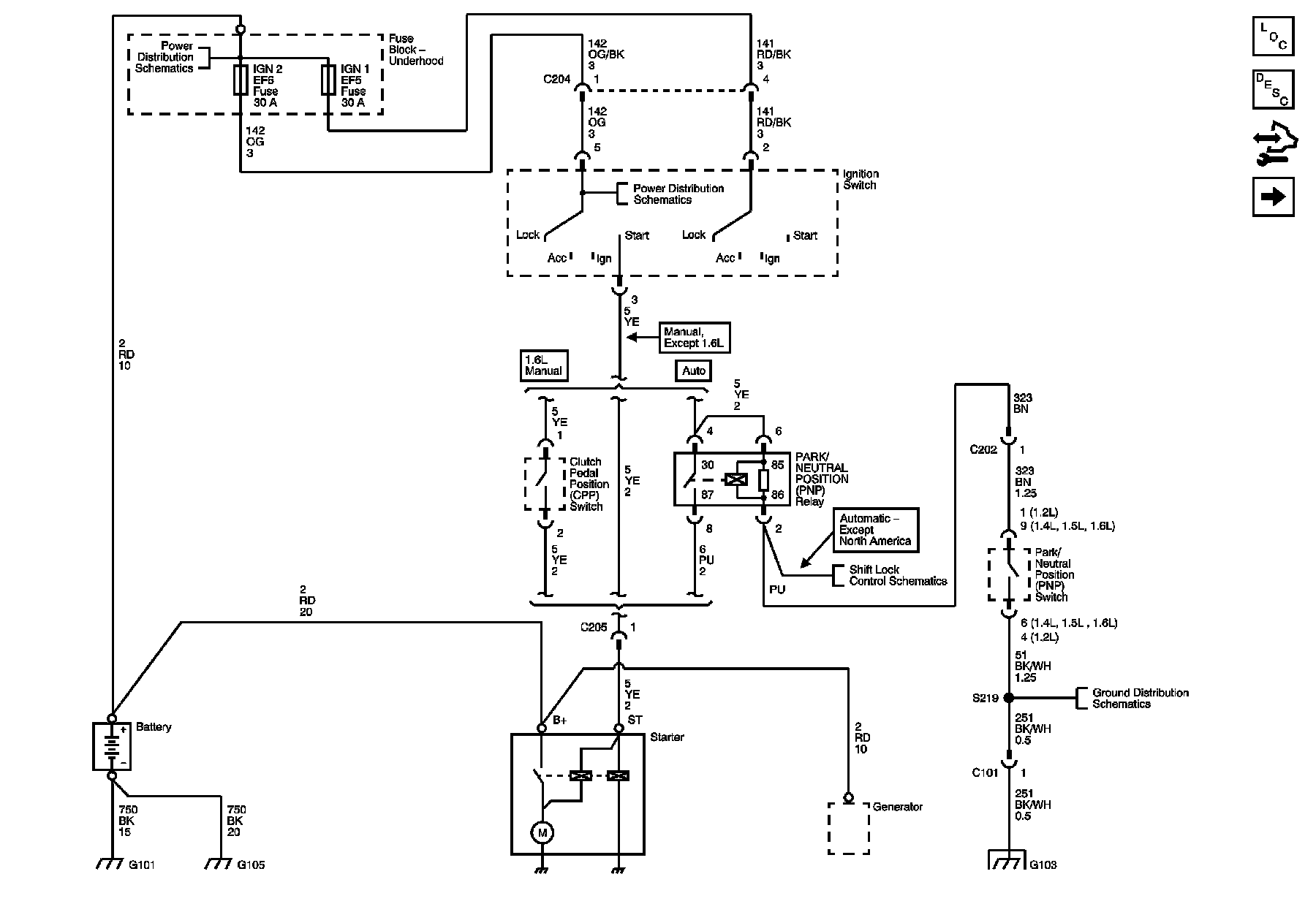

Starting System

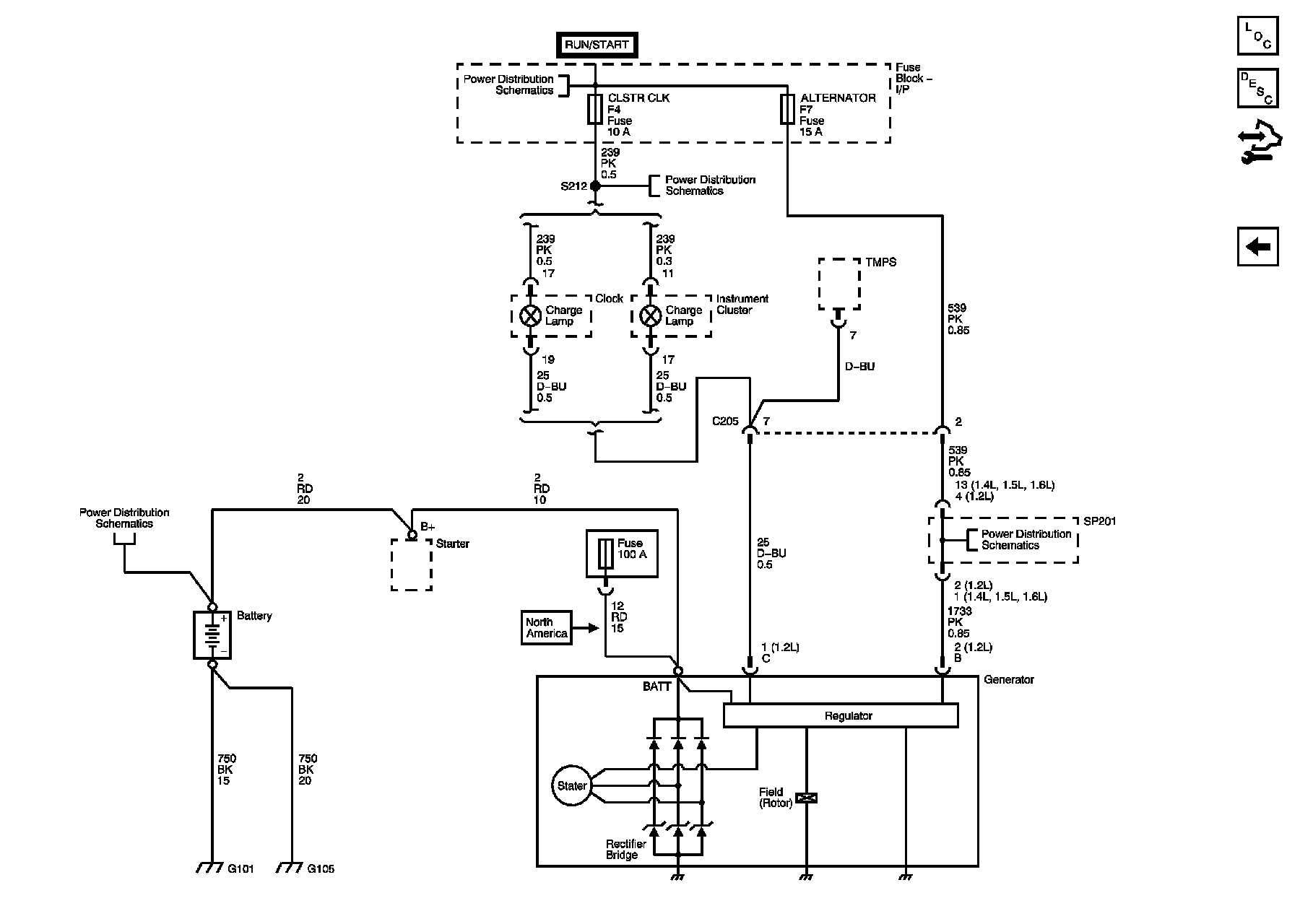

F4, F7, Generator
