Starting and Charging Diagrams (Notchback)
Starting and Charging Diagrams (Notchback)
Starting and Charging
Schematics (Notchback)

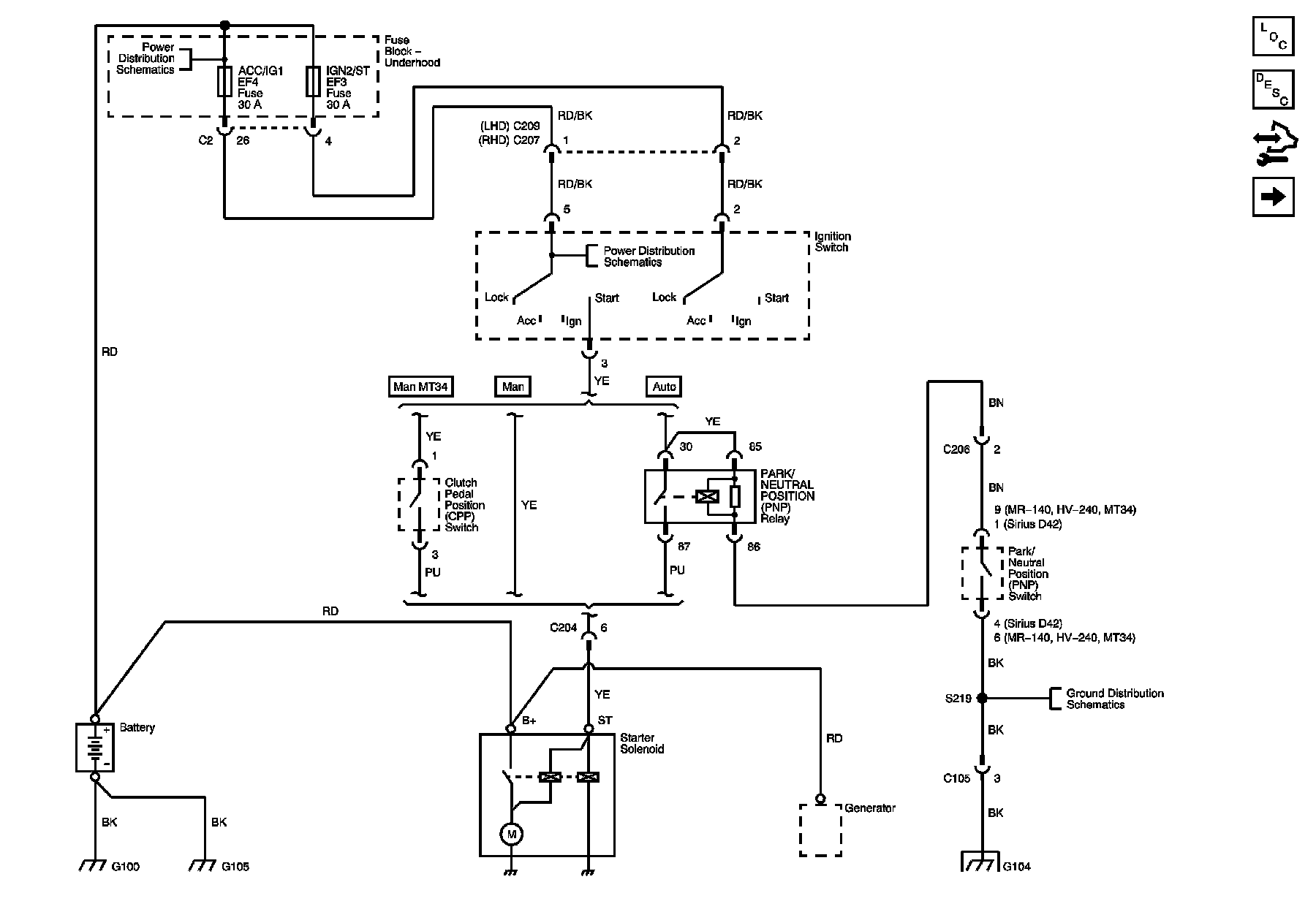

Starting System

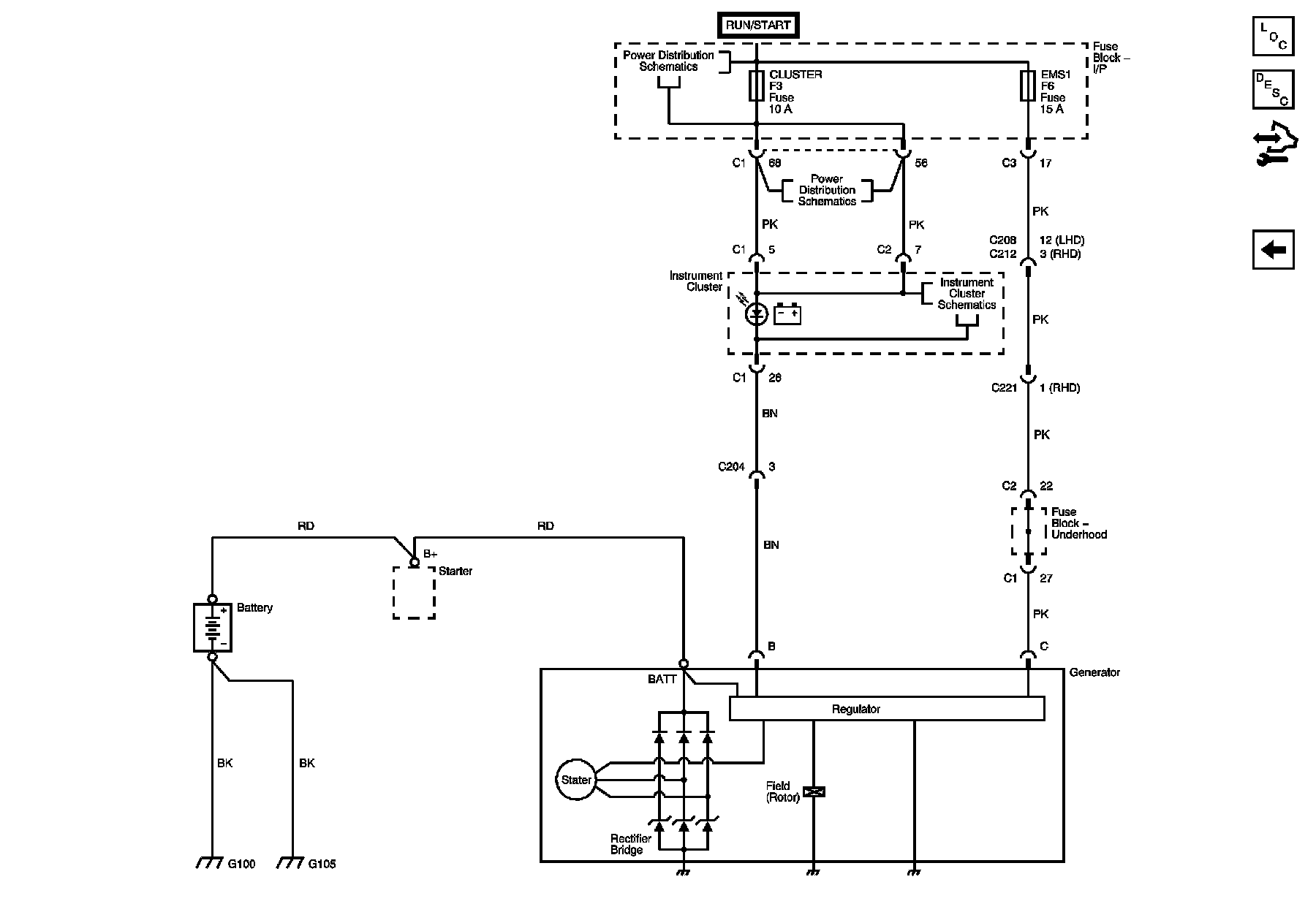

Charging System
