Air Temperature Actuator Replacement

Air Temperature Actuator Replacement

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.
2. Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Notchback) (Service and Repair)Instrument Panel Assembly Replacement (Hatchback) (Service and Repair).
3. Disconnect the electrical connector.

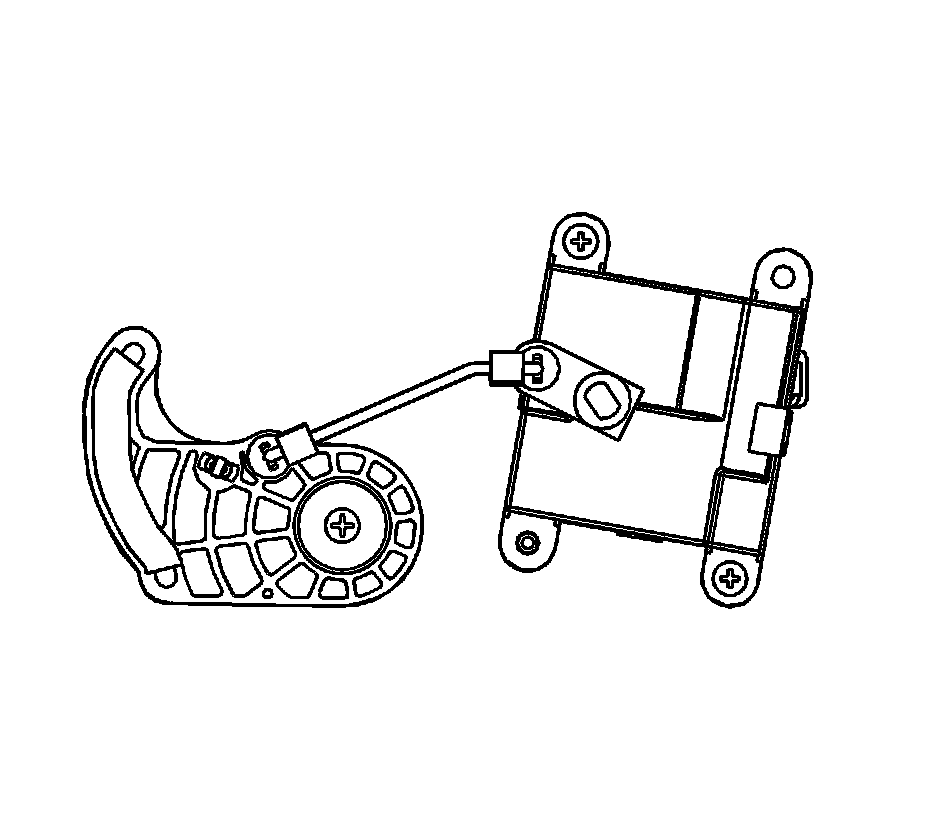

4. Remove the actuating rod by snapping it out of the lever with needle-nose pliers.
5. Remove the air temperature actuator retaining screws.
6. Remove the air temperature actuator.


Installation Procedure




1. Install the air temperature actuator.
2. Install the retaining screws and tighten.
3. Install the actuating rod.
4. Connect the electrical connector.
5. Install the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Notchback) (Service and Repair)Instrument Panel Assembly Replacement (Hatchback) (Service and Repair).
6. Connect the negative battery cable.
