Recirculation Actuator Replacement

Recirculation Actuator Replacement

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.
2. Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Notchback) (Service and Repair)Instrument Panel Assembly Replacement (Hatchback) (Service and Repair).

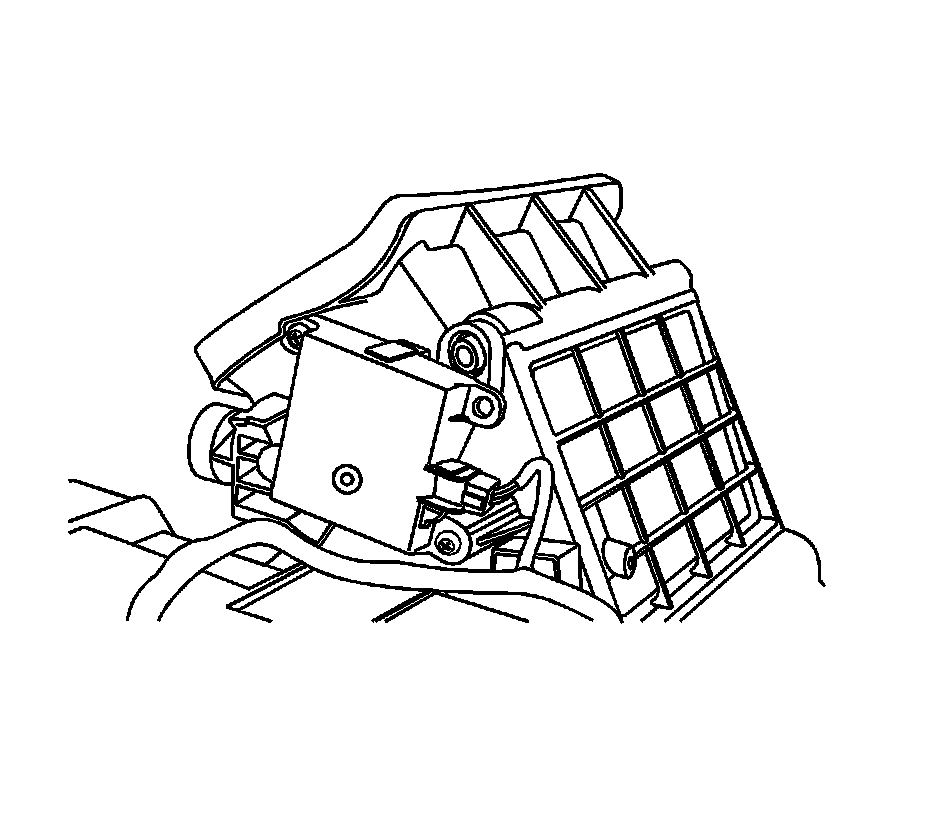

3. Disconnect the electrical connector.
4. Remove the motor retaining screws.
5. Remove the motor.


Installation Procedure




1. Install the motor.
2. Install the motor retaining bolts and tighten.
3. Connect the electrical connector.
4. Install the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Notchback) (Service and Repair)Instrument Panel Assembly Replacement (Hatchback) (Service and Repair)
5. Connect the negative battery cable.
