Mode Control Cable Replacement (Notchback)

Mode Control Cable Replacement (Notchback)

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.
2. Remove the audio system. Refer to Radio Replacement (Notchback) (Radio Replacement (Notchback))Radio Replacement (Hatchback) (Radio Replacement (Hatchback)).
3. Remove the HVAC controller. Refer to Heater and Air Conditioning Control Replacement (Hatchback) (Heater and Air Conditioning Control Replacement (Hatchback))Heater and Air Conditioning Control Replacement (Notchback) (Heater and Air Conditioning Control Replacement (Notchback)).

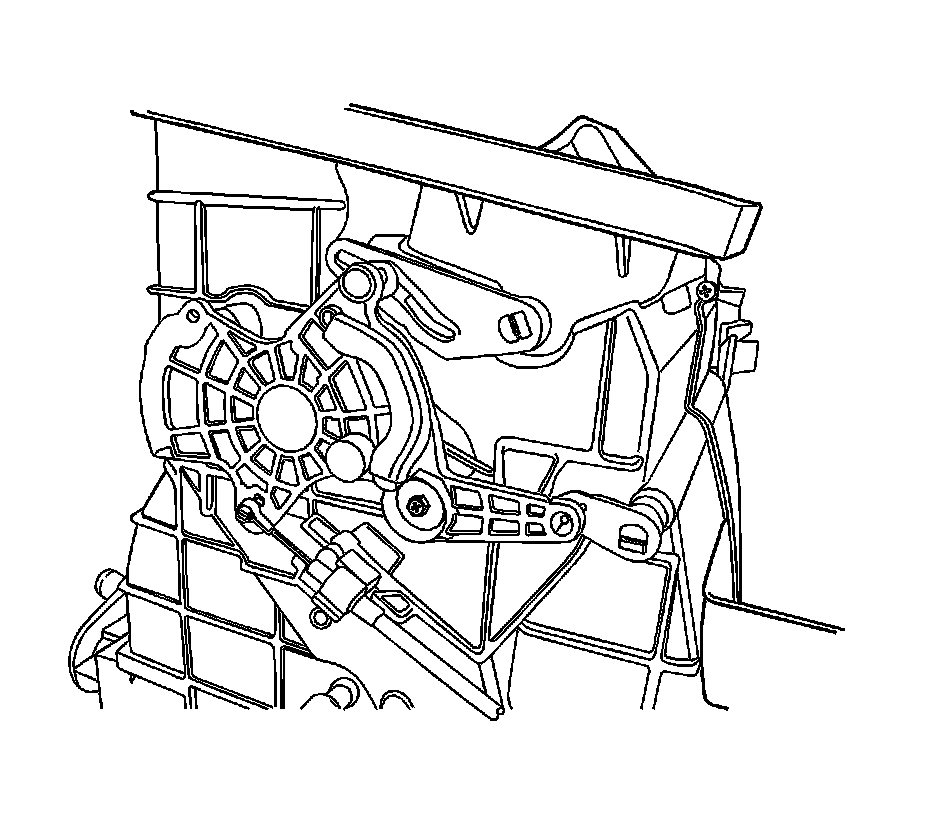

4. Disconnect the heater/defrost cable eyelet from the post.


Installation Procedure

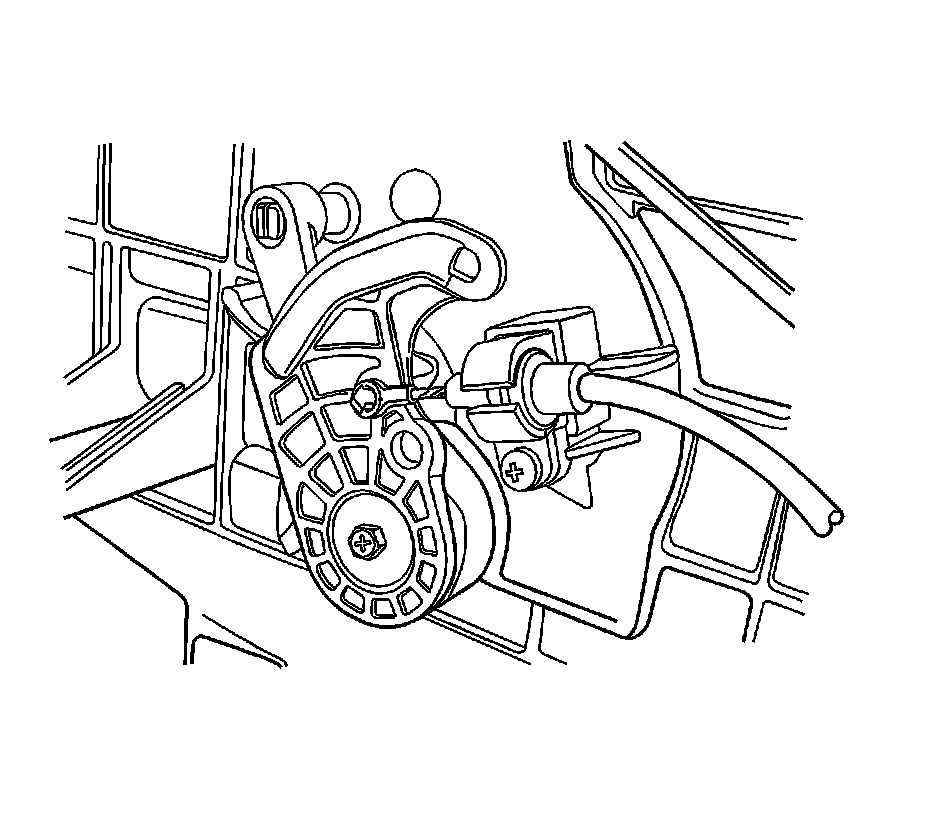

1. Connect the vehicle heater/defrost cable eyelet to the post and the cable housing to the slide.

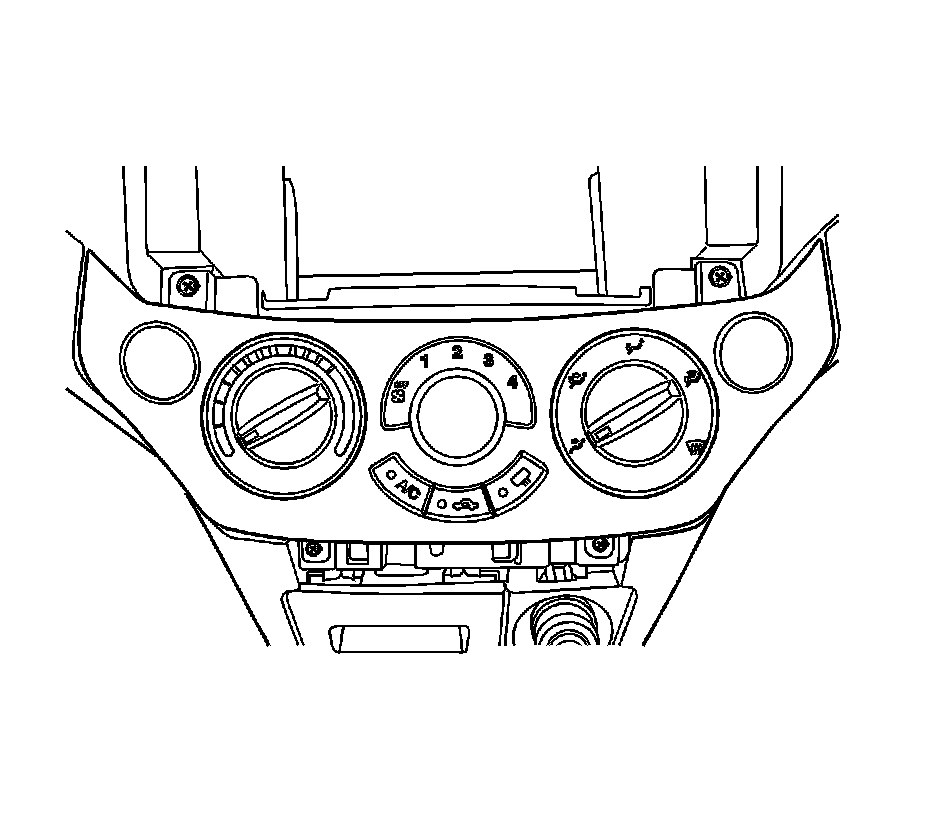

2. Install the HVAC controller. Refer to Heater and Air Conditioning Control Replacement (Hatchback) (Heater and Air Conditioning Control Replacement (Hatchback))Heater and Air Conditioning Control Replacement (Notchback) (Heater and Air Conditioning Control Replacement (Notchback)).
3. Install the audio system. Refer to Radio Replacement (Notchback) (Radio Replacement (Notchback))Radio Replacement (Hatchback) (Radio Replacement (Hatchback)).
4. Install the dash end panel.
5. Connect the negative battery cable.
6. Operate the heating/cooling systems to verify proper function.
