HVAC - Manual
>>
HVAC Diagrams (Hatchback)
HVAC Diagrams (Hatchback)
HVAC Schematics (Hatchback)

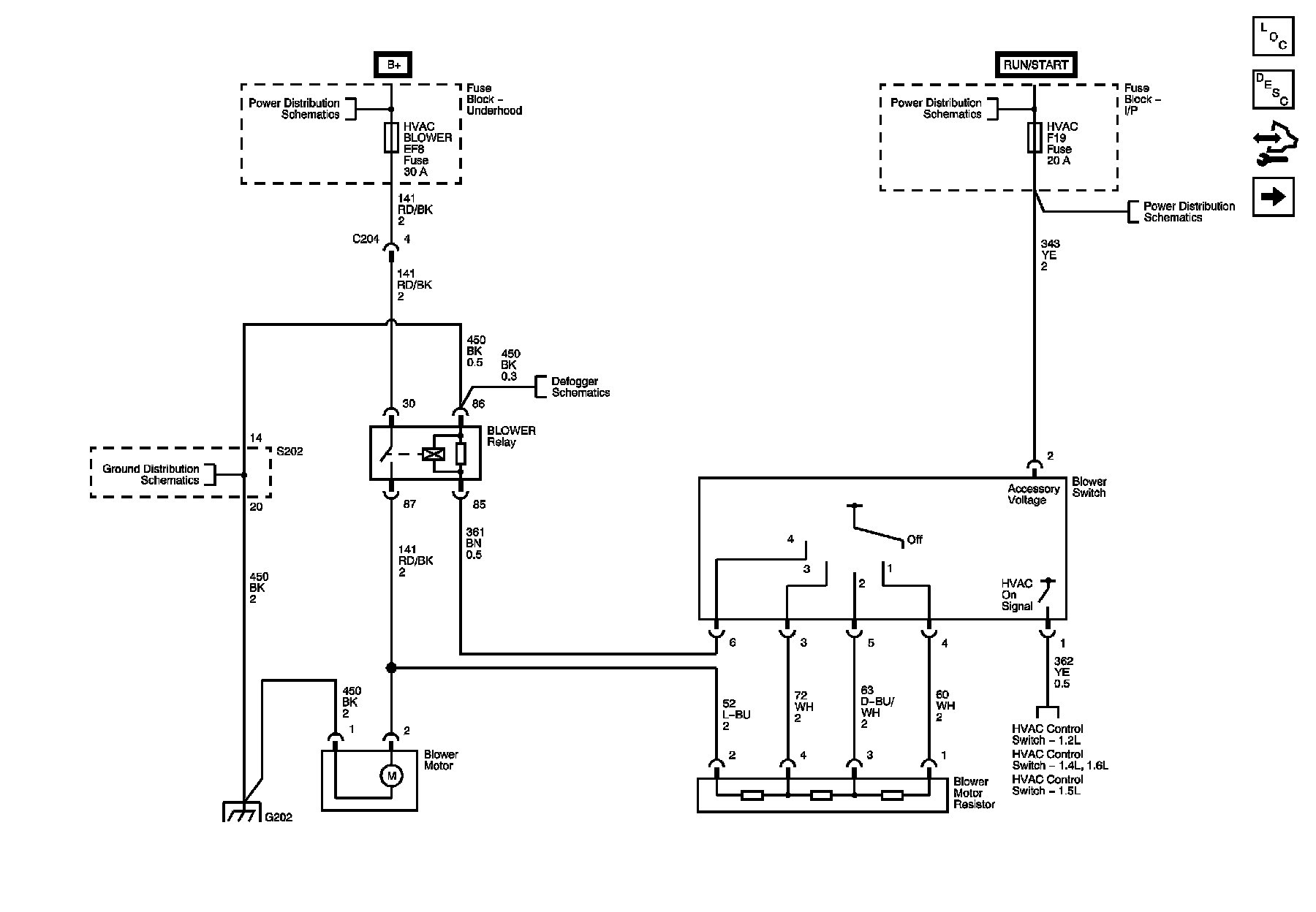

Manual - Blower Controls

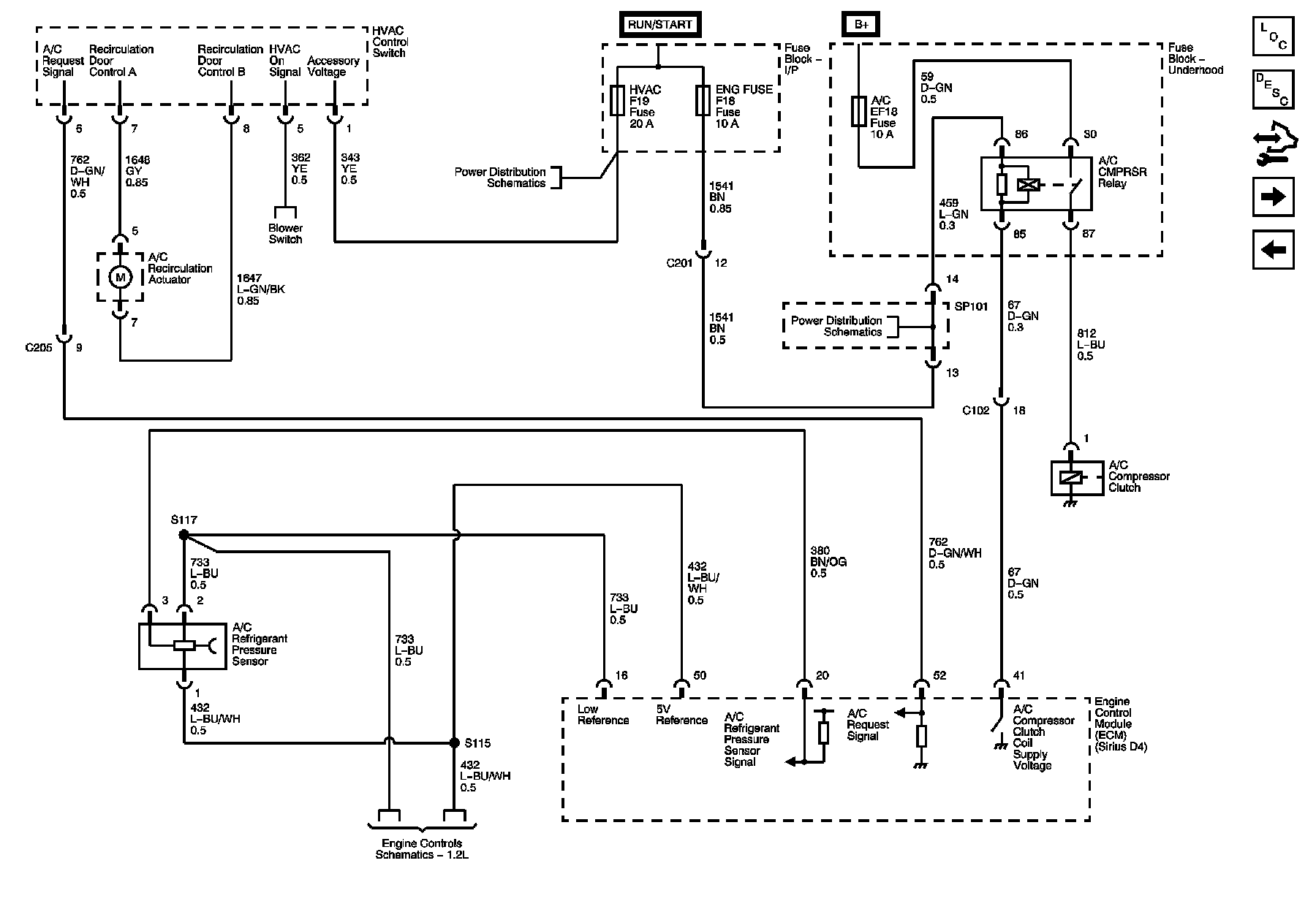

Compressor Controls - 1.2L

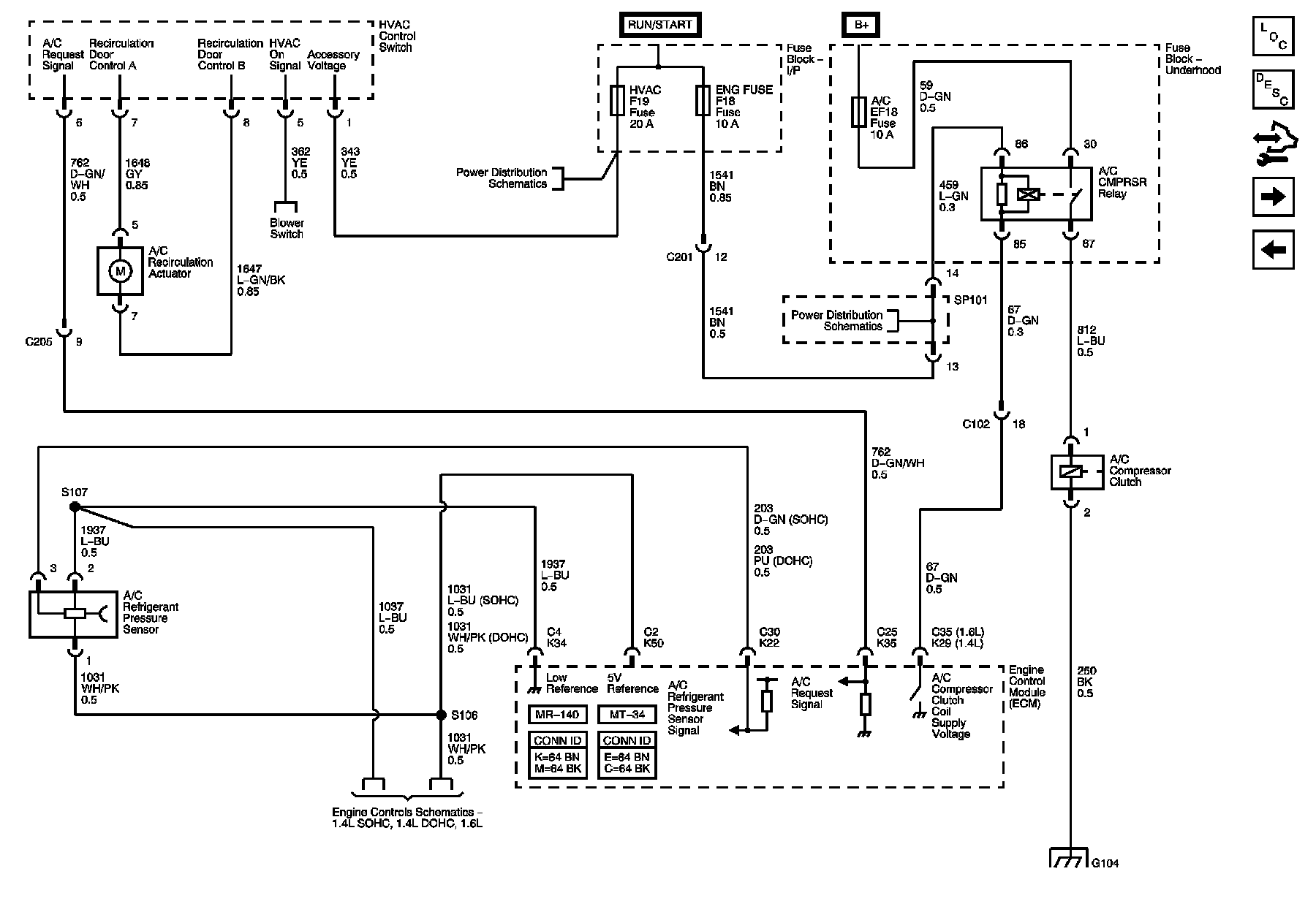

Compressor Controls - 1.4L, 1.6L

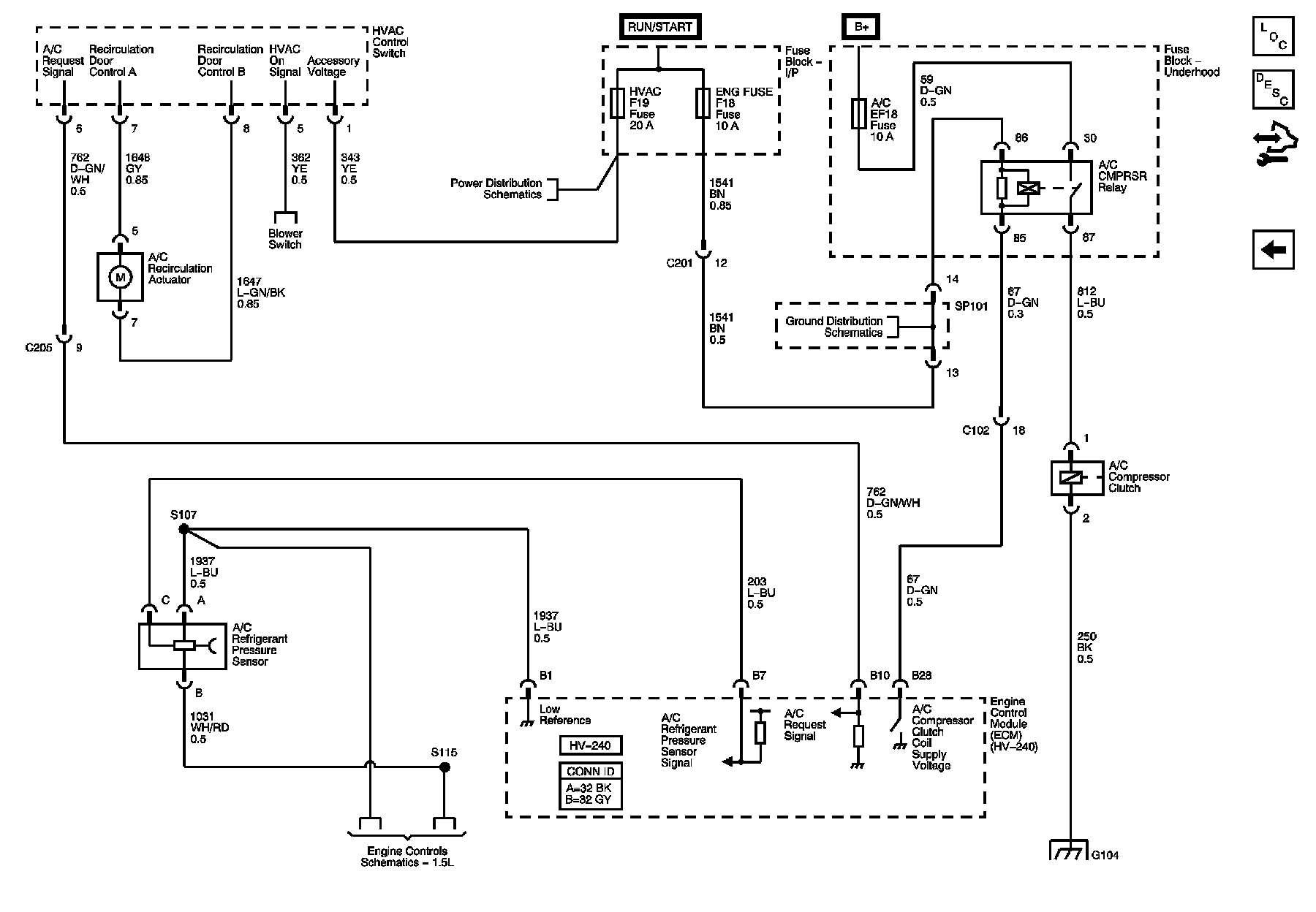

Compressor Controls - 1.5L
