Speedometer Head: Service and Repair

Speedometer Replacement (Hatchback)

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to Instrument Cluster Replacement (Notchback) (Instrument Cluster Replacement (Notchback))Instrument Cluster Replacement (Hatchback) (Instrument Cluster Replacement (Hatchback)).
3. Remove the instrument cluster lens and the face plate.

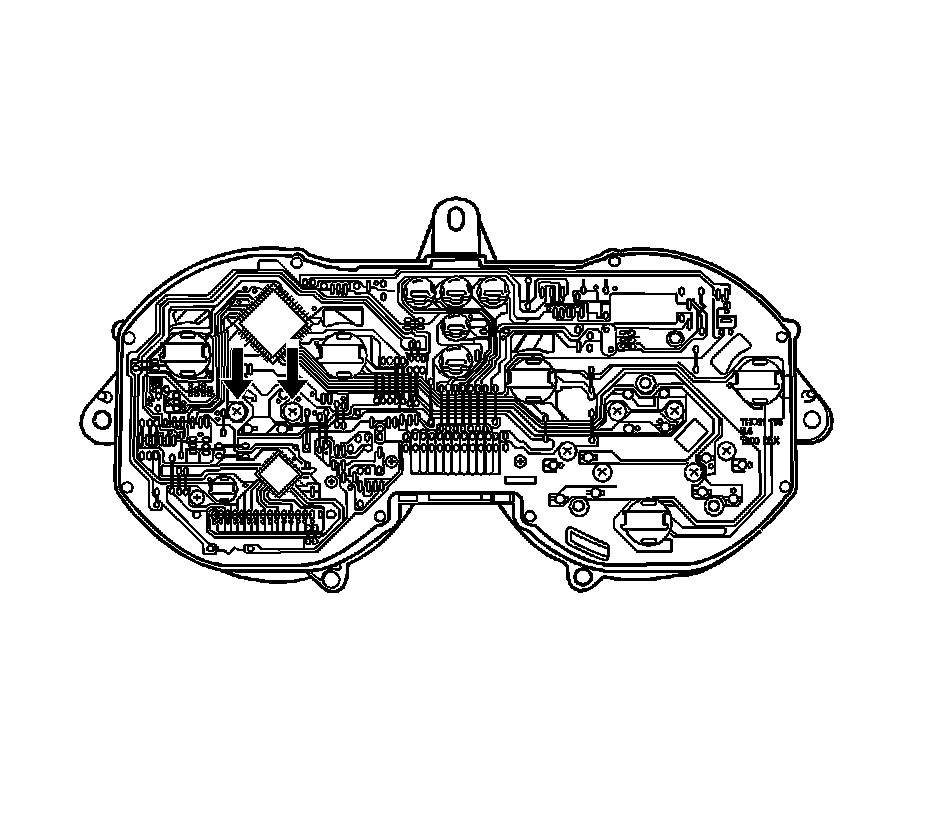

4. Remove the screws and the speedometer from the instrument cluster.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the speedometer to the instrument cluster with the screws.
2. Install the instrument cluster lens and the face plate.
3. Install the instrument cluster. Refer to Instrument Cluster Replacement (Notchback) (Instrument Cluster Replacement (Notchback))Instrument Cluster Replacement (Hatchback) (Instrument Cluster Replacement (Hatchback)).
4. Connect the negative battery cable.
