High Mount Stop Lamp Replacement (Hatchback)

High Mount Stop Lamp Replacement (Hatchback)

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.
2. Open the hatchback door.

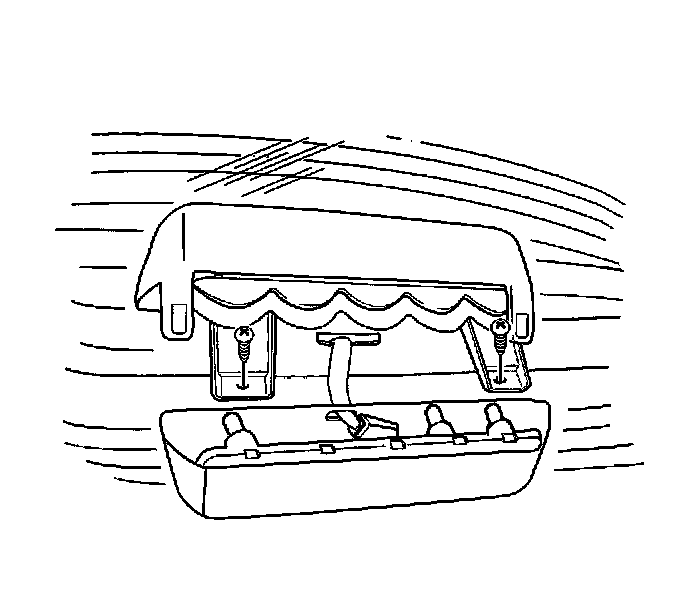

3. Pry open the center high-mounted stop lamp (CHMSL) access cover with a screwdriver.
4. Disconnect the electrical connector.
5. Remove the screws and the CHMSL.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the CHMSL with the screws.

Tighten the CHMSL mounting screws to 3 N.m (27 lb in).

2. Connect the electrical connector.
3. Close the CHMSL access cover.
4. Connect the negative battery cable.
