High Mount Stop Lamp Replacement (Notchback)

High Mount Stop Lamp Replacement (Notchback)

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.
2. Open the rear deck lid.

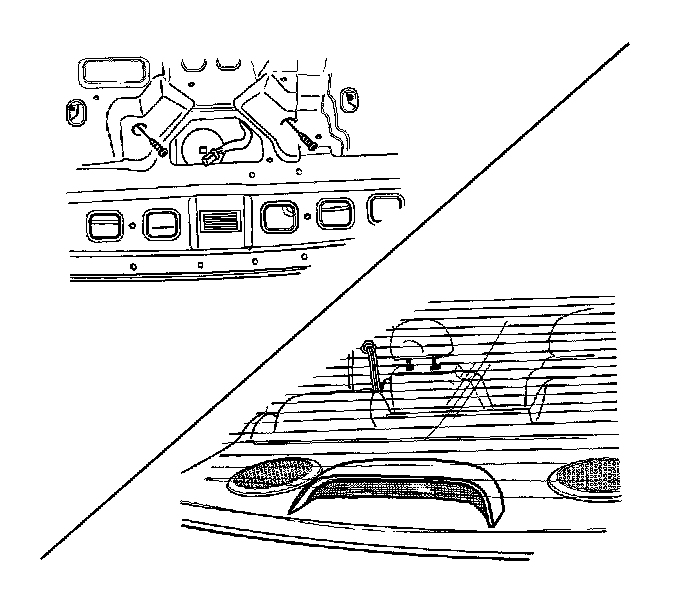

3. Remove the screws and the center high-mounted stop lamp (CHMSL).
4. Remove the CHMSL bulb.


Installation Procedure




1. Install the CHMSL bulb.
2. Install the CHMSL with the screws.
3. Connect the negative battery cable.
