Exterior Lights Diagram 1 (Hatchback)

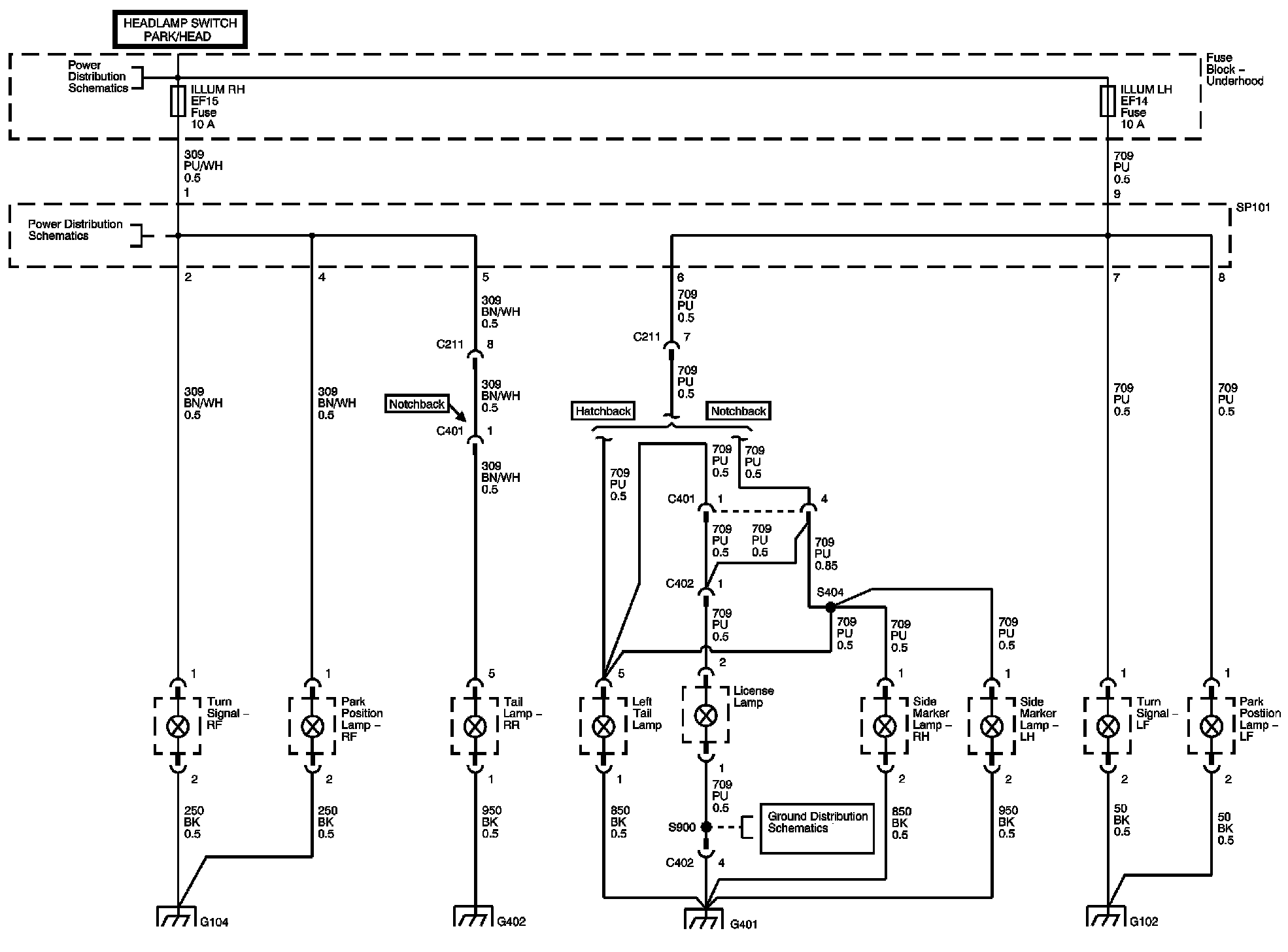

Exterior Lights Schematics (Hatchback)

Park Lamps

Exterior Lights Diagram 1 (Hatchback):
