Exterior Lights Diagram 2 (Hatchback)

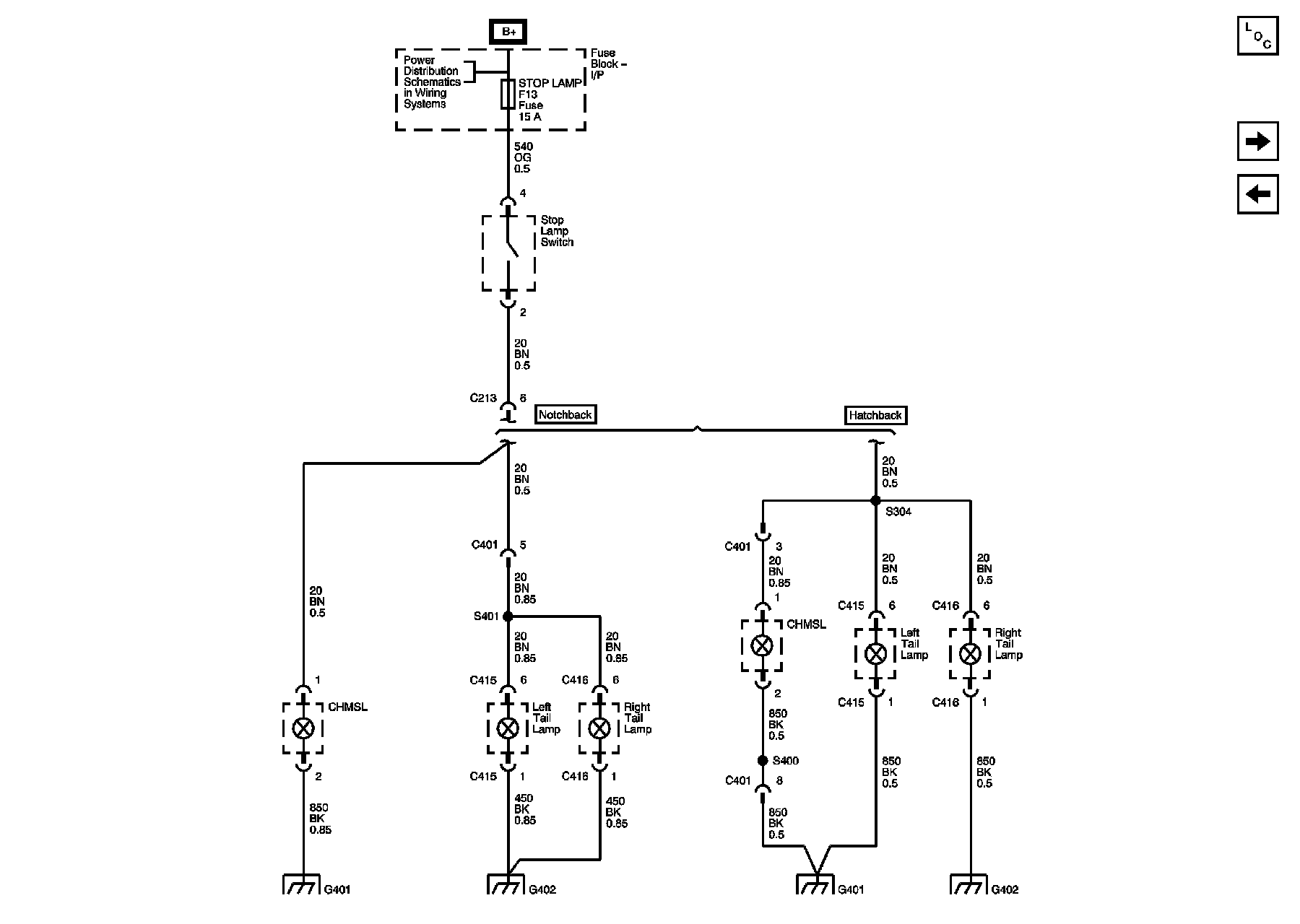

Exterior Lights Schematics (Hatchback)

Stop Lamps

Exterior Lights Diagram 2 (Hatchback):
