Ignition Lock Diagrams (Notchback)



Ignition Lock Schematics (Notchback)

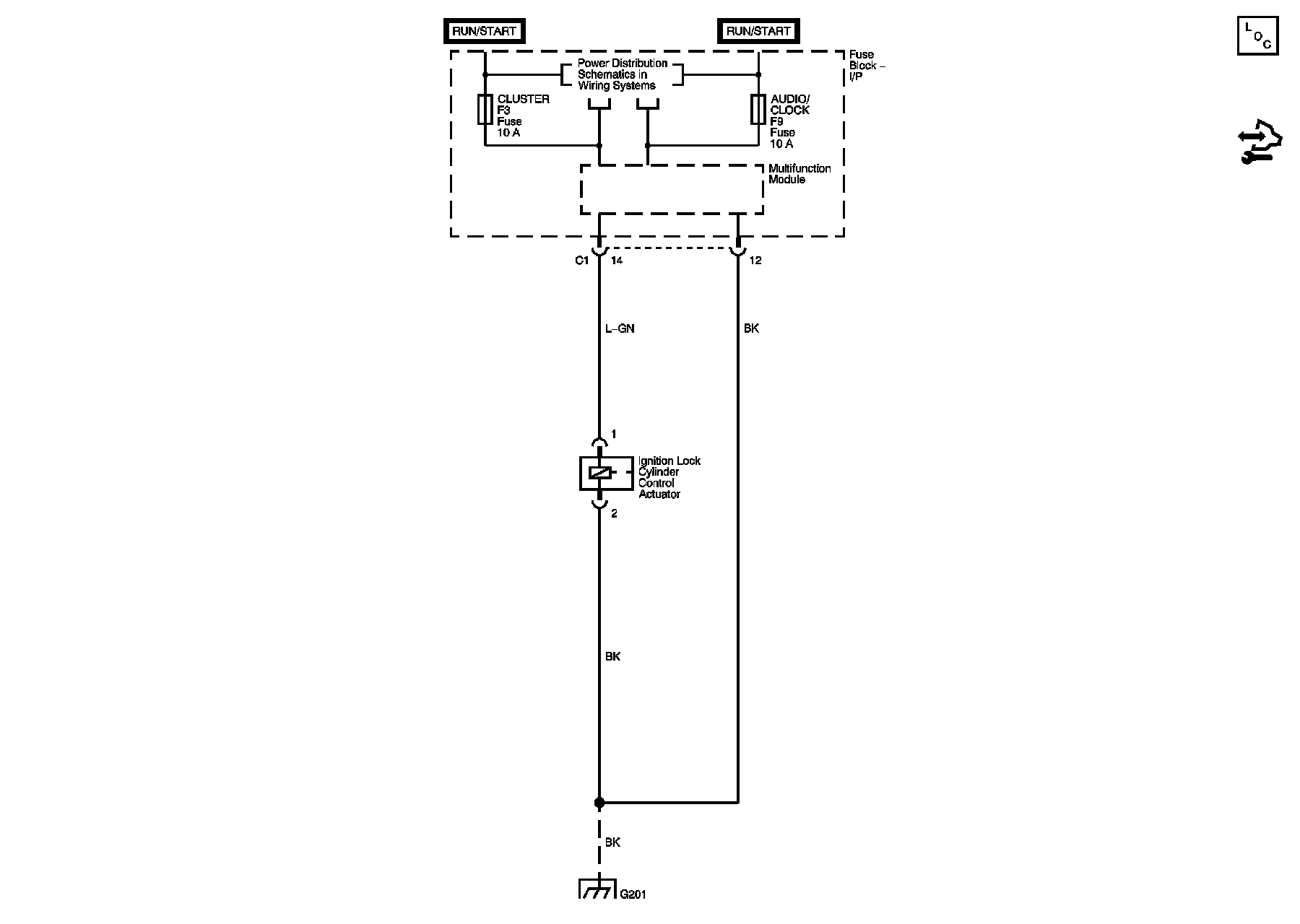

Ignition Lock Diagram (Notchback):
