Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams (Hatchback)
>>
Power Distribution Diagram 9 (Hatchback)
Power Distribution Diagram 9 (Hatchback)
Power Distribution Schematics (Hatchback)
Ignition Switch
, ABS,
Alternator
, ECM/TCM, Wipers, HVAC, Fuses

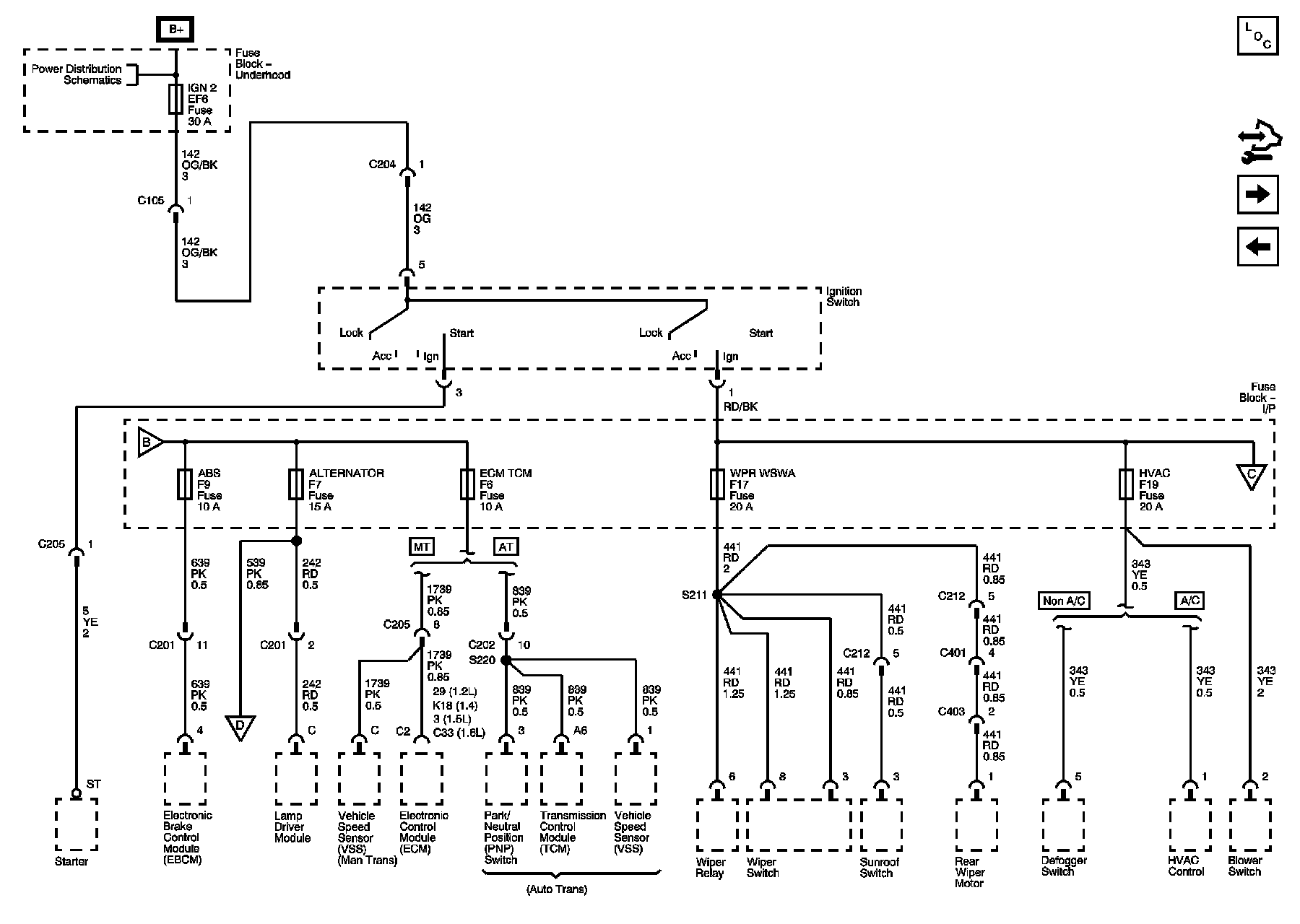

Power Distribution Diagram 9 (Hatchback):
