Power Distribution Diagrams (Notchback)
>>
Power Distribution Diagram 10 (Notchback)
Power Distribution Diagram 10 (Notchback)
Power Distribution Schematics (Notchback)

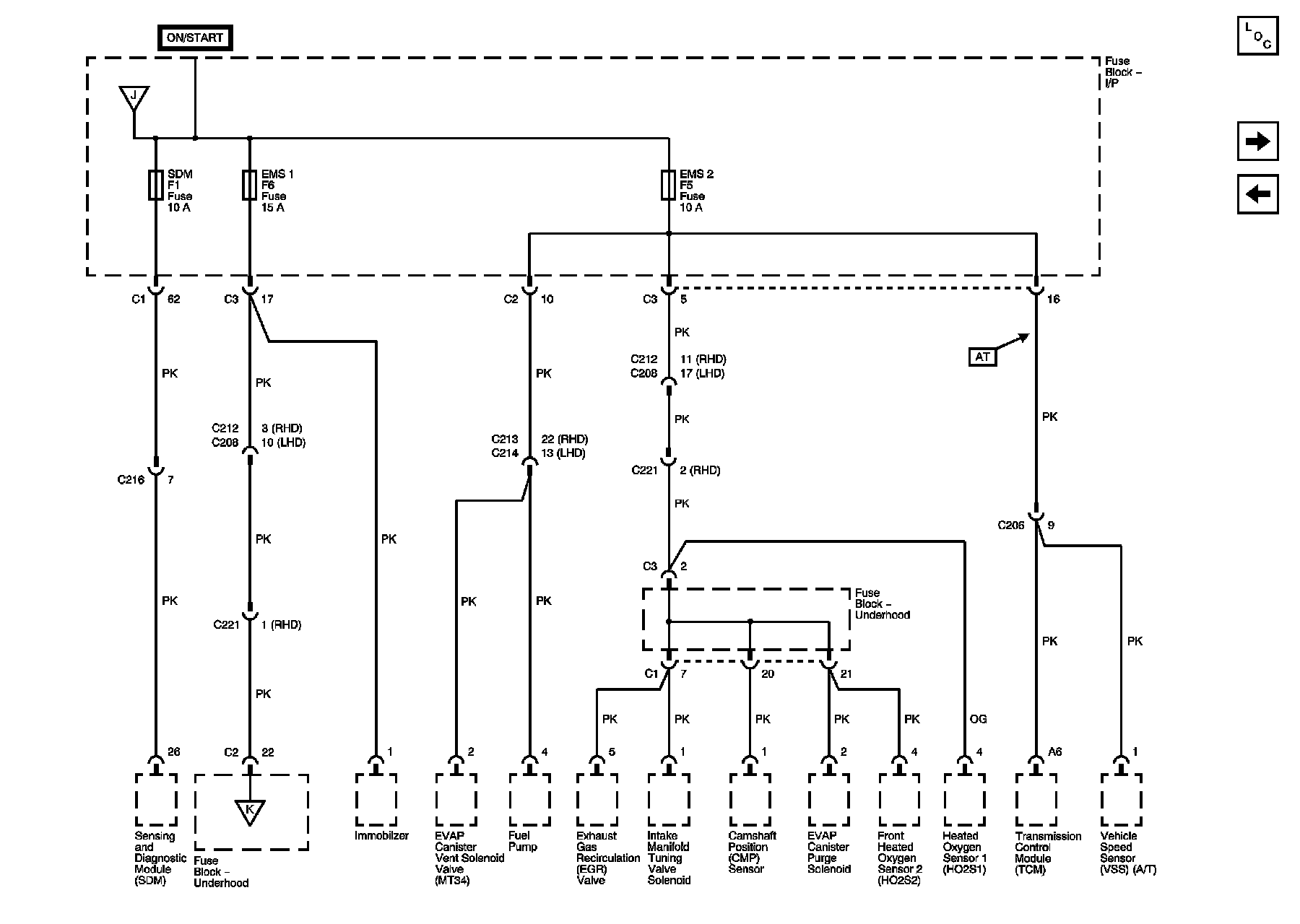

SDM, EMS 1, EMS 2 Fuses
Power Distribution Diagram 10 (Notchback):
