Power Distribution Diagram 6 (Notchback)



Power Distribution Schematics (Notchback)

Audio, RKE, Mirror Defog, Fuses

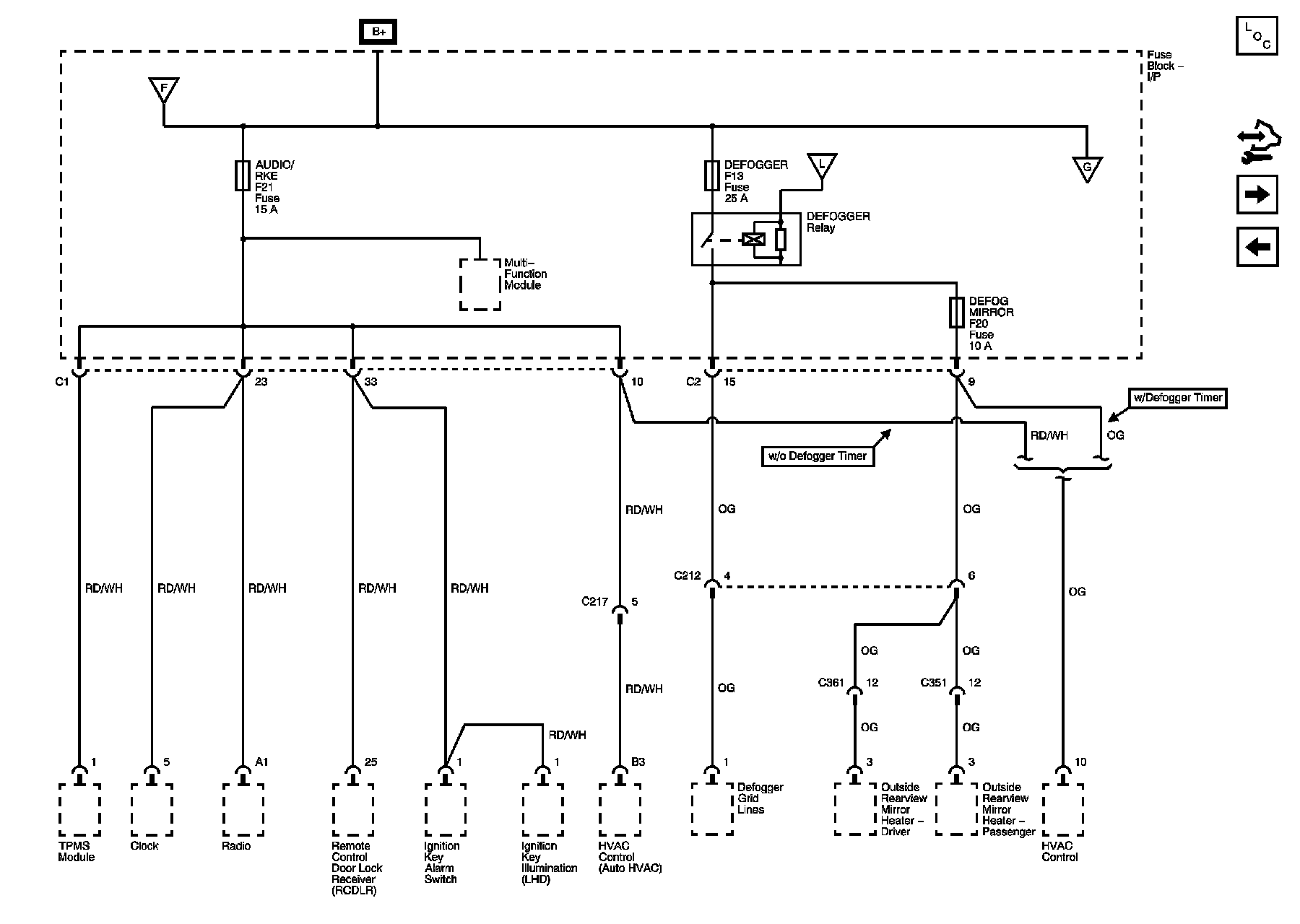

Power Distribution Diagram 6 (Notchback):
