Chevrolet
>>
2008
>>
Aveo L4-1.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams (Notchback)
>>
Power Distribution Diagram 7 (Notchback)
Power Distribution Diagram 7 (Notchback)
Power Distribution Schematics (Notchback)
HORN, WIPER, DOOR LOCK, RR FOG Fuses and Relays

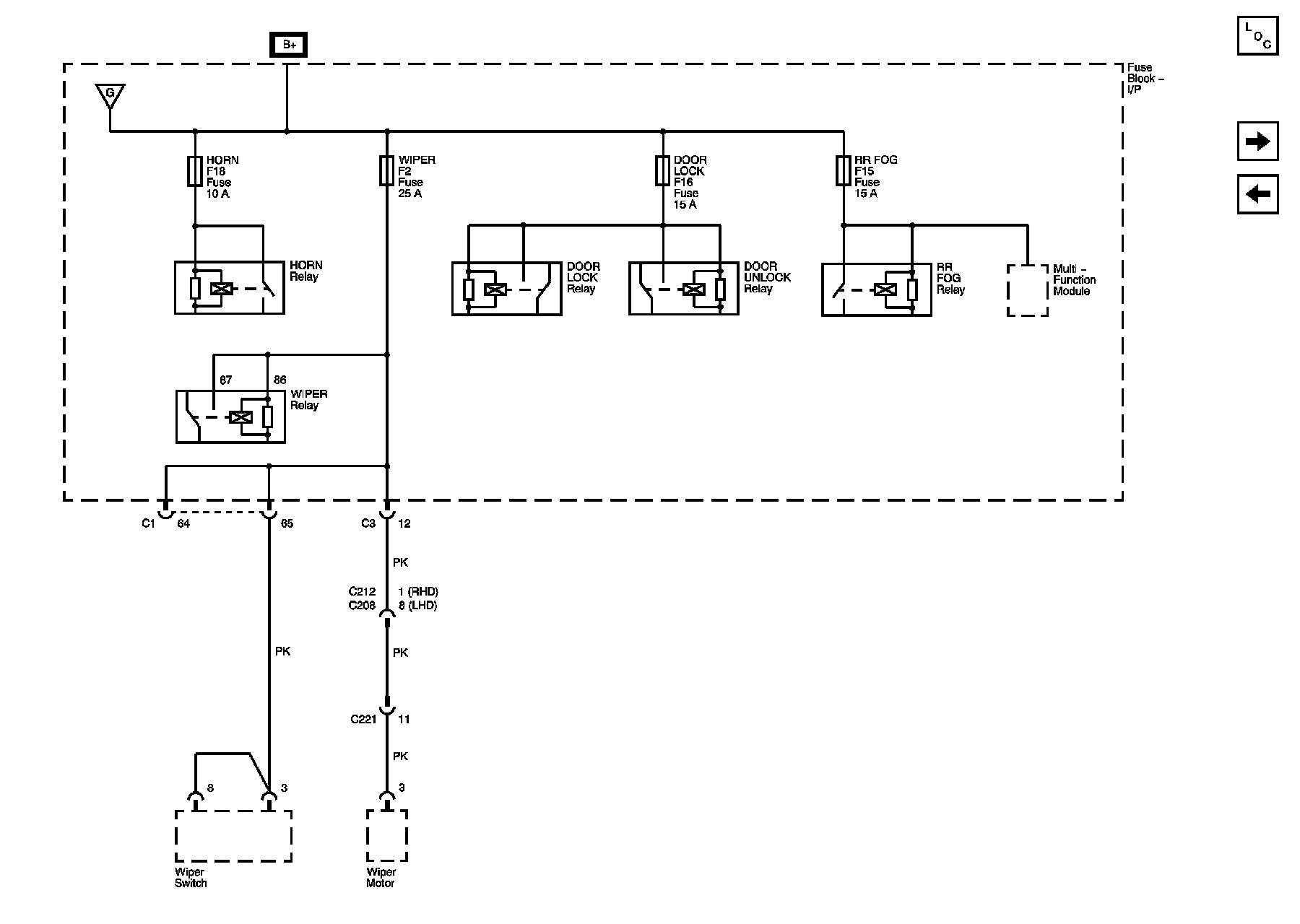

Power Distribution Diagram 7 (Notchback):
