Canister Purge Solenoid: Service and Repair

Evaporative Emission Canister Purge Solenoid Valve Replacement

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.
2. Disconnect the evaporative emission (EVAP) canister purge solenoid connector.
3. Disconnect the vacuum hoses from the EVAP canister purge solenoid.

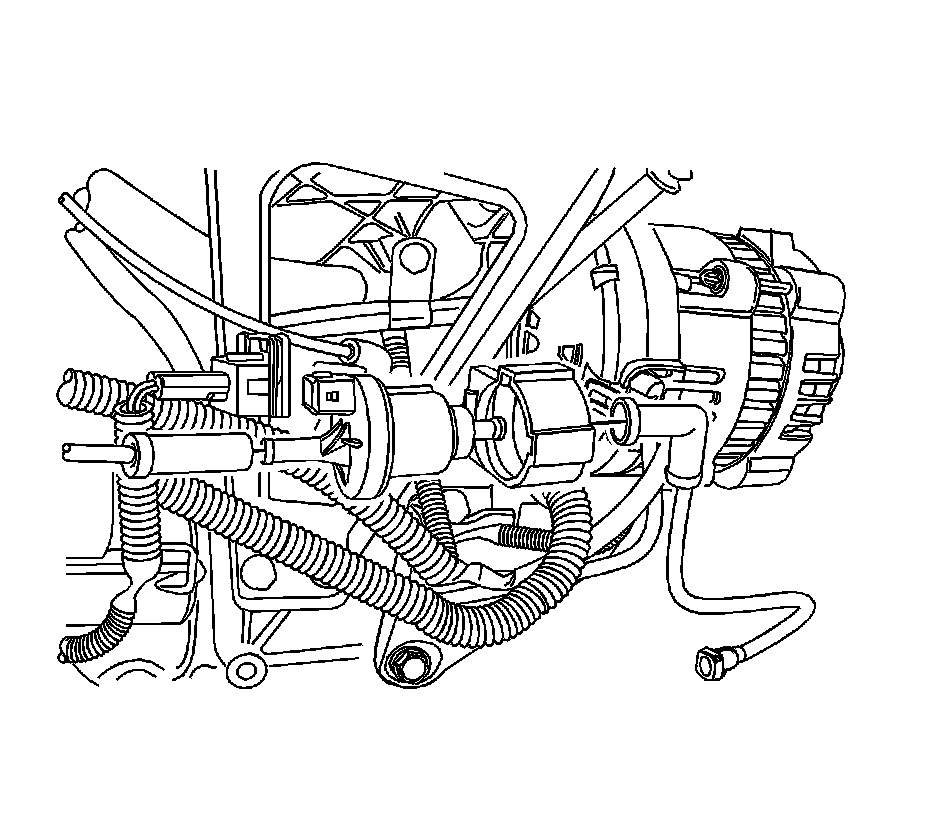

4. Remove the EVAP canister purge solenoid from the intake manifold.


Installation Procedure




1. Attach the EVAP canister purge solenoid to the intake manifold.
2. Connect the vacuum hoses to the EVAP canister purge solenoid.
3. Connect the EVAP canister purge solenoid connector.
4. Connect the negative battery cable.
