SIR Diagrams (North American (Hatchback))

SIR Schematics (North American (Hatchback))

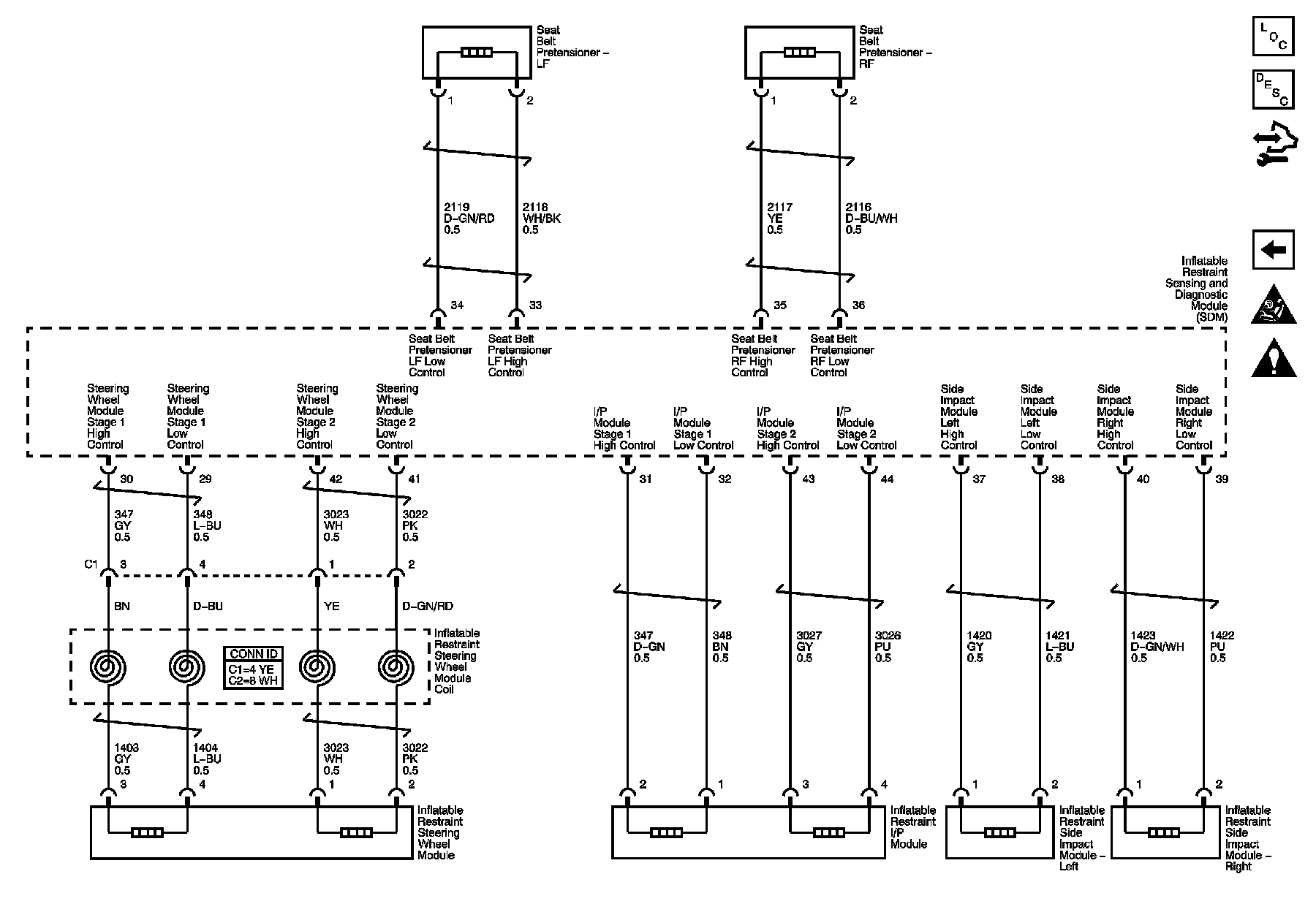

1 of 2

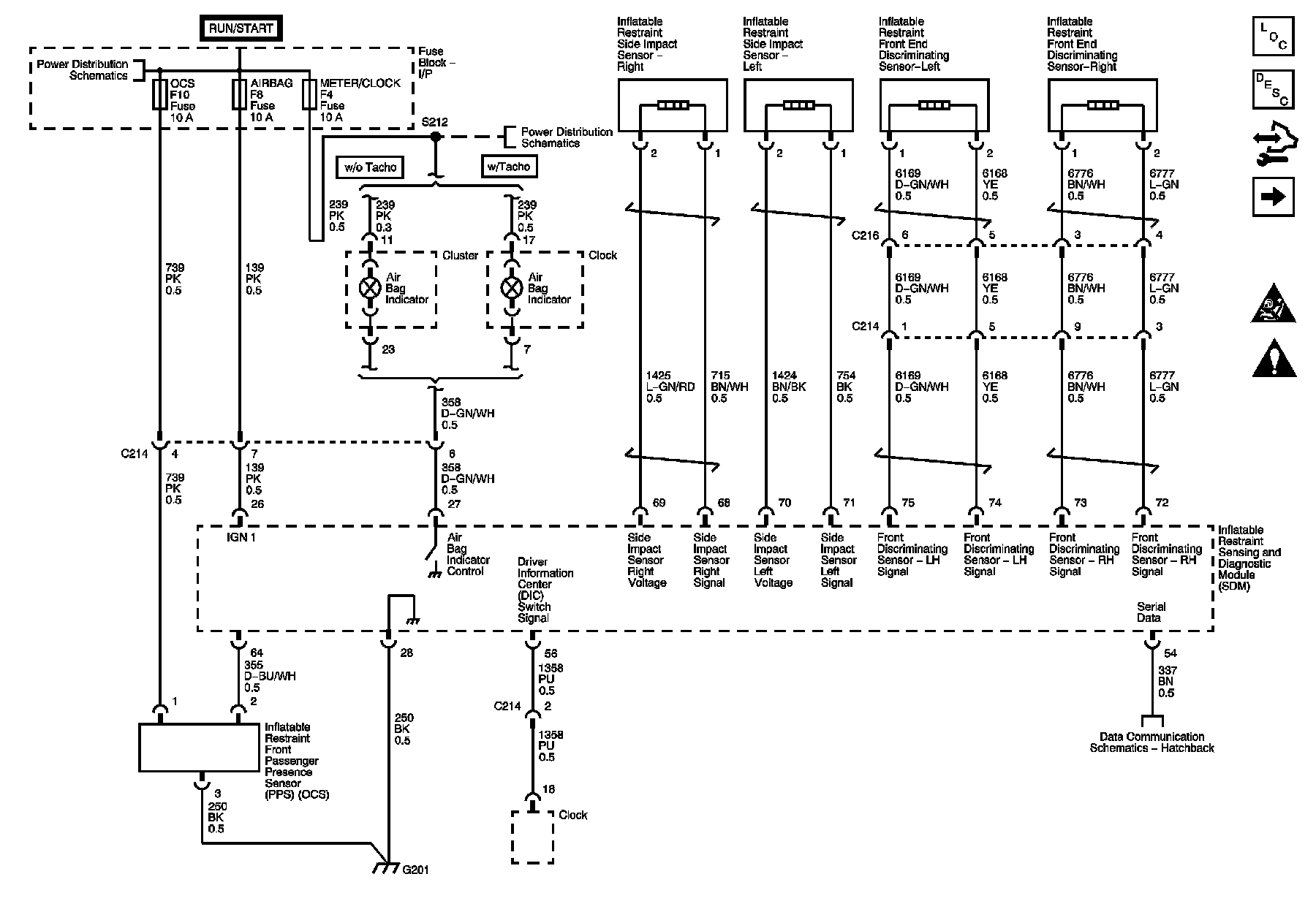

2 of 2
