Child Restraint Tether Anchor Replacement (Four Door Except North America)

Child Restraint Tether Anchor Replacement (Four Door Except North America)

Removal Procedure

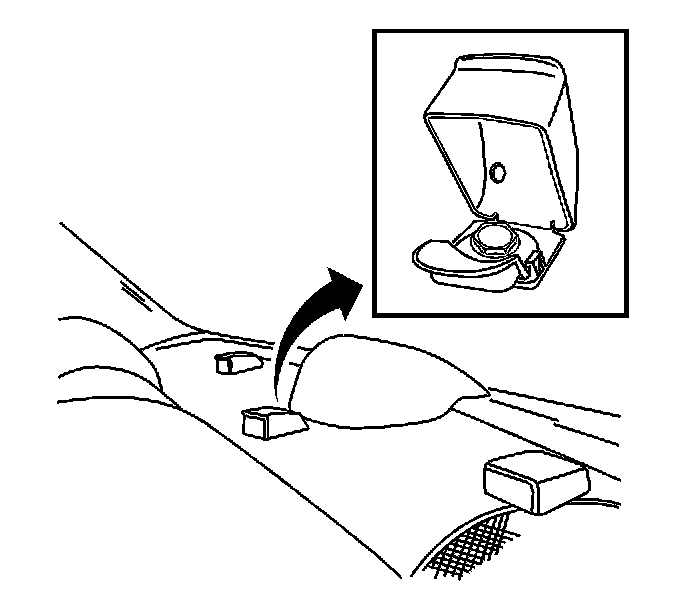

1. Open the tether anchor access cap.
2. Remove the bolt and the tether anchor.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the tether anchor with the bolt.

Tighten the child seat tether anchor bolt to 25 N.m (18 lb ft).

2. Close the tether anchor access cap.
