Rear Seat Belt Buckle Replacement

Rear Seat Belt Buckle Replacement

Removal Procedure




1. Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement).

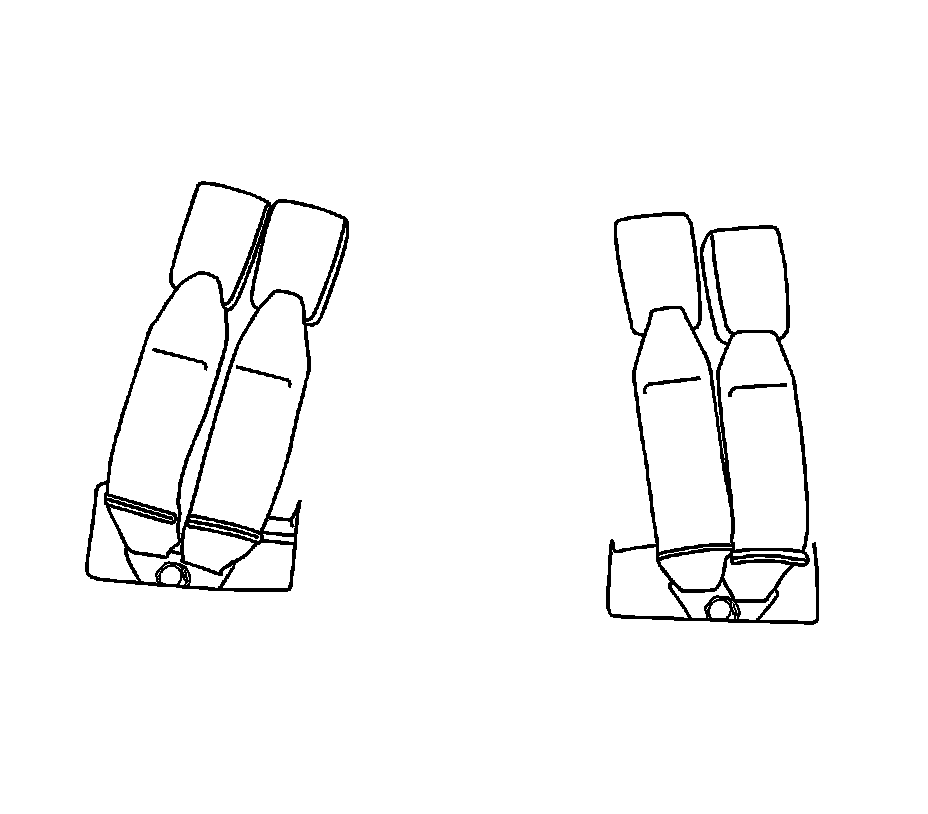

2. Remove the bolt and the seat belt buckle.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the seat belt buckle and secure with bolt.

Tighten the seat belt retractor bolt to 38 N.m (28 lb ft).

2. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement (Rear Seat Cushion Replacement).
