Front Seat Belt Replacement

Front Seat Belt Replacement

Repair Procedure

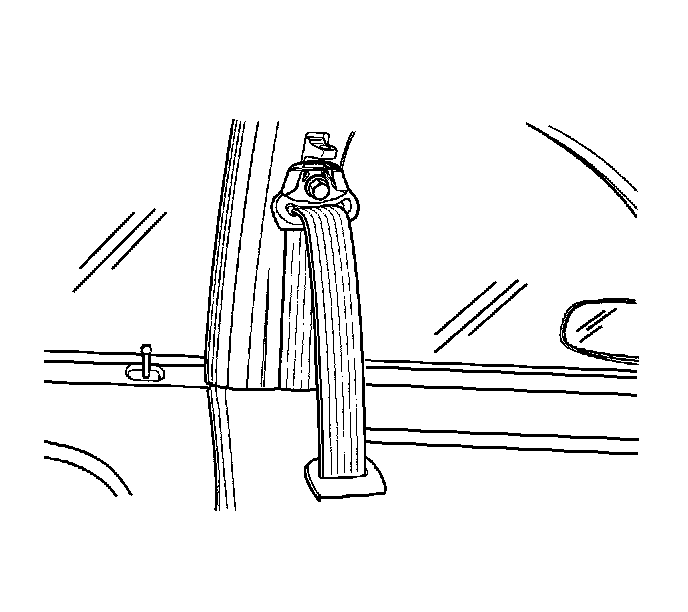

1. Remove the bolt cover, bolt and the seat belt anchor on the upper center pillar.




2. Remove the lower center pillar trim panel. Refer to Center Pillar Lower Trim Panel Replacement (Notchback) (Service and Repair)Center Pillar Lower Trim Panel Replacement (Hatchback) (Service and Repair).

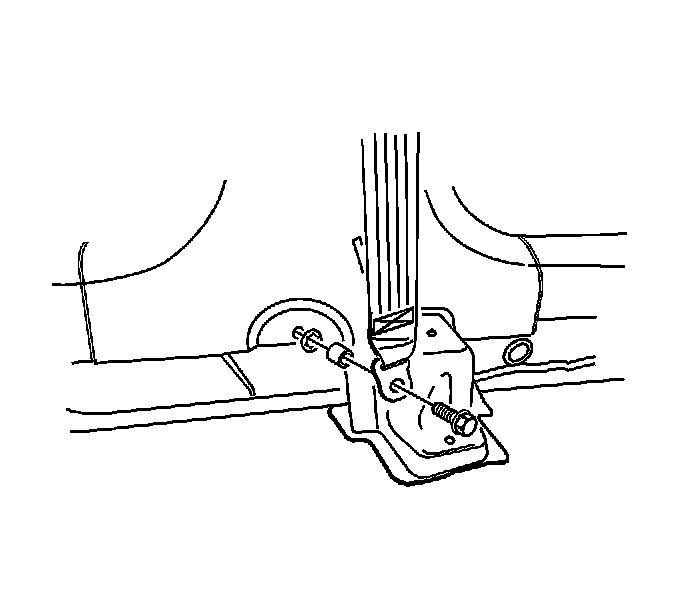

3. Remove the bolt and the seat belt anchor on the lower center pillar.

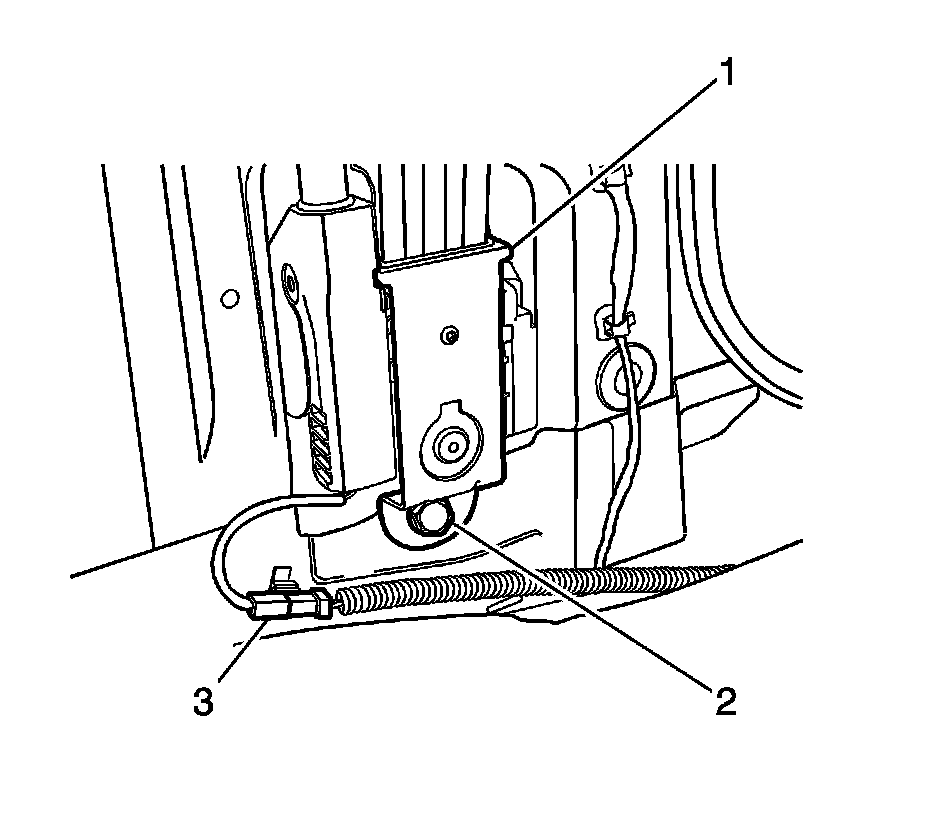

4. Disconnect the pretensioner connector (3).
5. Remove the bolt (2) and the seat belt retractor (1).


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the seat belt retractor (1) with the bolt (2).

Tighten the seat belt retractor bolt to 38 N.m (28 lb ft).

2. Connect the pretensioner connector (3).




3. Install the seat belt anchor to the upper center pillar with the bolt.

Tighten the seat belt anchor bolt to 38 N.m (28 lb ft).

4. Install the bolt cover.




5. Install the lower center pillar trim panel. Refer to Center Pillar Lower Trim Panel Replacement (Notchback) (Service and Repair)Center Pillar Lower Trim Panel Replacement (Hatchback) (Service and Repair).
6. Install the seat belt anchor to the lower center pillar with the bolt.

Tighten the seat belt anchor bolt to 38 N.m (28 lb ft).
