Seat Belt Replacement - Center Rear

Seat Belt Replacement - Center Rear

Removal Procedure




1. Pull the rear seat knob and fold the rear seat cushion.

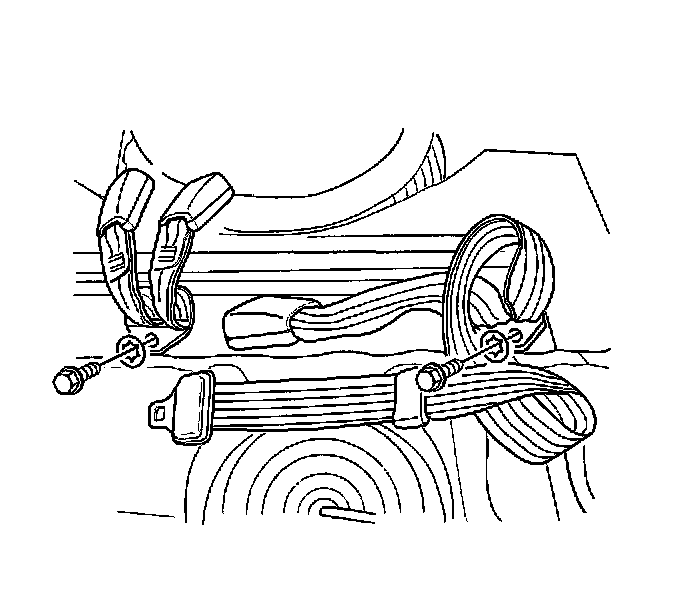

2. Remove the bolts and the seat belt anchors.
3. Remove the left rear cargo area trim panel and remove the bolt from the rear center seat belt retractor.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the seat belt anchors with the bolts.

Tighten the seat belt anchor bolts to 38 N.m (28 lb ft).

2. Install the rear center seat belt retractor with the bolt.

Tighten the rear center seat belt retractor bolt to 38 N.m (28 lb ft).

3. Install the rear cargo area trim panel and unfold the rear seat.
