Oil Pump Assemble

Oil Pump Assemble

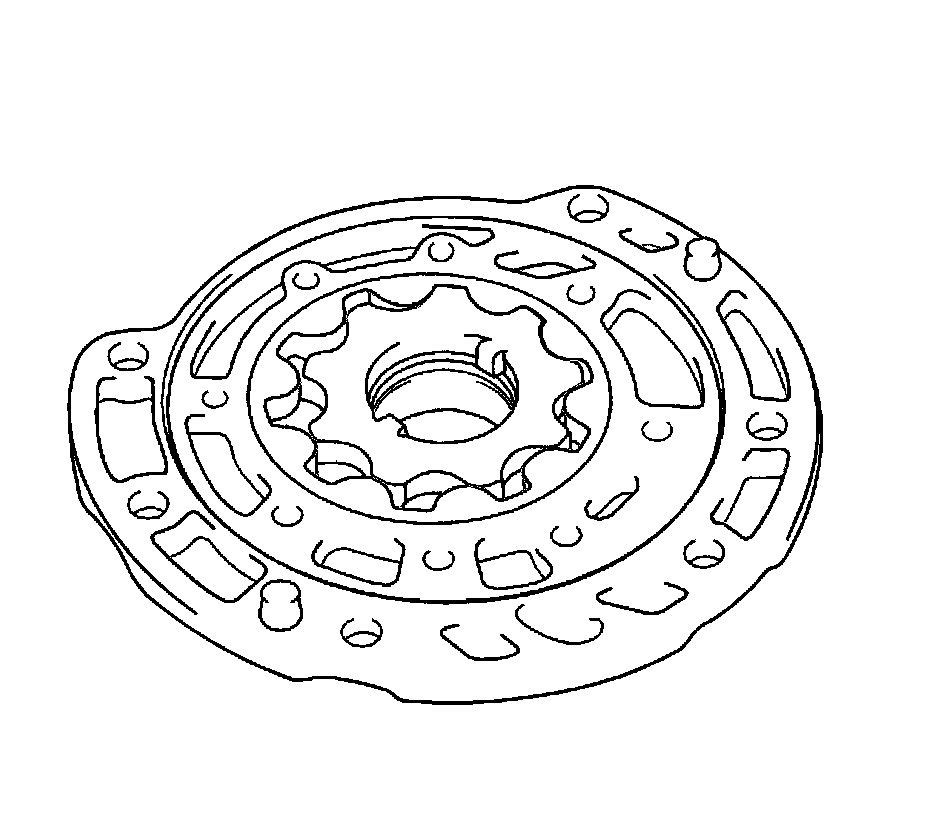

1. Install the oil pump drive gear and driven gear.




2. Align the stator shaft with each bolt hole.

Notice: Refer to Fastener Notice (Fastener Notice).

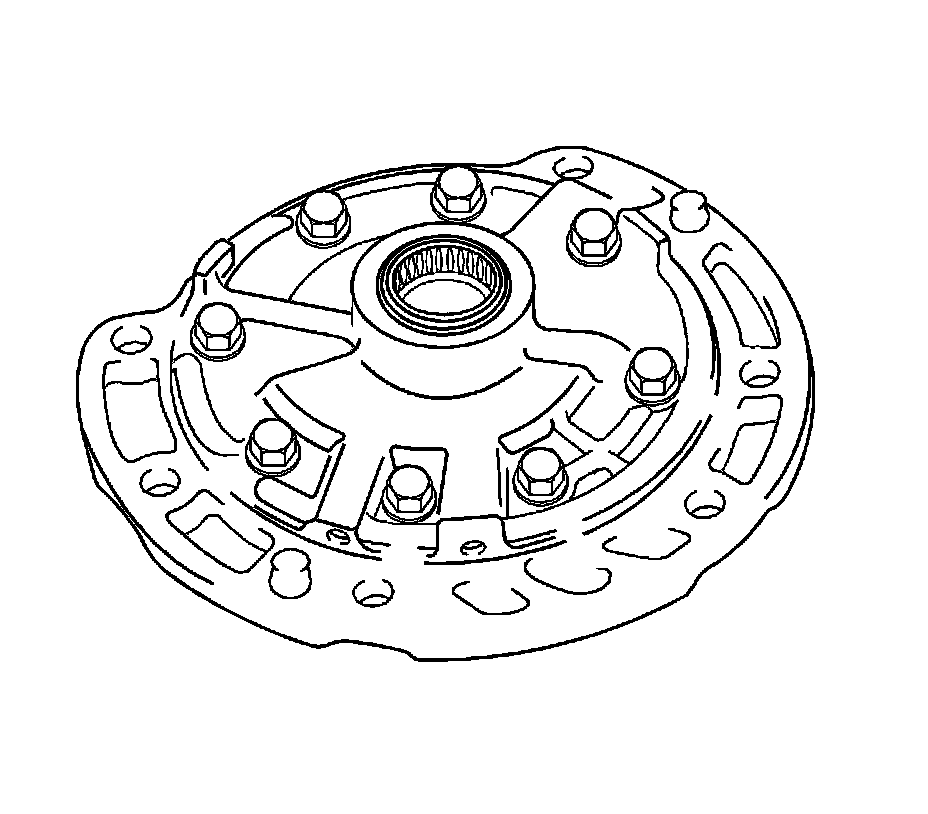

3. Install the 8 bolts.

Tighten the bolts to 9.8 N.m (87 lb in).





Notice: Use extreme care when working around oil seals. Damage to the lip of a seal will cause oil leaks.

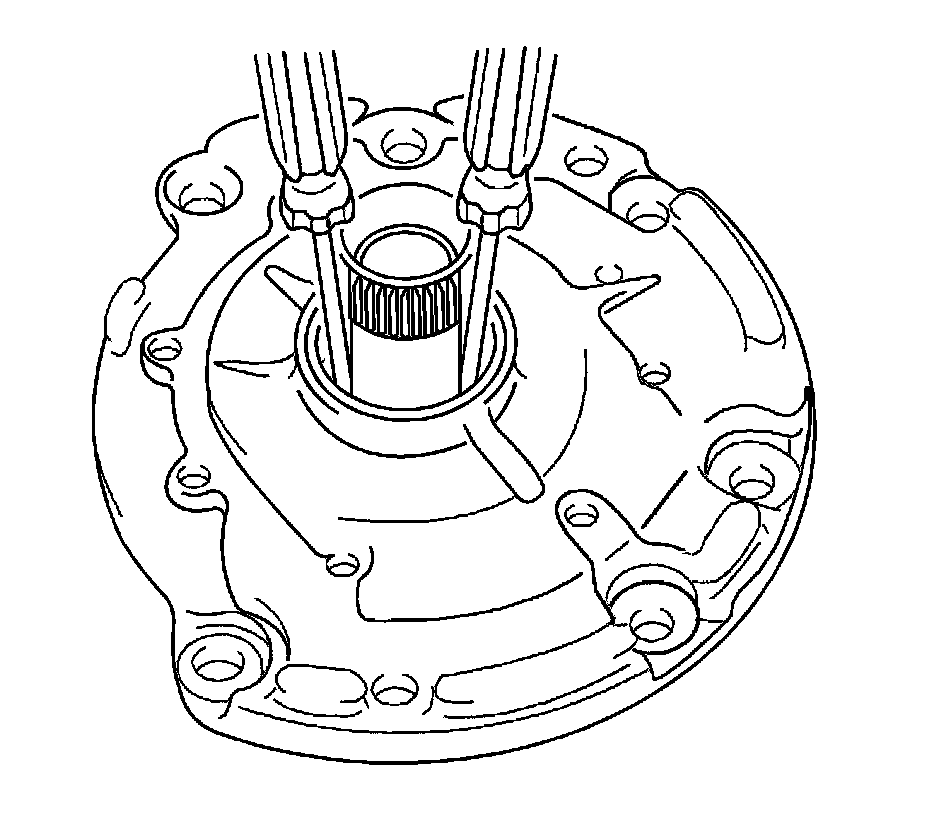

4. Turn the drive gear with 2 screwdrivers and make sure it rotates smoothly.
