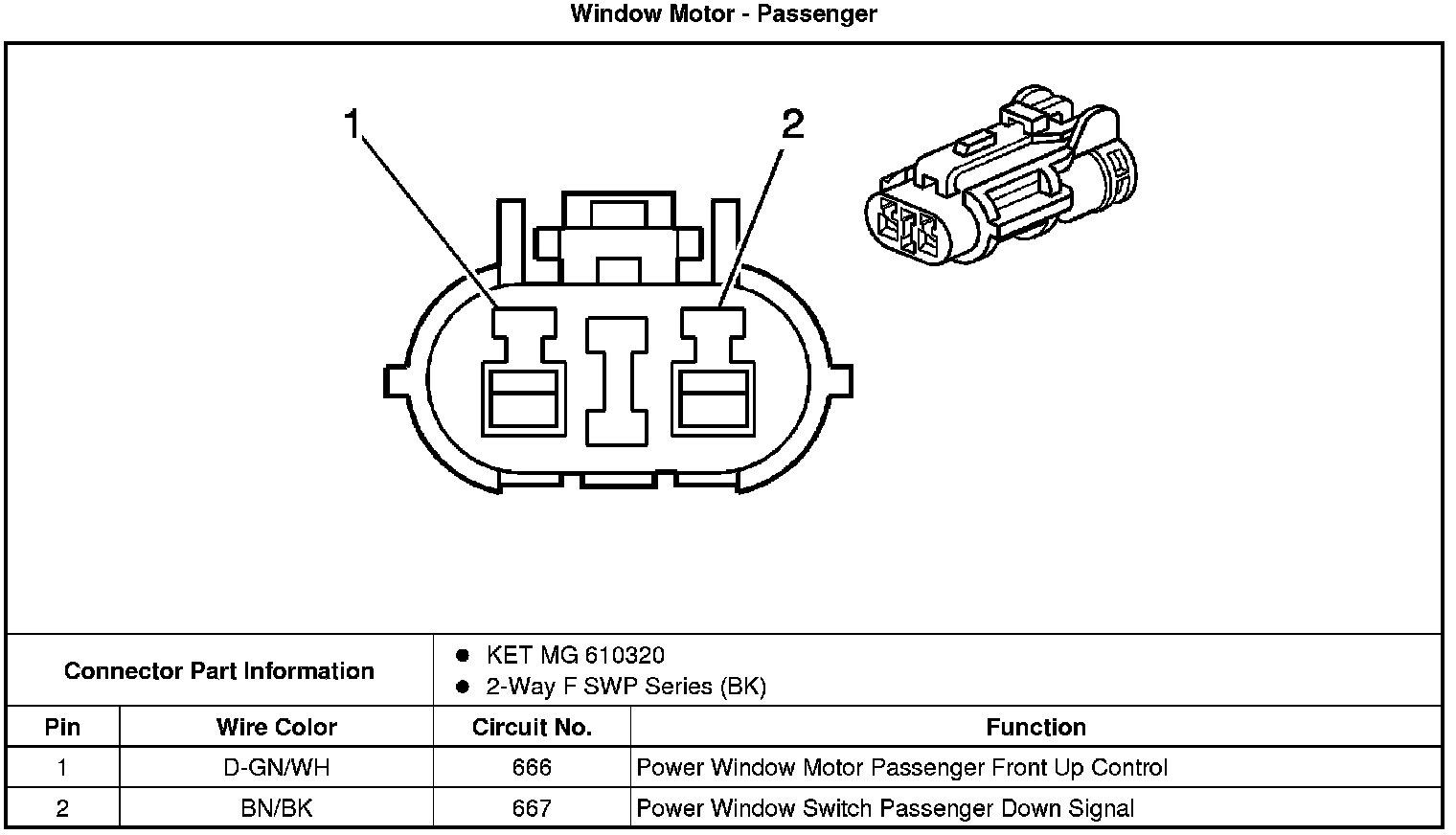

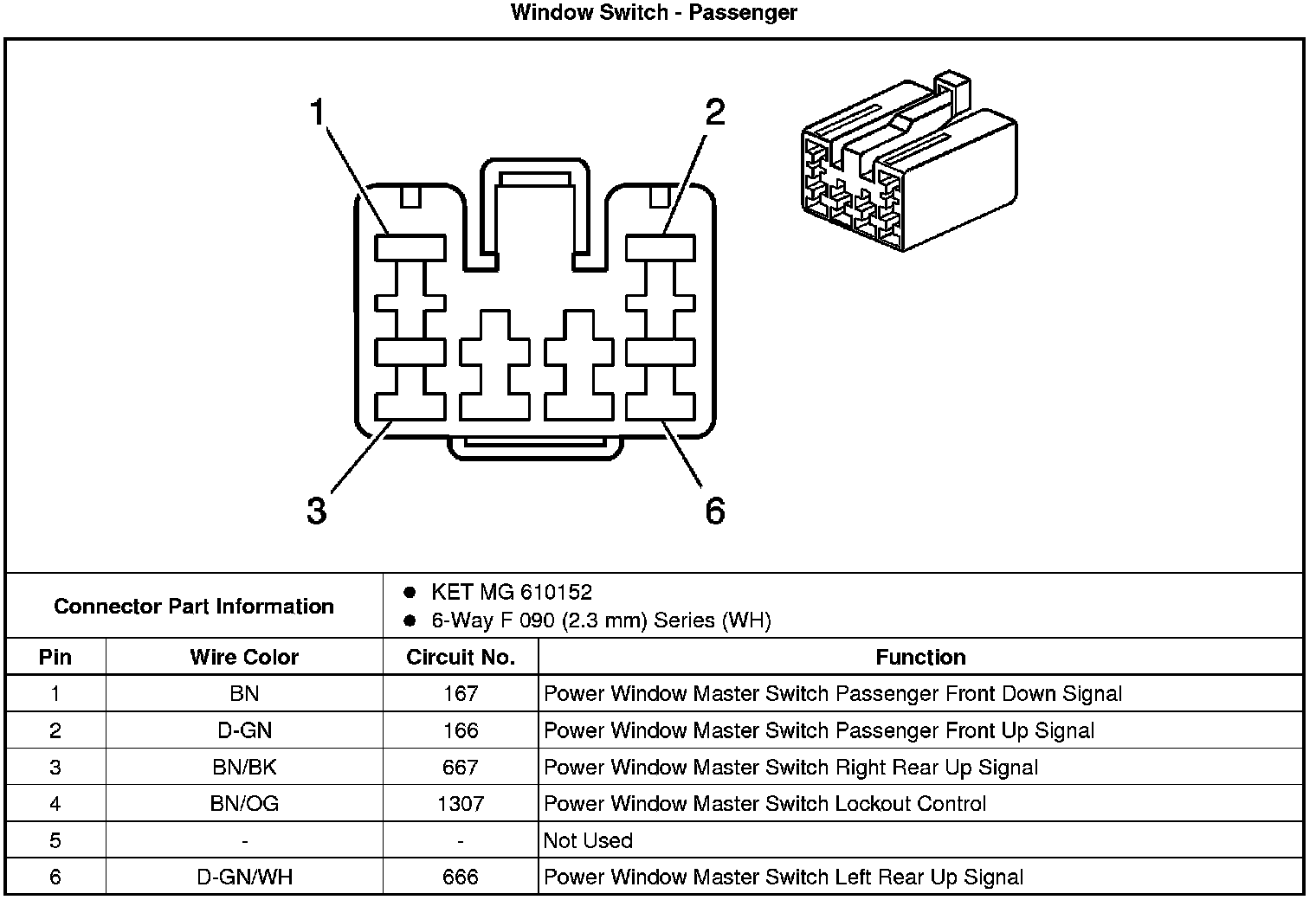

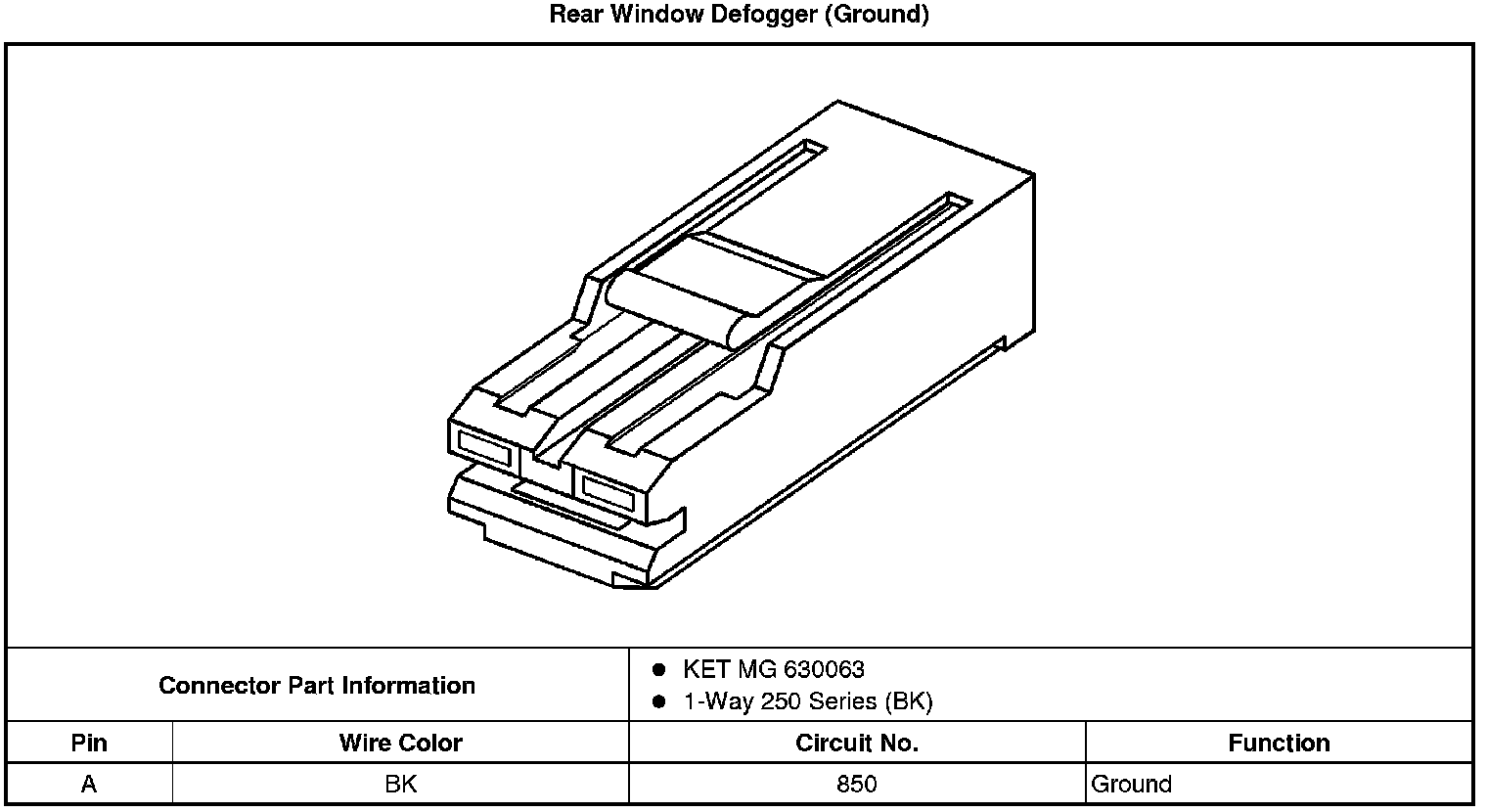

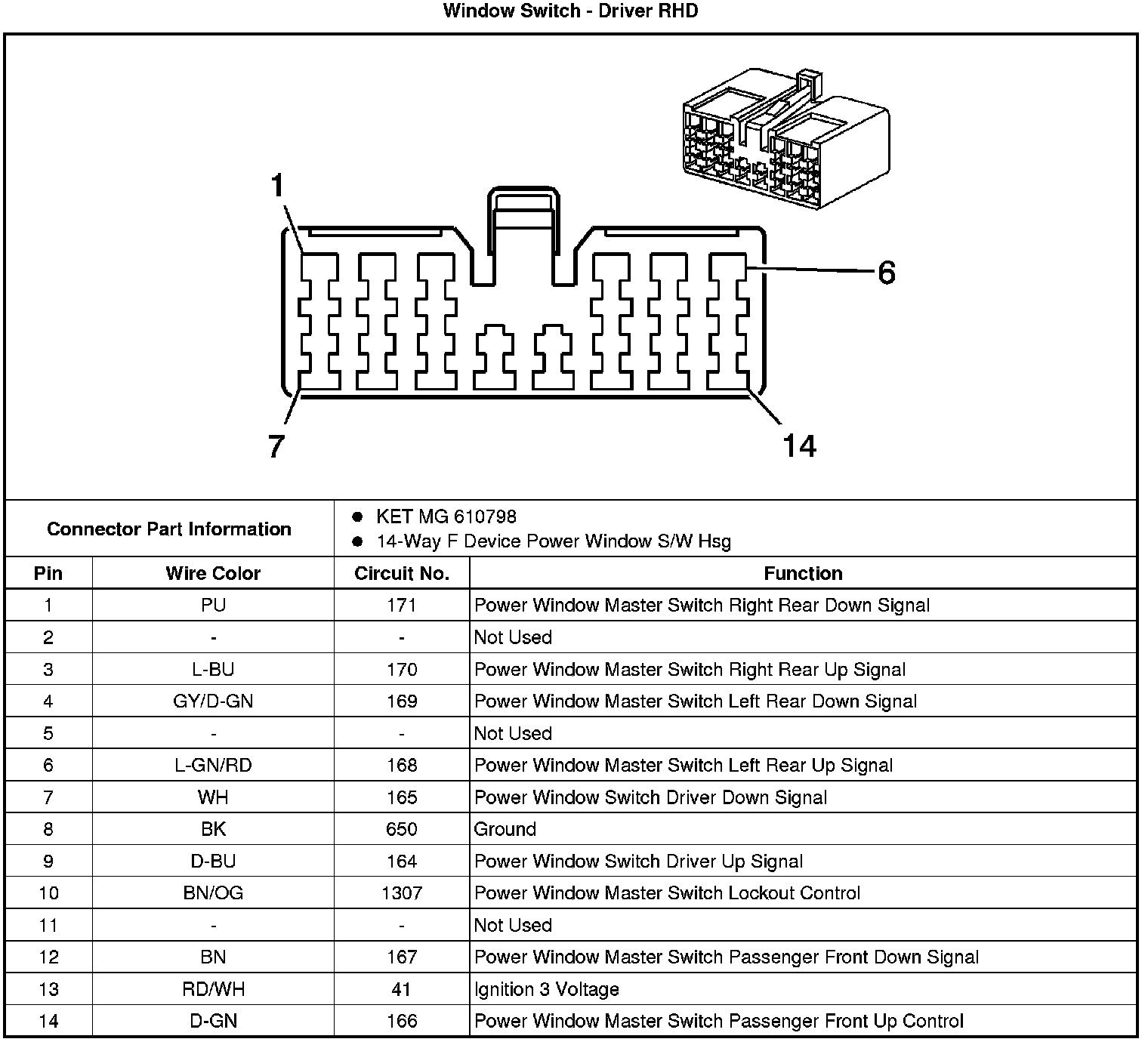

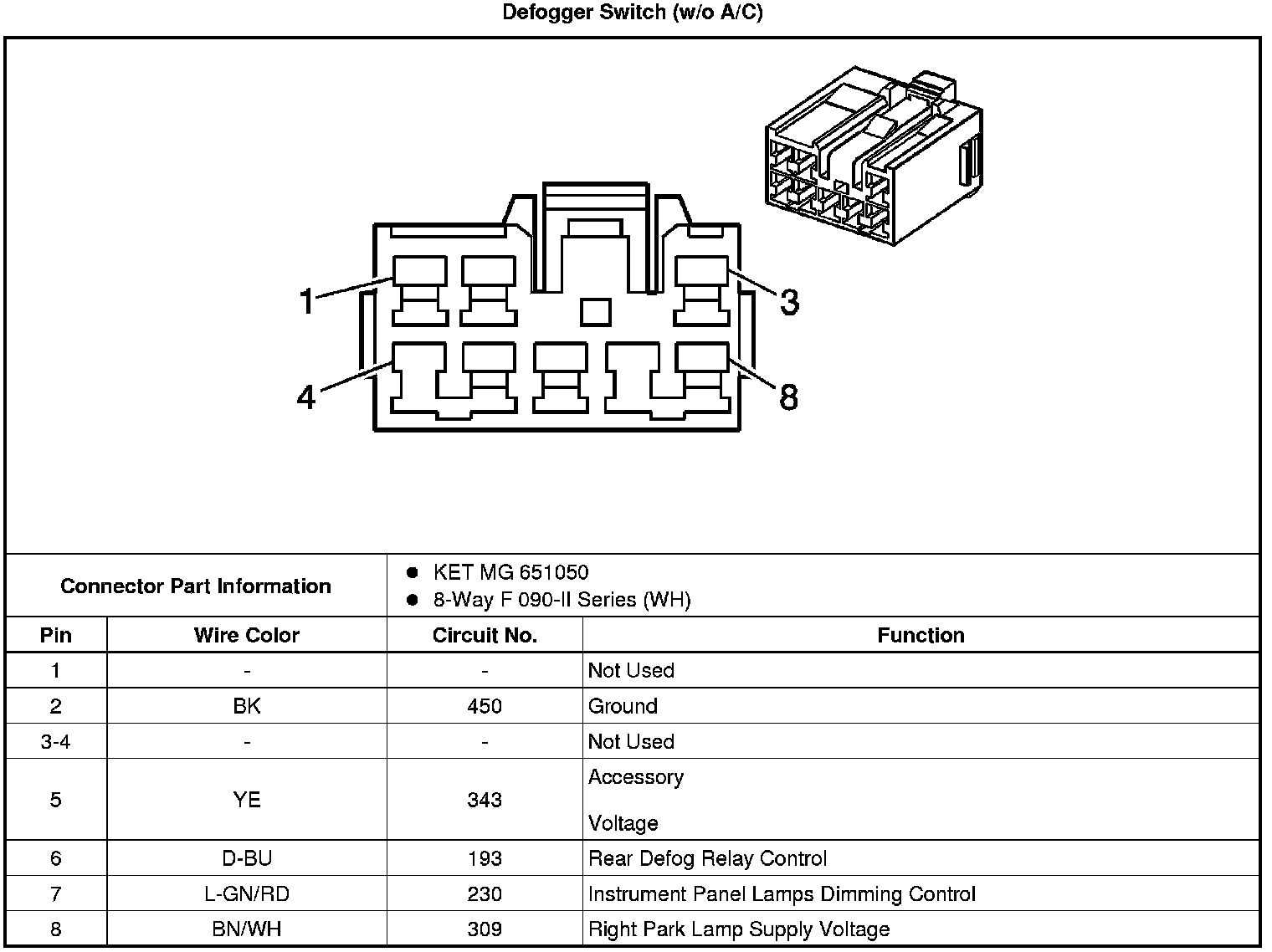

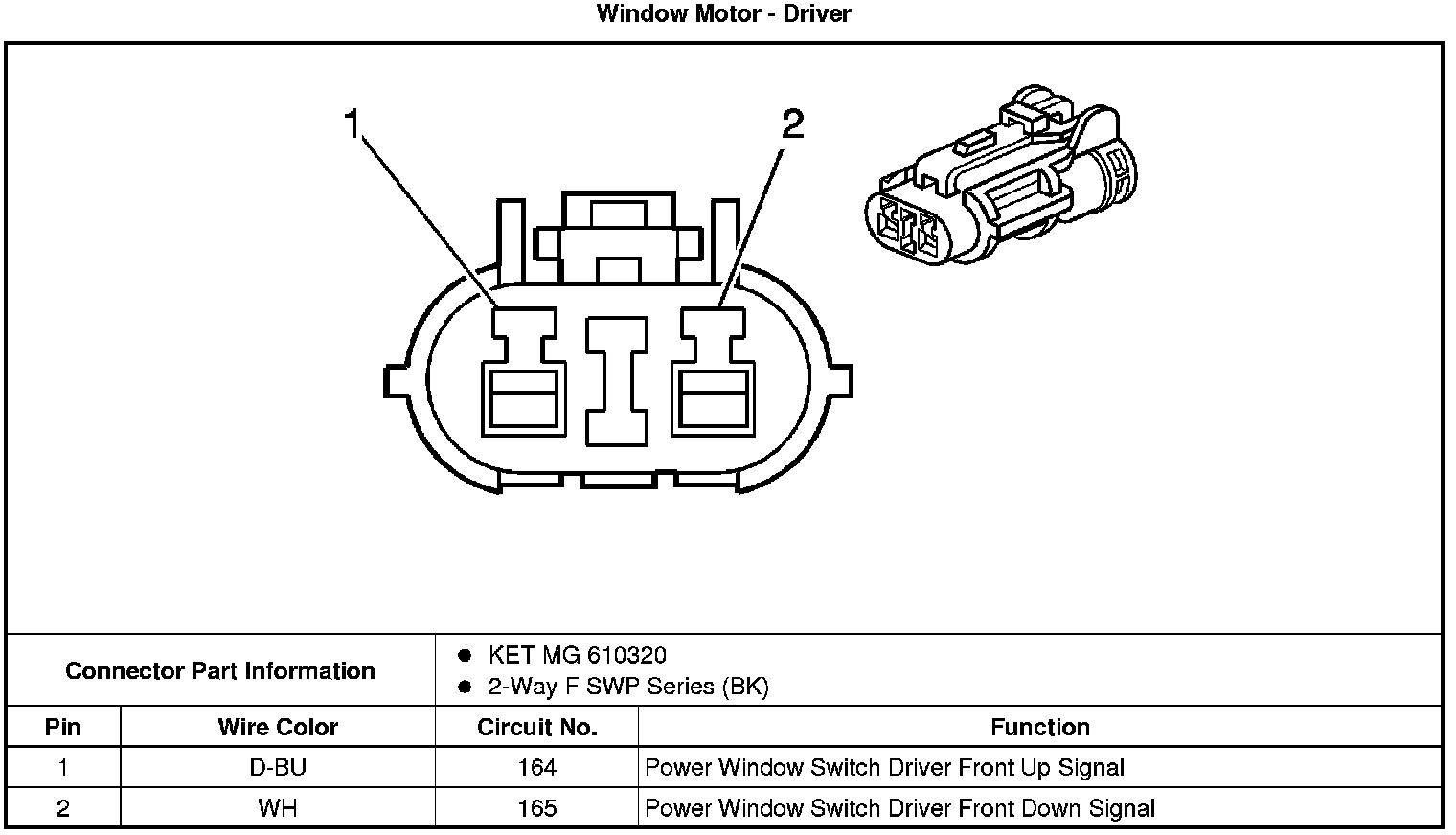

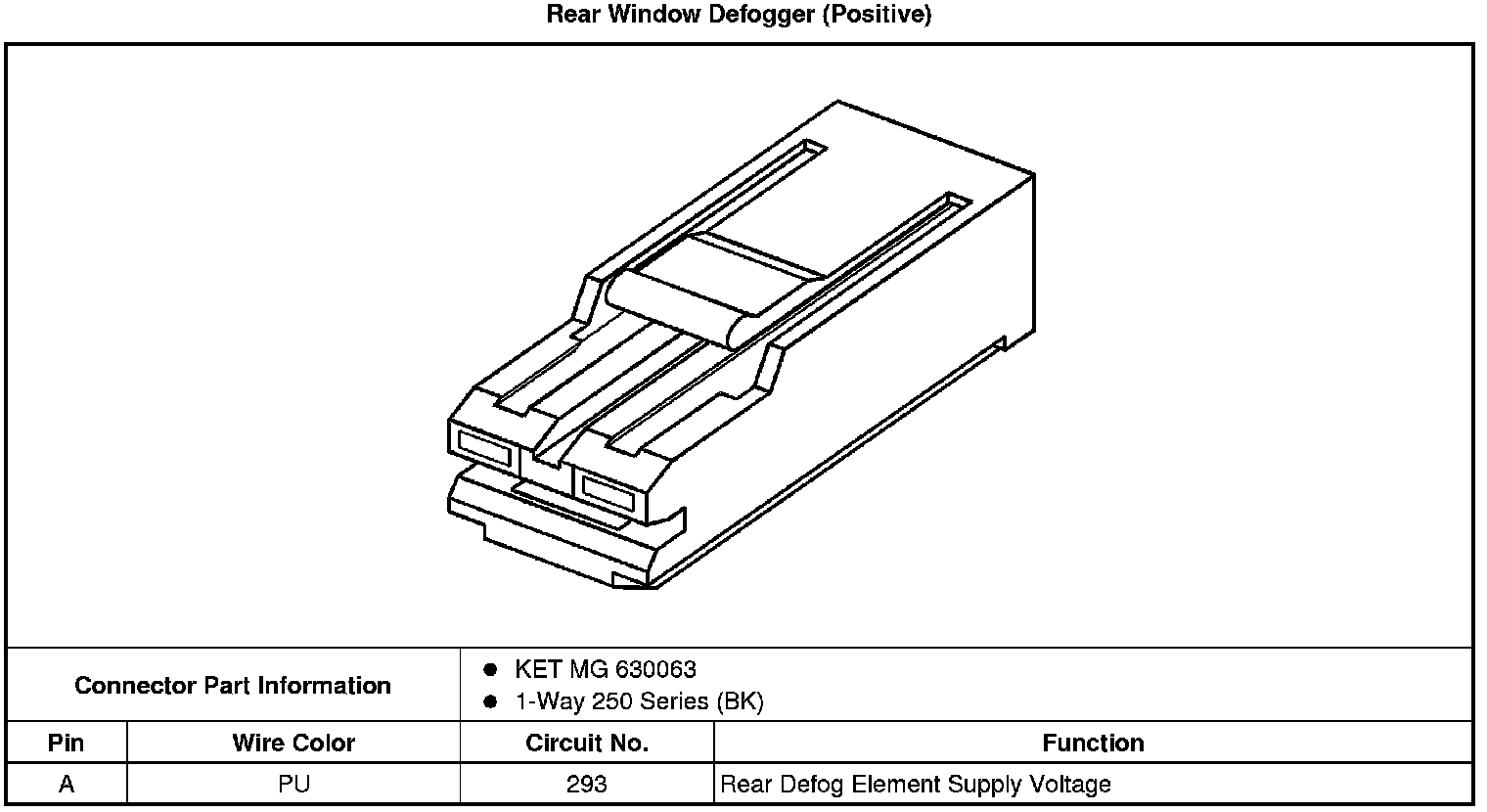

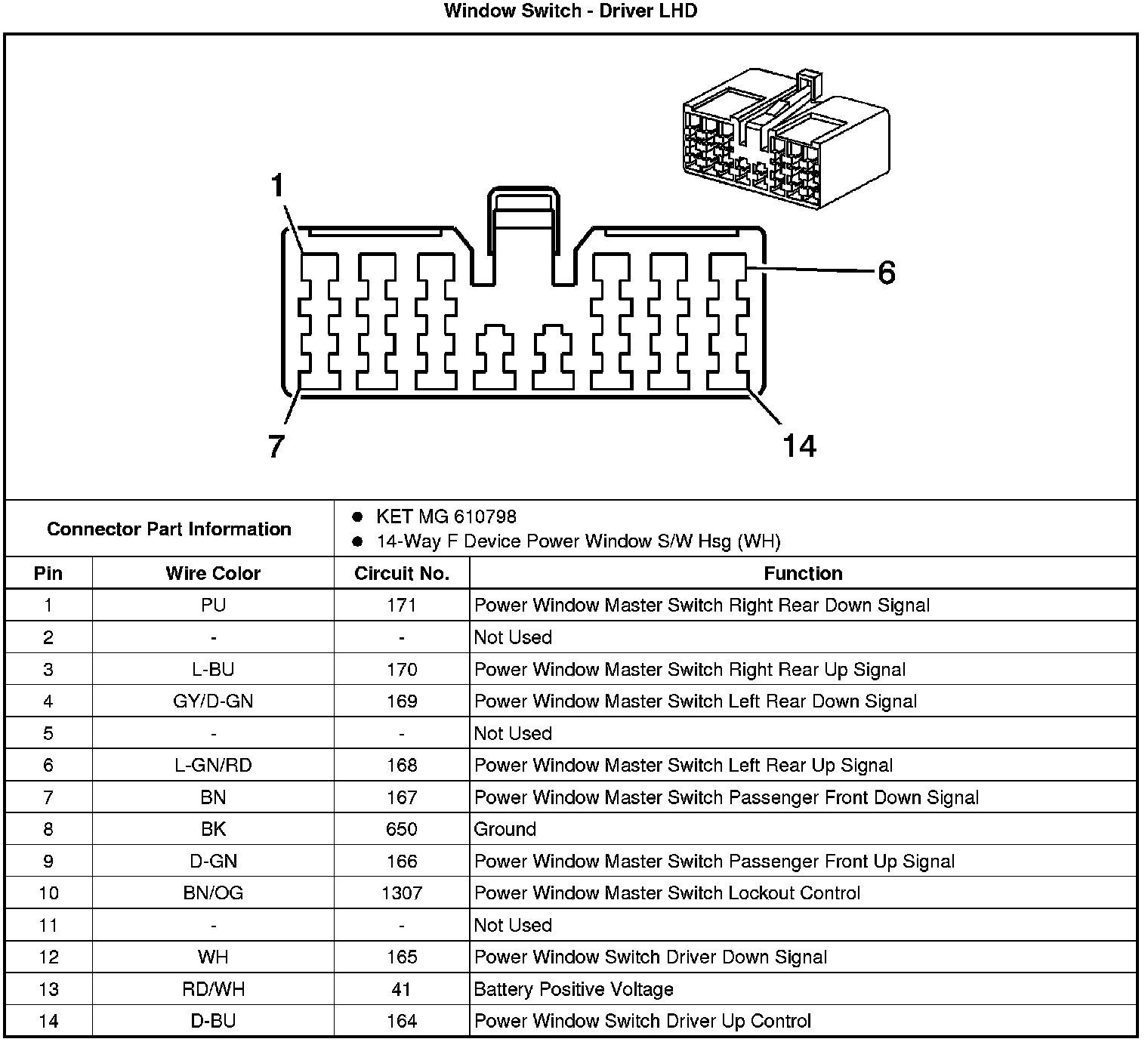

Window Systems Connector End Views (Hatchback)
Window Systems Connector End Views (Hatchback)
Window Systems Connector End Views (Hatchback)
