Diesel Data: Automotive Repair
Home >> Chevrolet >> 2008 >> Aveo L4-1.6L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Moveable Window Diagrams (Notchback)

Moveable Window Diagrams (Notchback)



Moveable Window Schematics (Notchback)

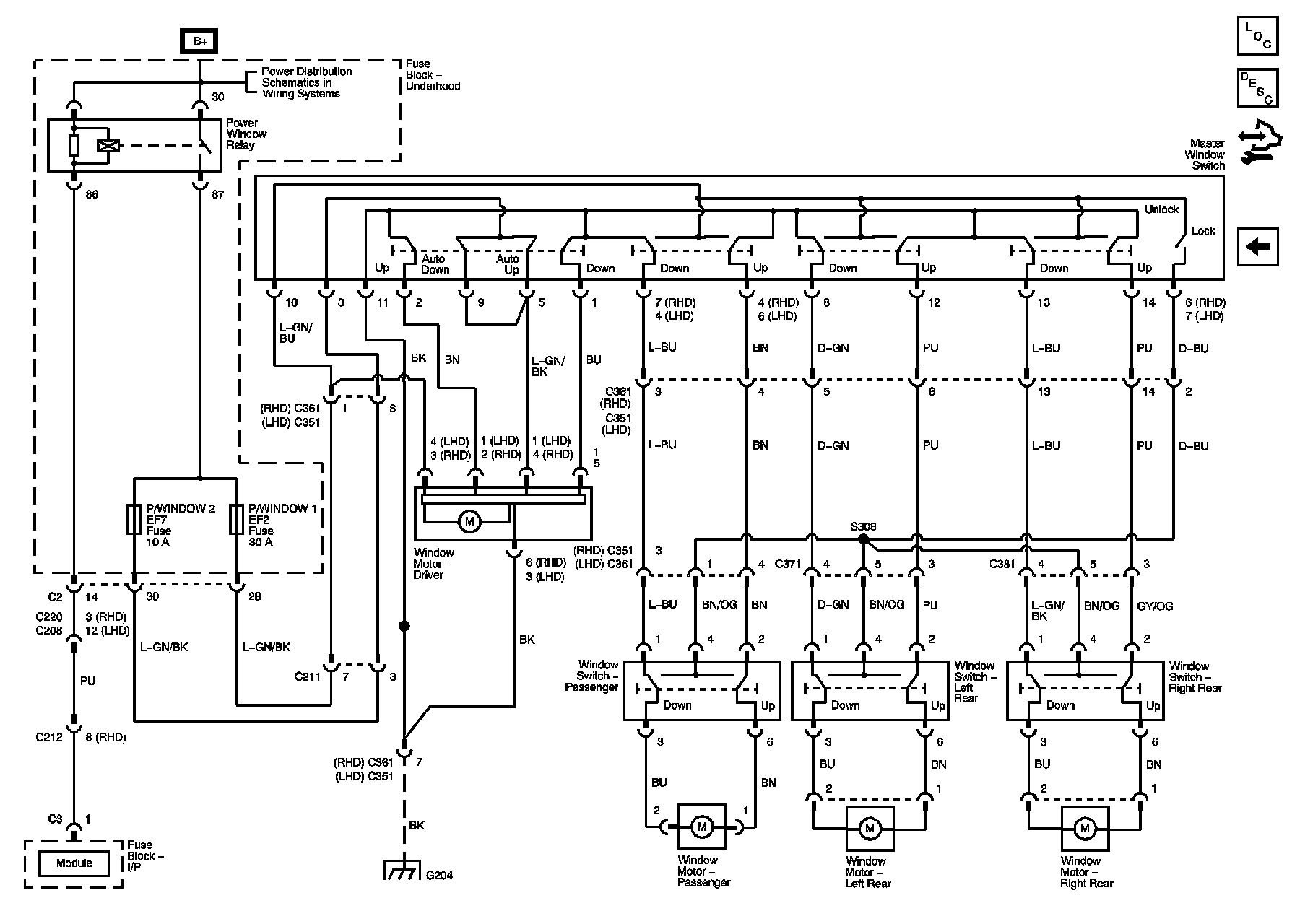

Front Power Windows

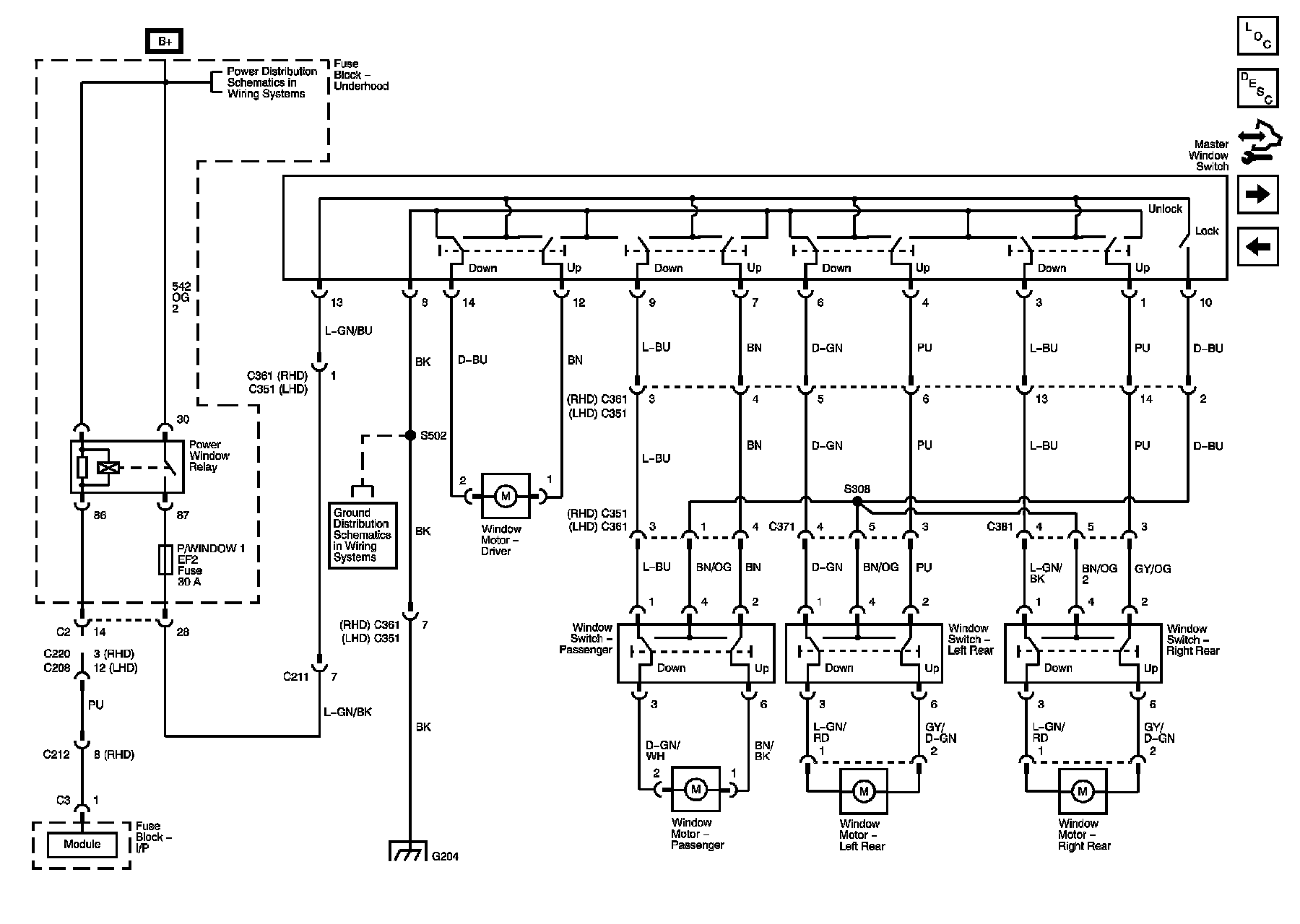

Front and Rear Power Windows





Safety Power Windows
