Air Bag Control Module
Component Connector End Views - Continued

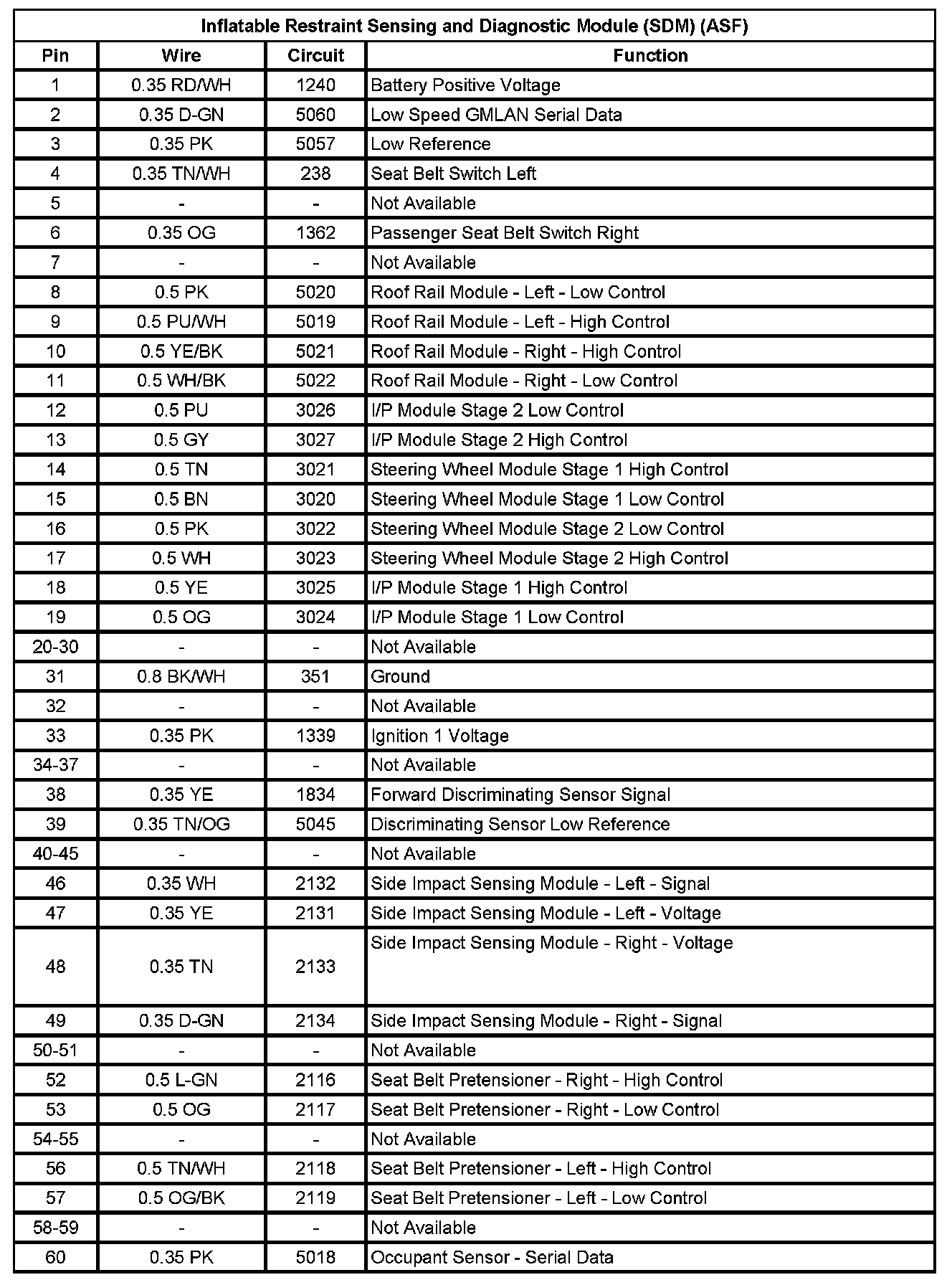

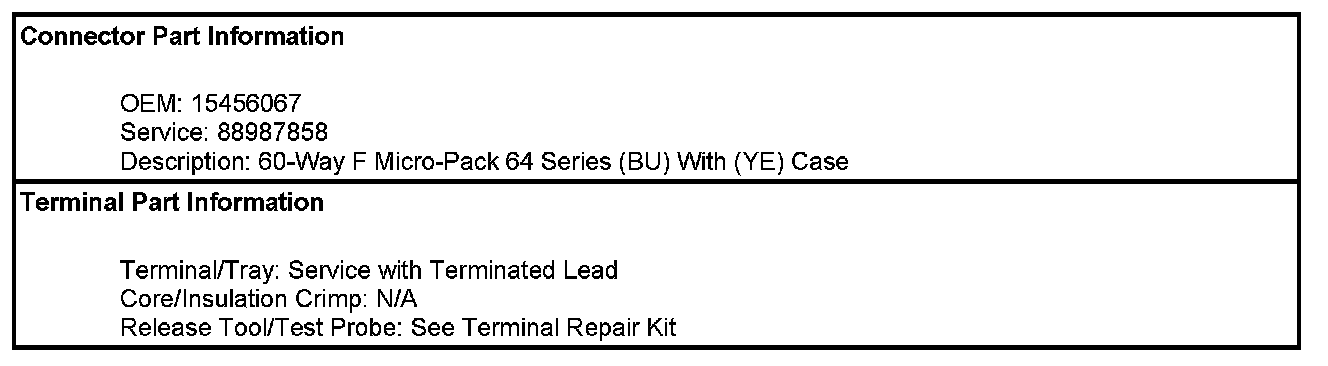

Inflatable Restraint Sensing and Diagnostic Module (SDM) (ASF)

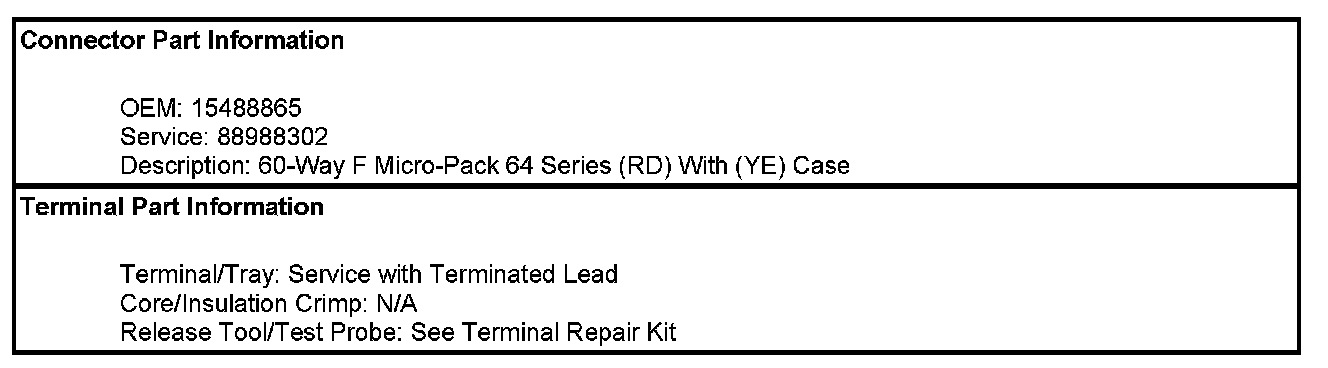

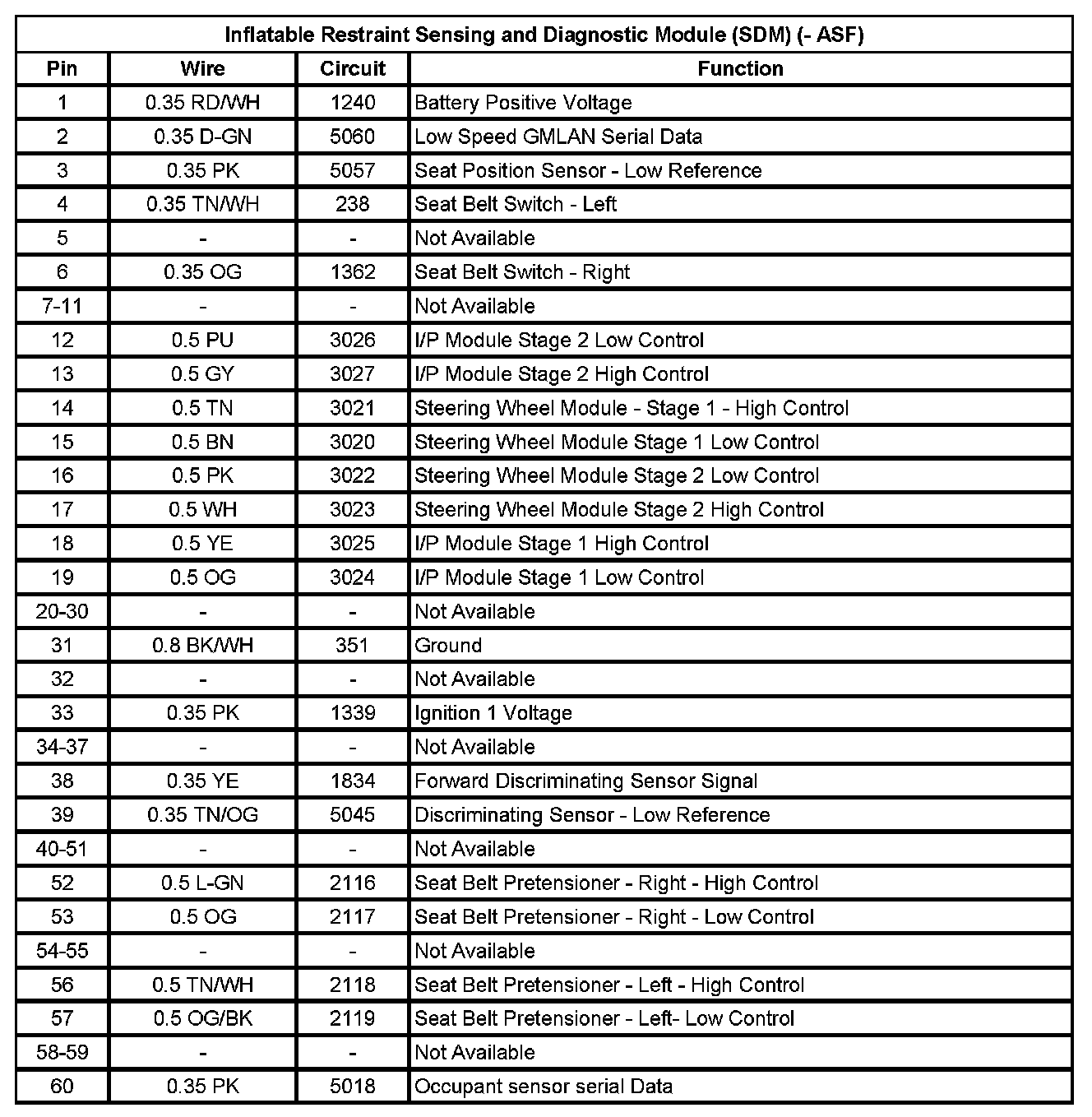

Inflatable Restraint Sensing and Diagnostic Module (SDM) (- ASF)
Component Connector End Views - Continued
Inflatable Restraint Sensing and Diagnostic Module (SDM) (ASF)
Inflatable Restraint Sensing and Diagnostic Module (SDM) (- ASF)
