Camshaft Position Sensor
Camshaft Position Sensor

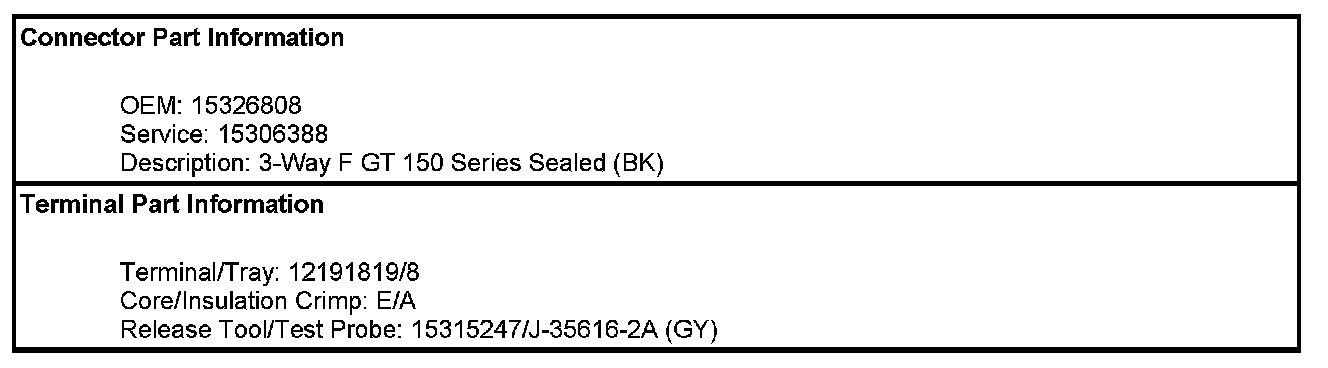

Component Connector End Views

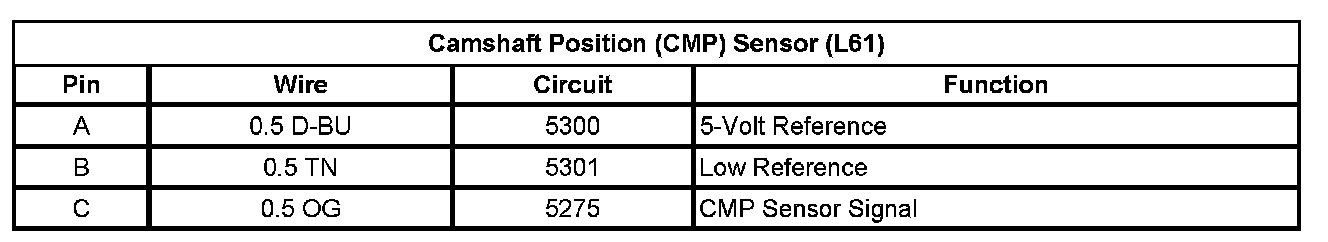

Camshaft Position (CMP) Sensor (L61)
