X111
X111

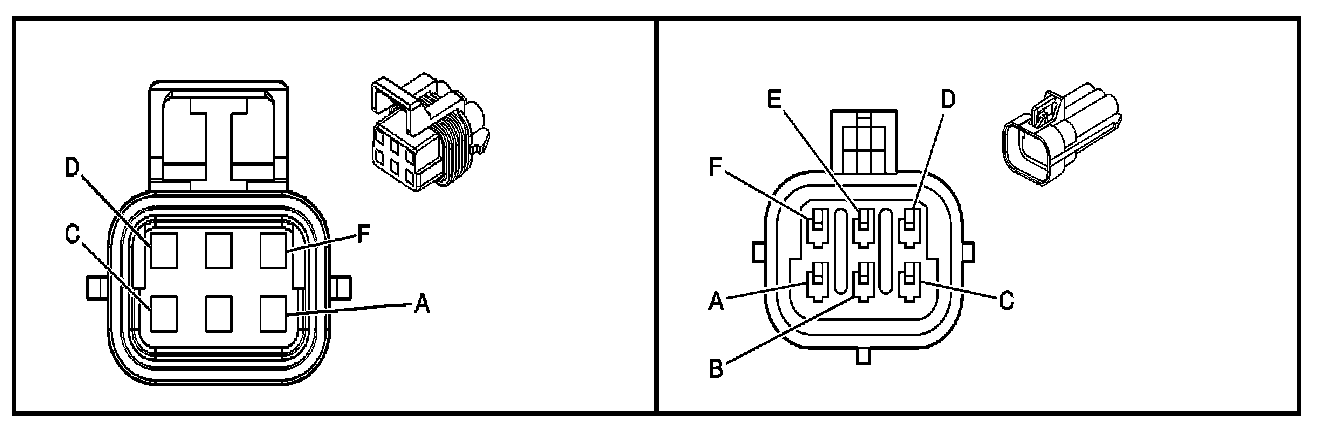

Inline Harness Connector End Views

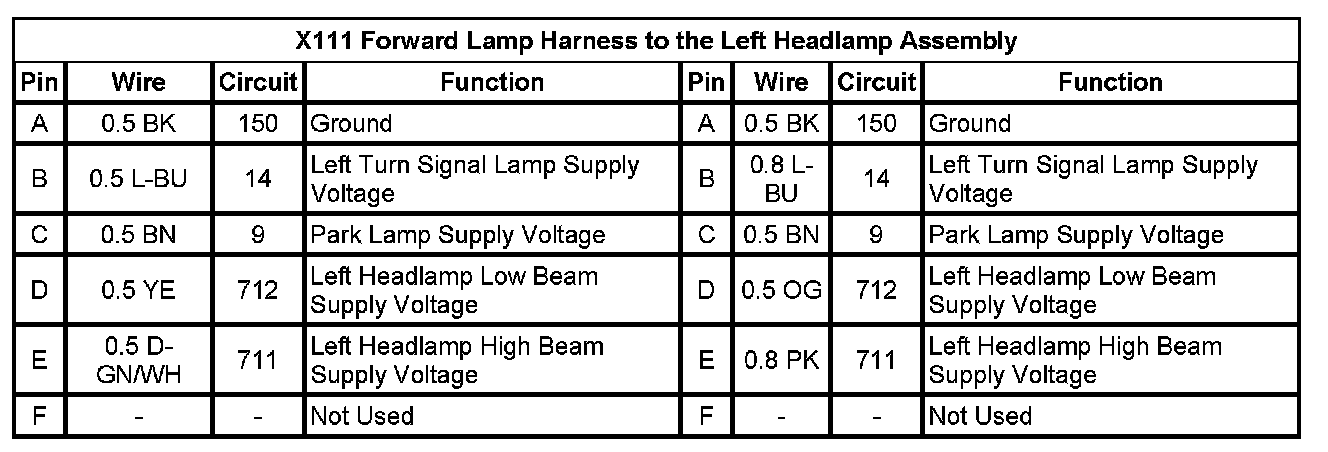

X111 Forward Lamp Harness to the Left Headlamp Assembly
