X700 - X799

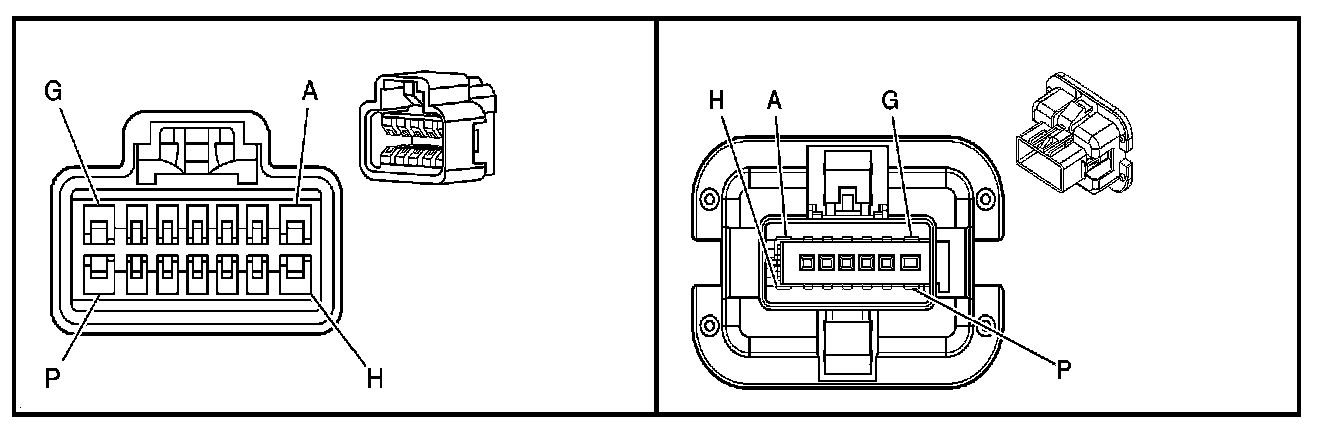

Inline Harness Connector End Views

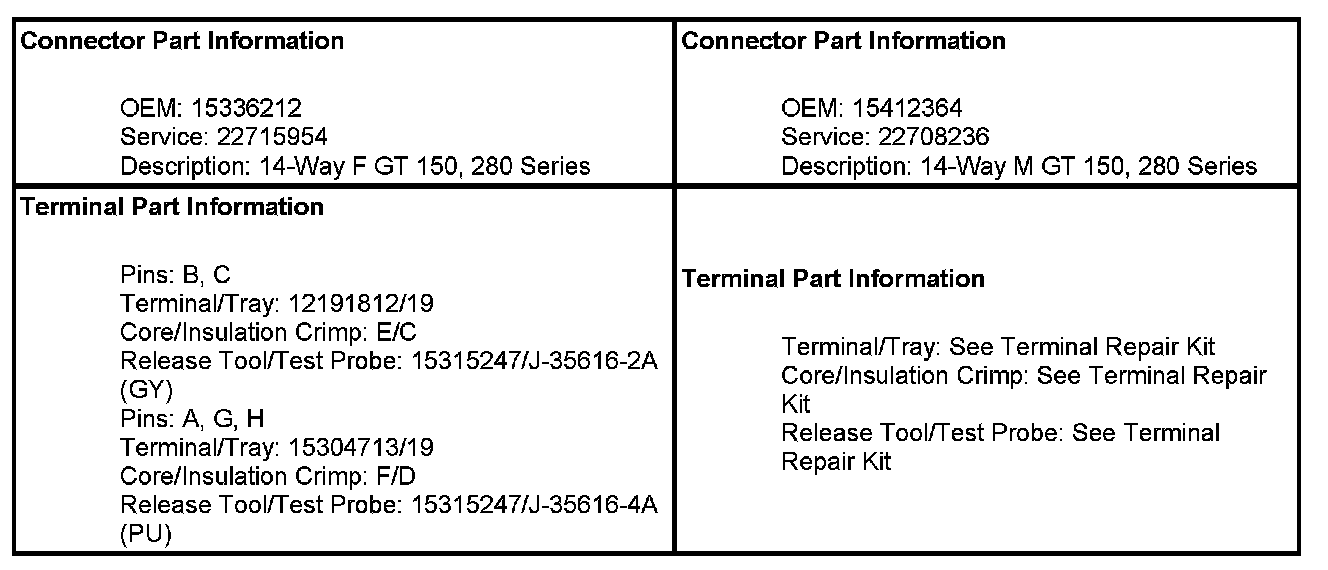

X700 Body Harness to the Left Rear Door Harness (Sedan)
