Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Cobalt L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Throttle Control Module
Electronic Throttle Control Module
Component Connector End Views - Continued

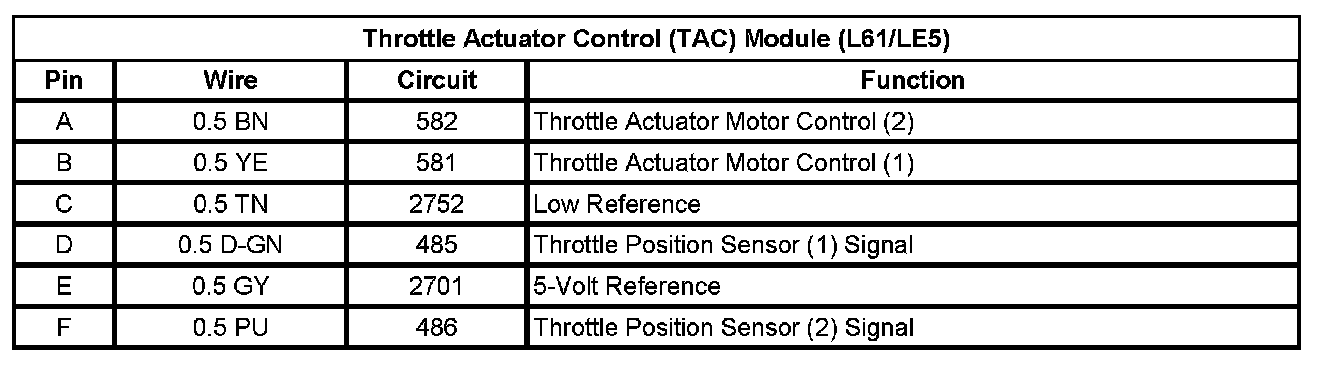

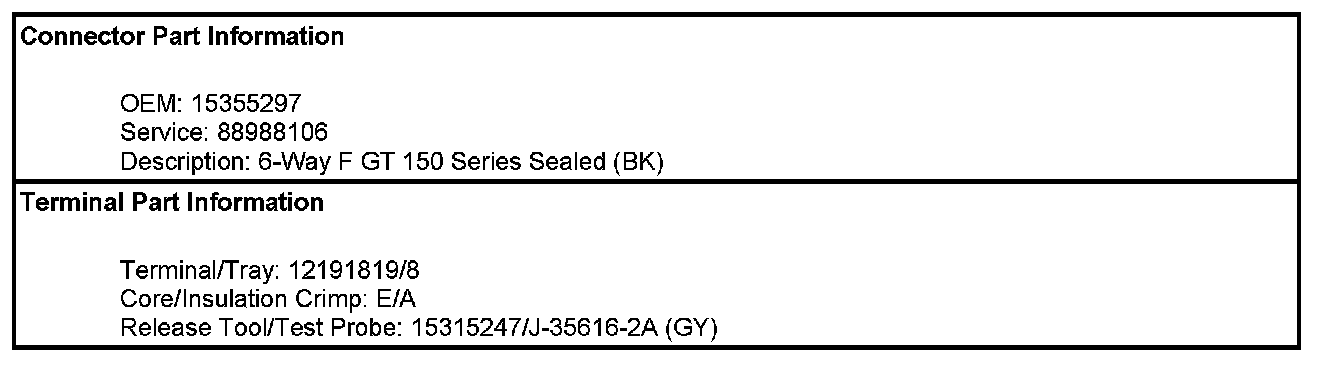

Throttle Actuator Control (TAC) Module (L61/LE5)
