Home >> Chevrolet >> 2008 >> Cobalt L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Tank Pressure Release Valve

Fuel Tank Pressure Release Valve

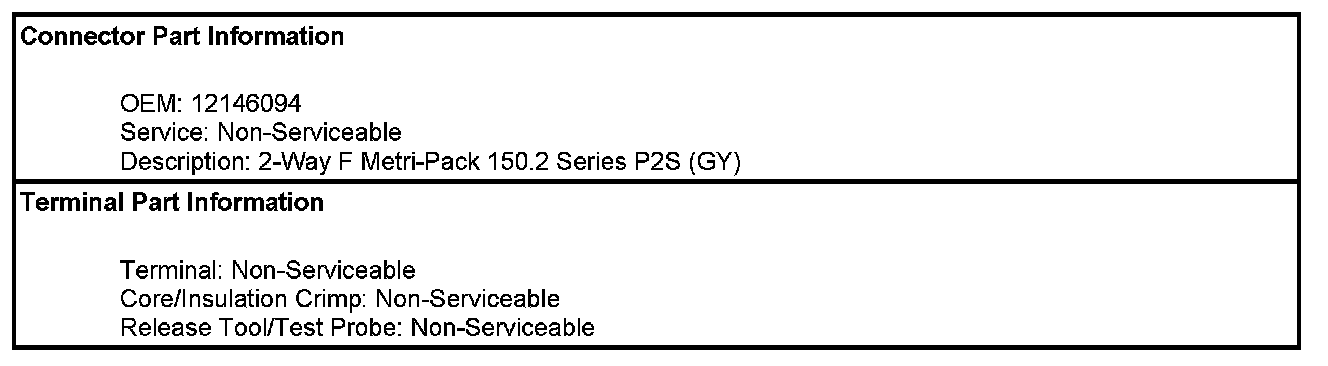

Component Connector End Views

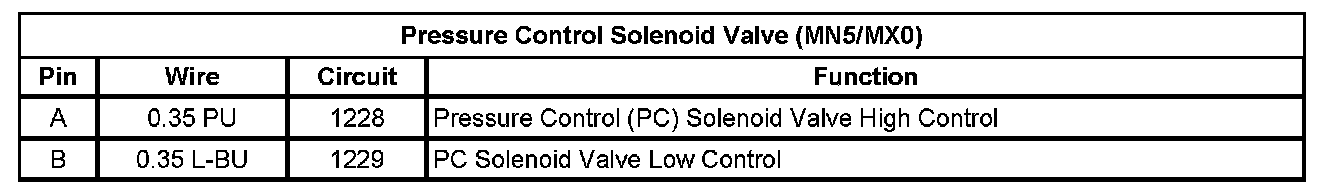

Pressure Control (PC) Solenoid Valve (MN5/MX0)
