Oxygen Sensor
Oxygen Sensor
Component Connector End Views

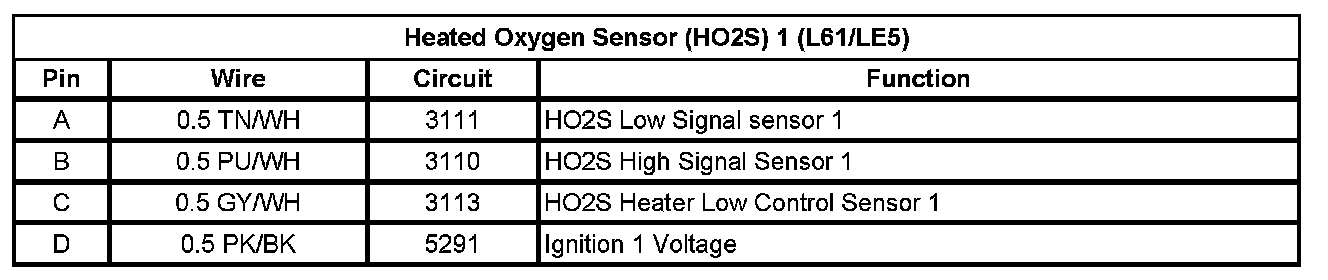

Heated Oxygen Sensor (HO2S) 1 (L61/LE5)

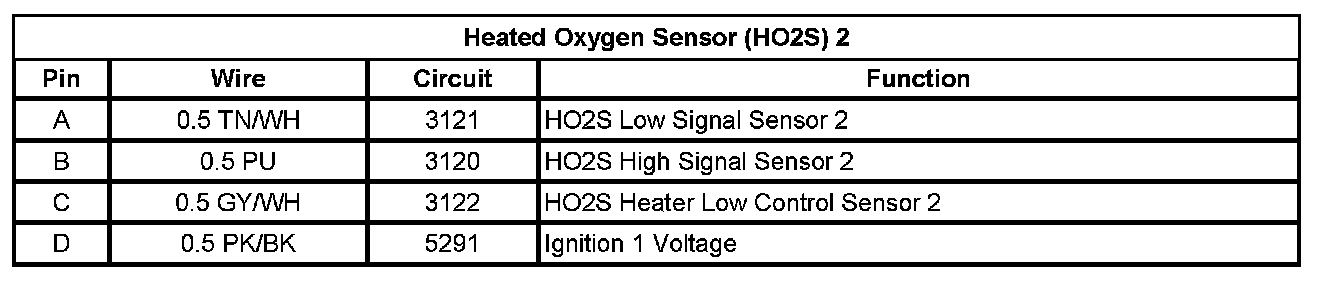

Heated Oxygen Sensor (HO2S) 2
