Seat Belt Tensioner

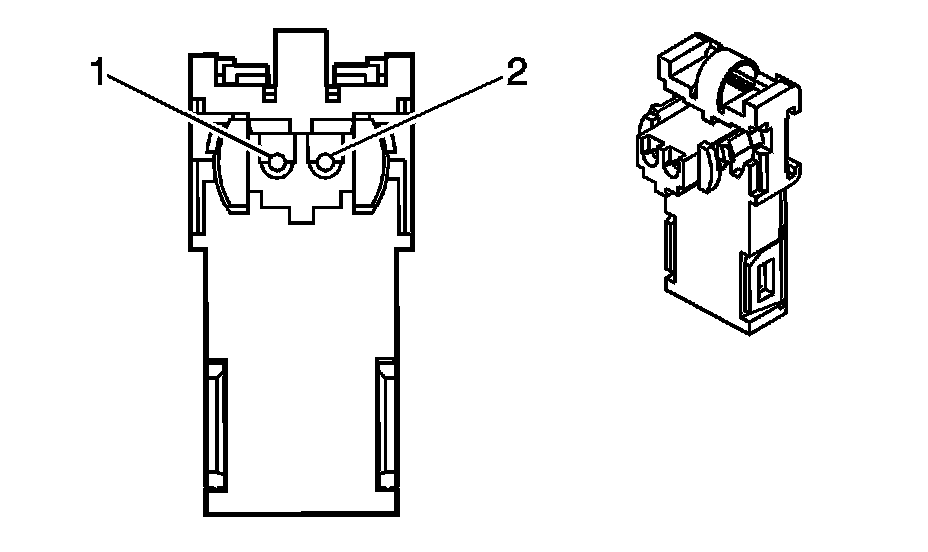

Component Connector End Views - Continued

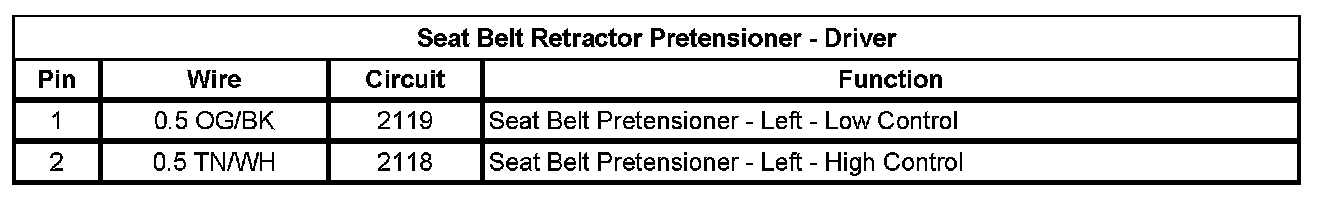

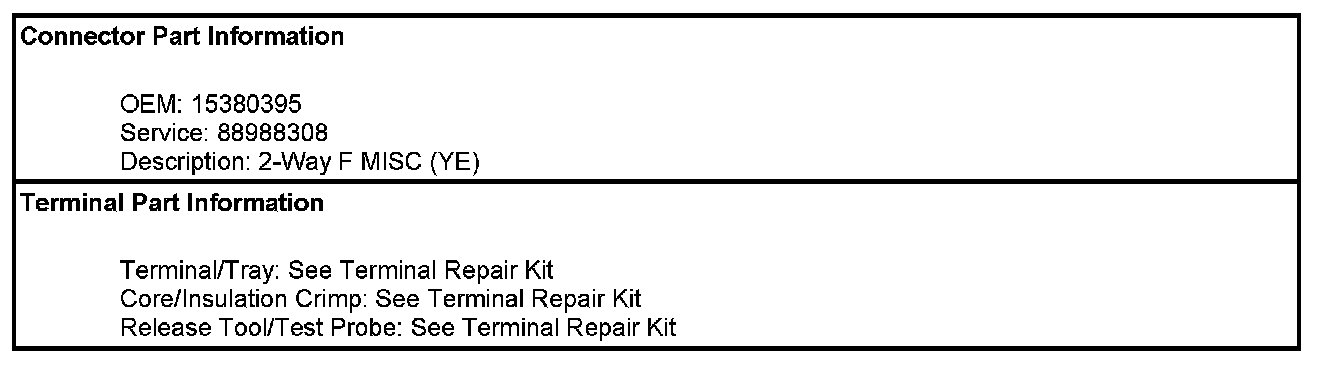

Seat Belt Retractor Pretensioner - Driver

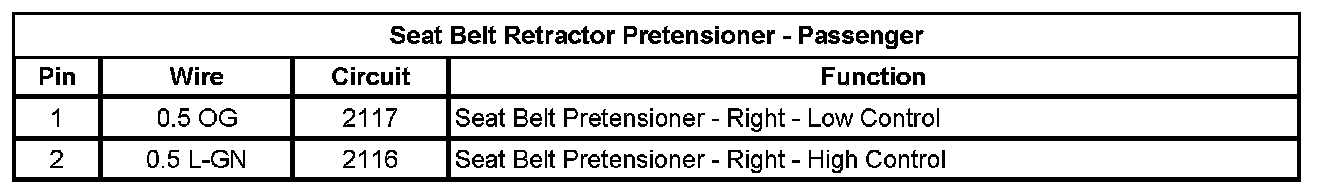

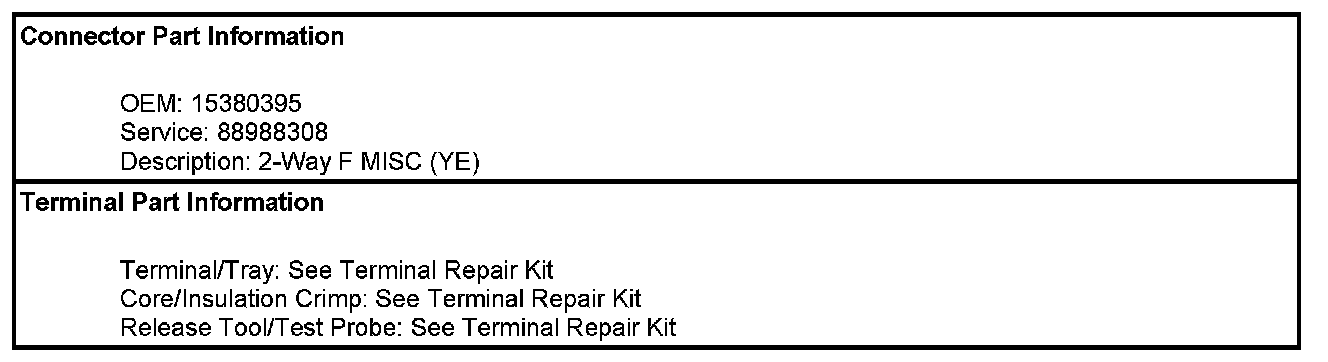

Seat Belt Retractor Pretensioner - Passenger
