Traction Control Switch
Traction Control Switch

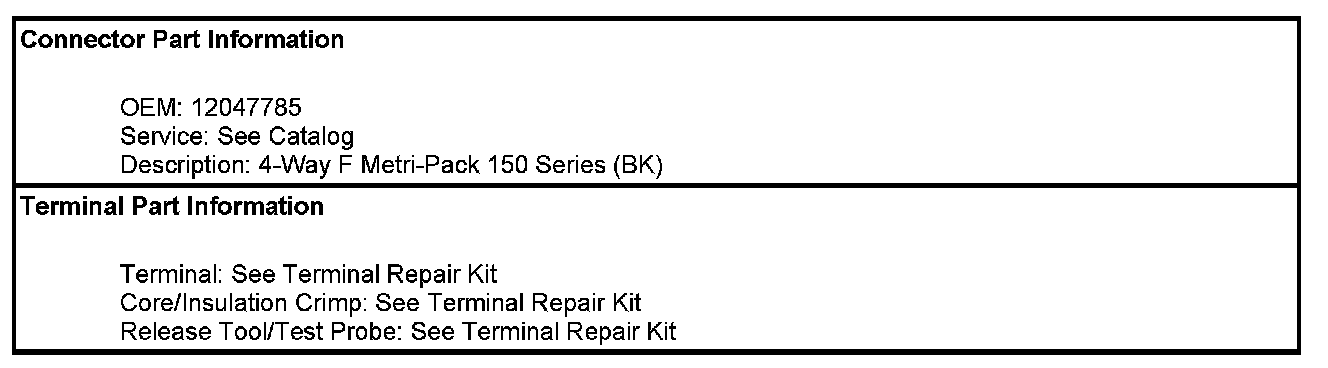

Component Connector End Views - Continued

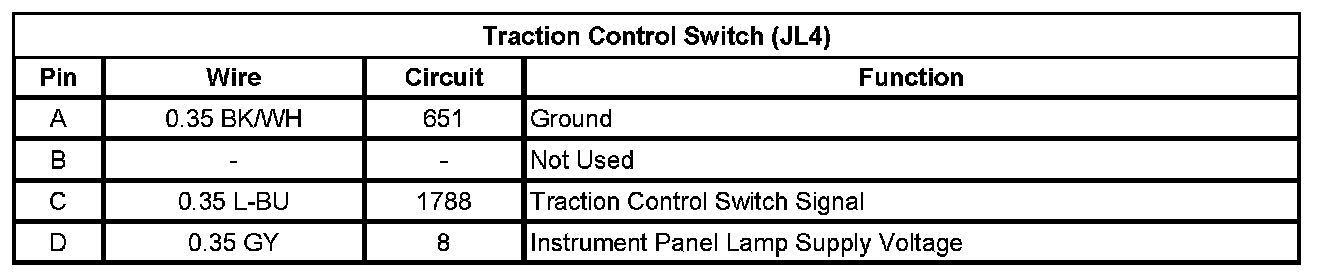

Traction Control Switch
(JL4)
