Drive Belt Tensioner: Service and Repair

Drive Belt Tensioner Replacement

Removal Procedure

1. Remove the drive belt. Refer to Drive Belt Replacement (Service and Repair) .





Important: To remove the tensioner bolt, an access hole has been provided through the inner and outer engine rail.

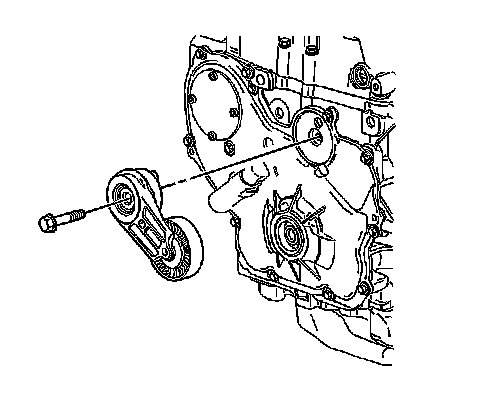

2. Remove the drive belt tensioner bolt.
3. Remove the drive belt tensioner.



Installation Procedure





1. Install the drive belt tensioner.

Notice: Refer to Fastener Notice .

2. Install the drive belt tensioner bolt.

Tighten the drive belt tensioner bolt to 45 N.m (33 lb ft).

3. Install the drive belt. Refer to Drive Belt Replacement (Service and Repair) .
