Right Front Door - Sedan



Harness Routing Views

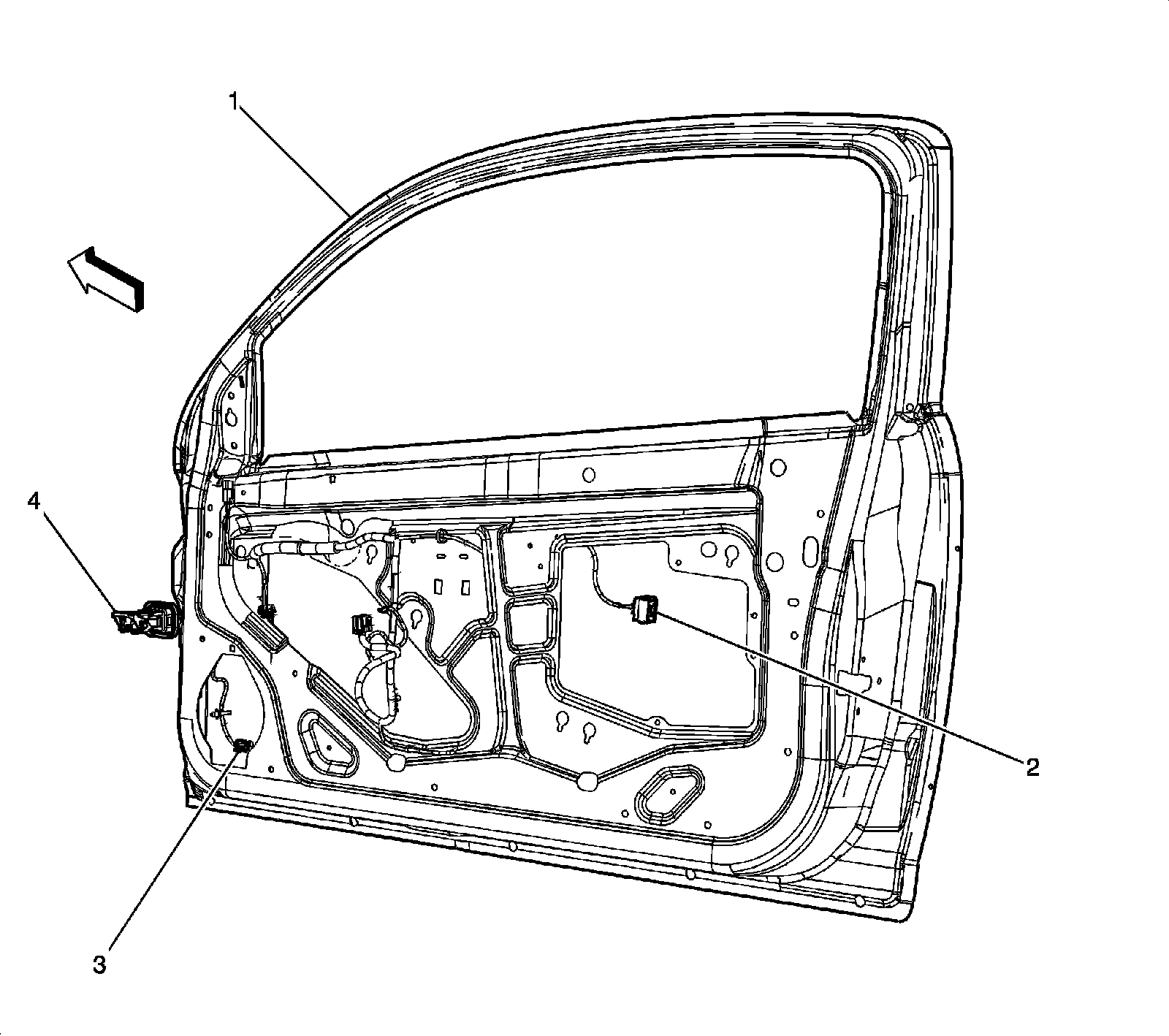

Right Front Door - Sedan




1 - Door Frame
2 - Door Latch Connector
3 - Speaker Connector
4 - X600
