Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Cobalt L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Knock Sensor
Knock Sensor
Component Connector End Views - Continued

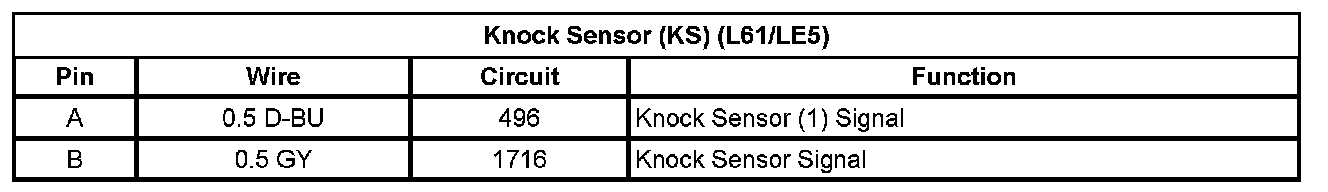

Knock Sensor (KS) (L61/LE5)
