Power Door Lock Switch
Power Door Lock Switch

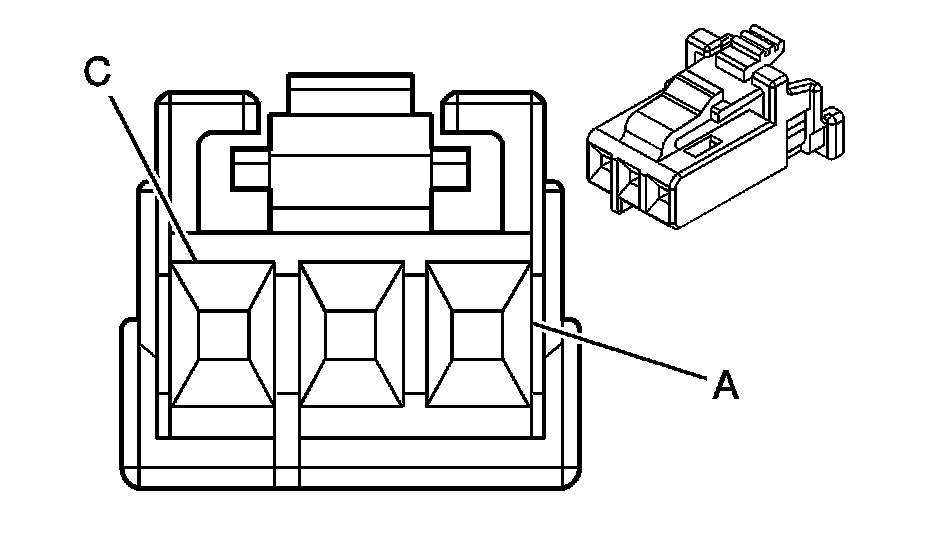

Component Connector End Views

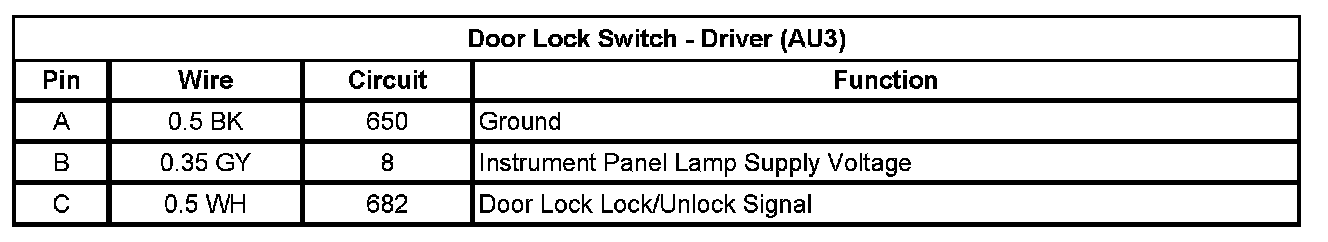

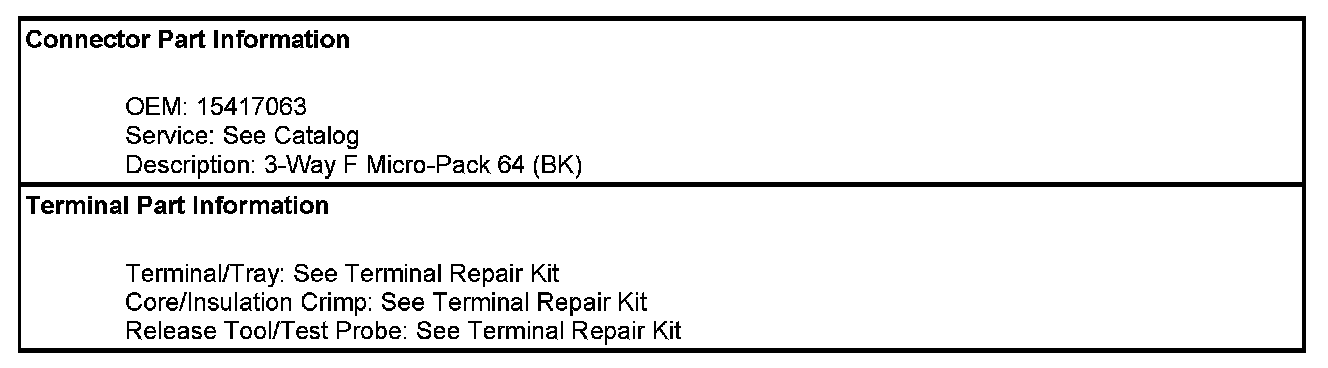

Door Lock Switch - Driver (AU3)

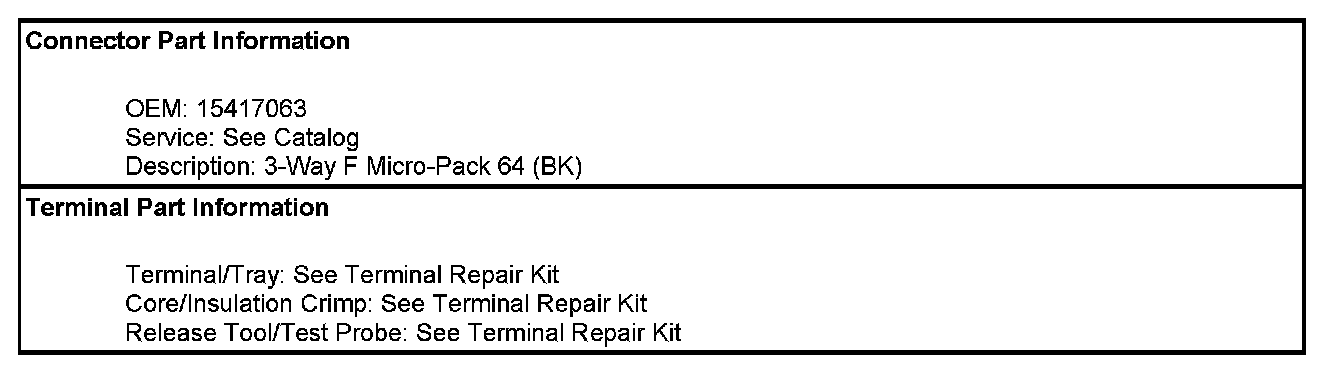

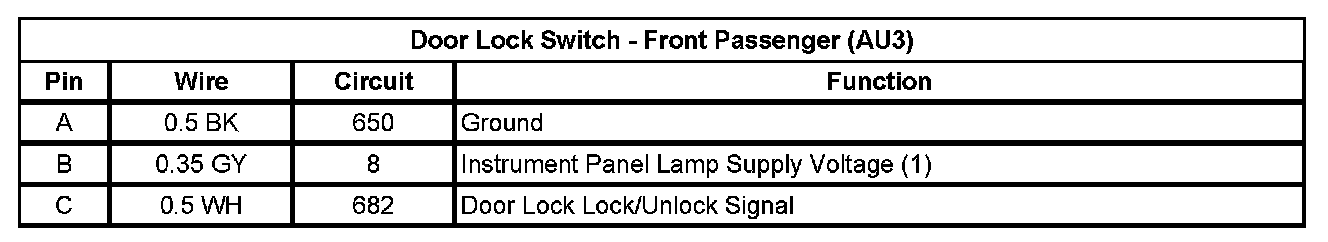

Door Lock Switch - Front Passenger (AU3)
