Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

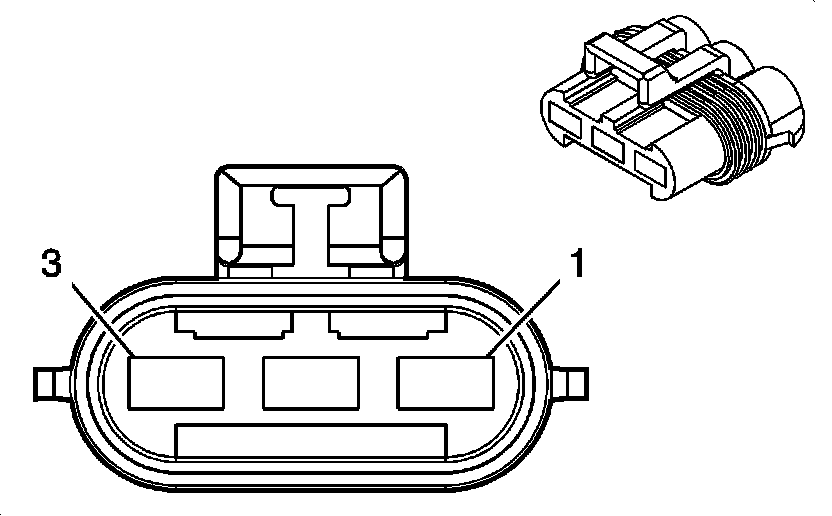

Component Connector End Views

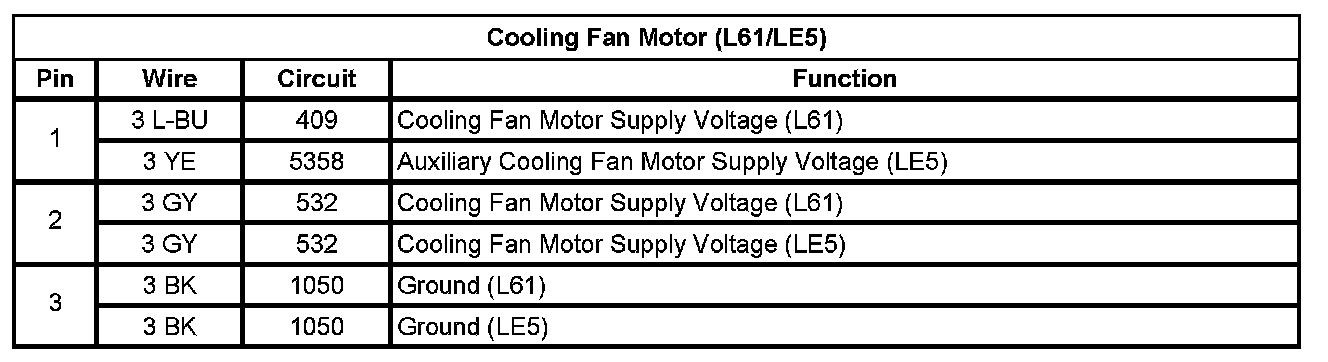

Cooling Fan Motor (L61/LE5)
