Seat Belt Tension Sensor

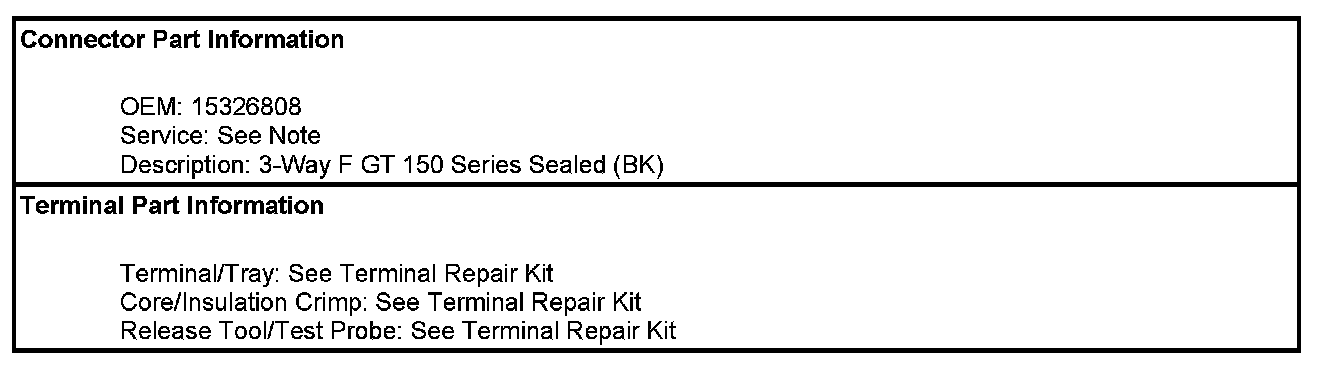

Component Connector End Views

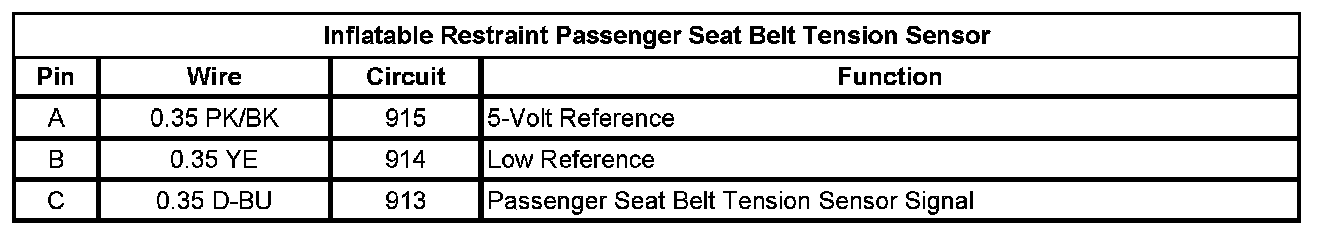

Inflatable Restraint Passenger Seat Belt Tension Sensor
