Seat Temperature Element



Component Connector End Views

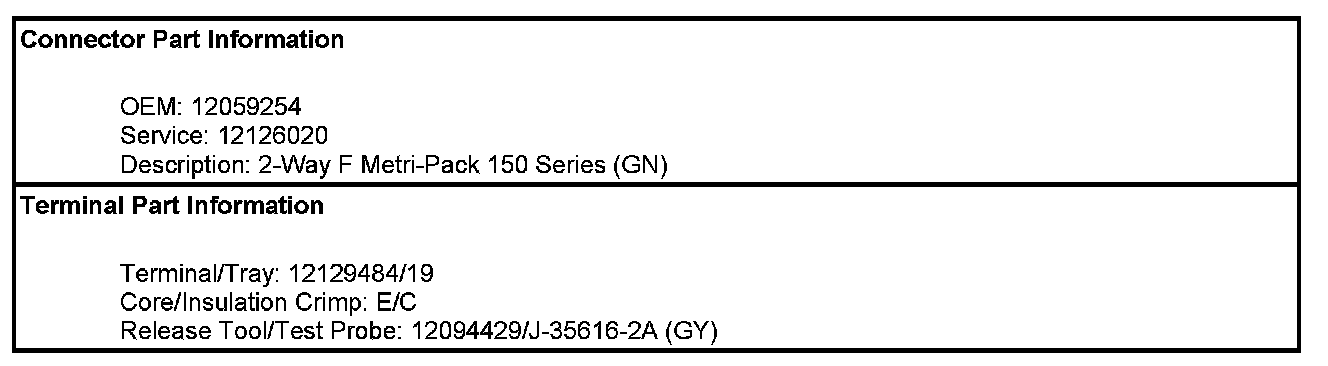

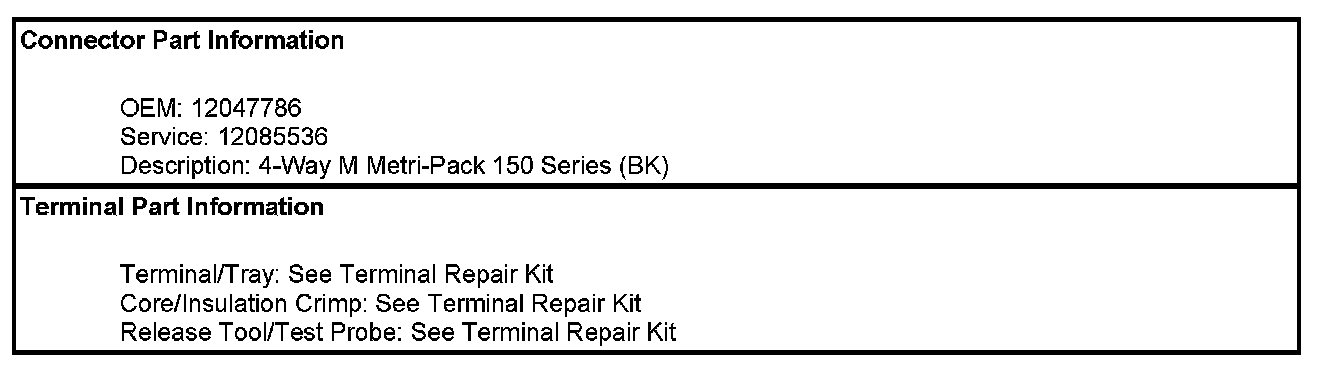

Heated Seat Element - Driver Back (KA1)

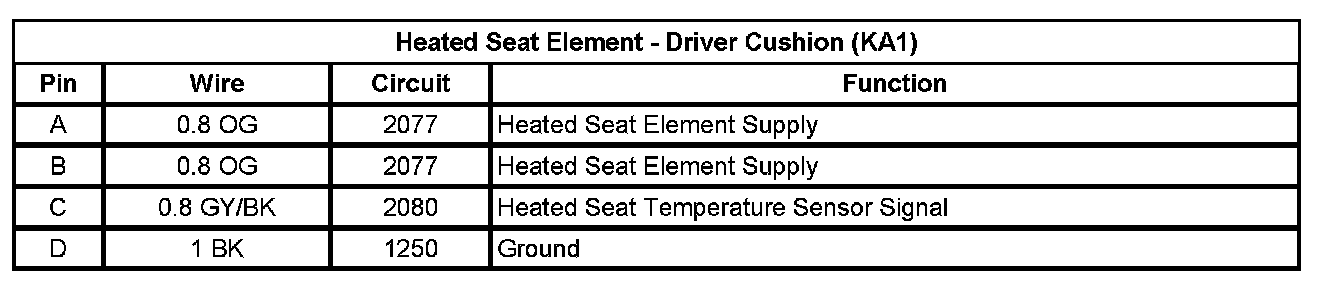

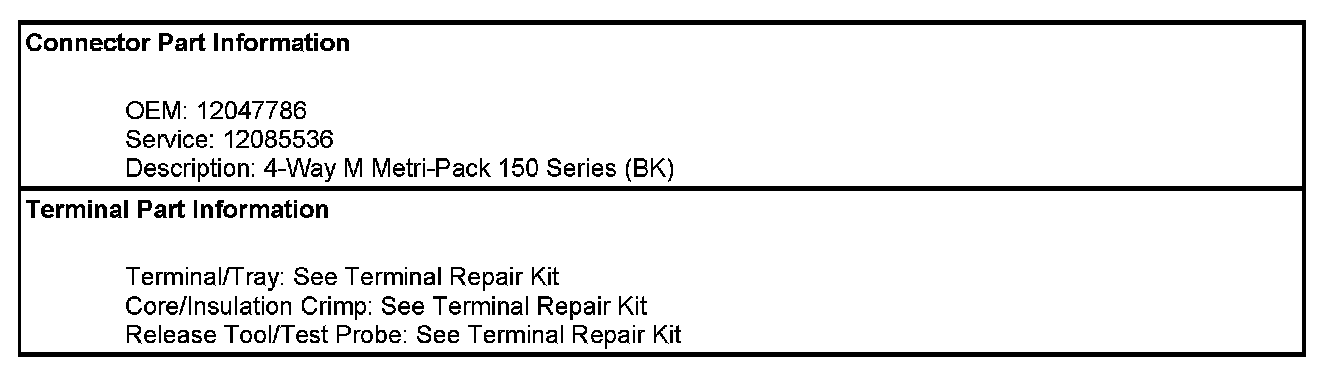

Heated Seat Element - Driver Cushion (KA1)

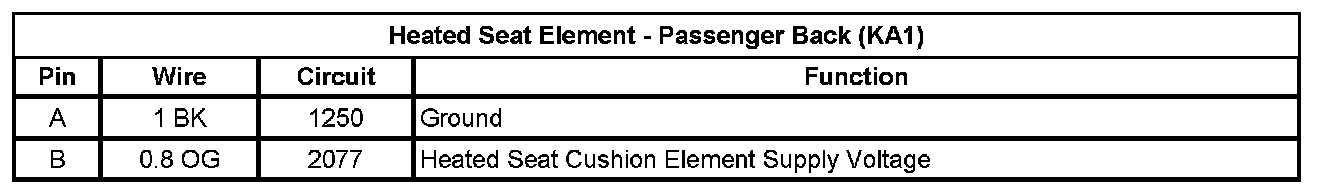

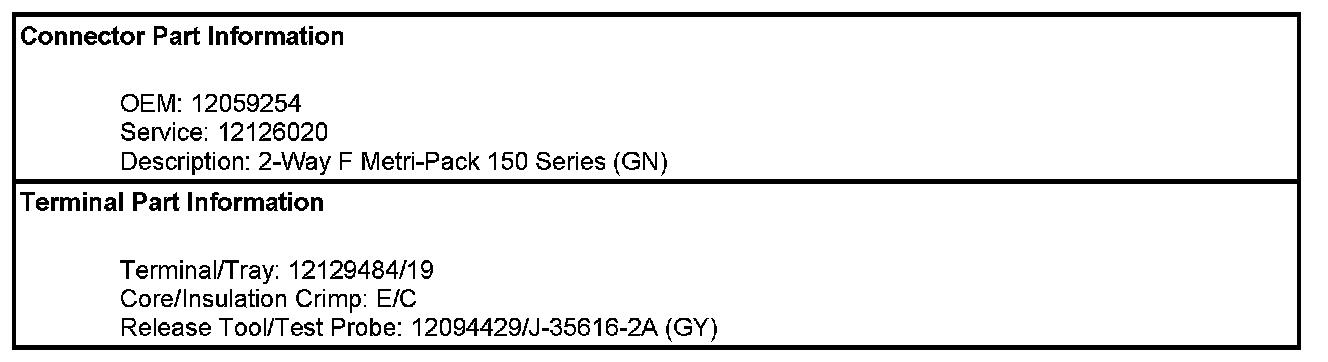

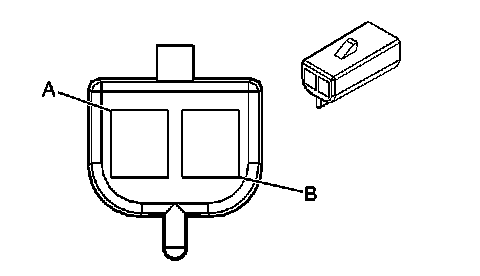

Heated Seat Element - Passenger Back (KA1)

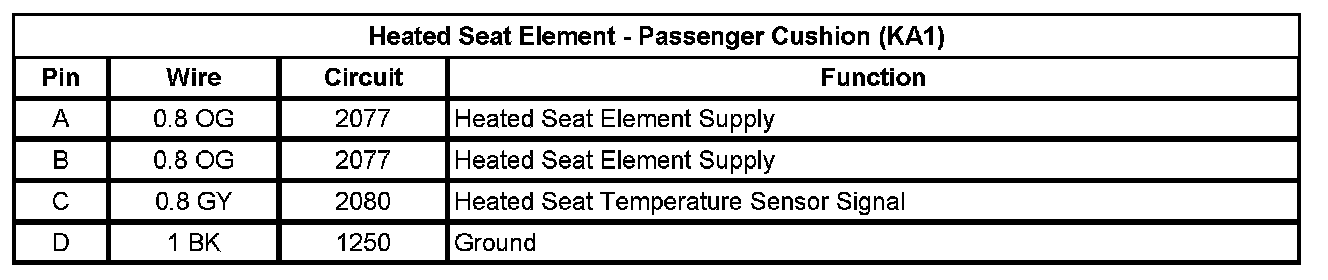

Heated Seat Element - Passenger Cushion (KA1)
