Home >> Chevrolet >> 2008 >> Cobalt L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Angle Sensor

Steering Angle Sensor

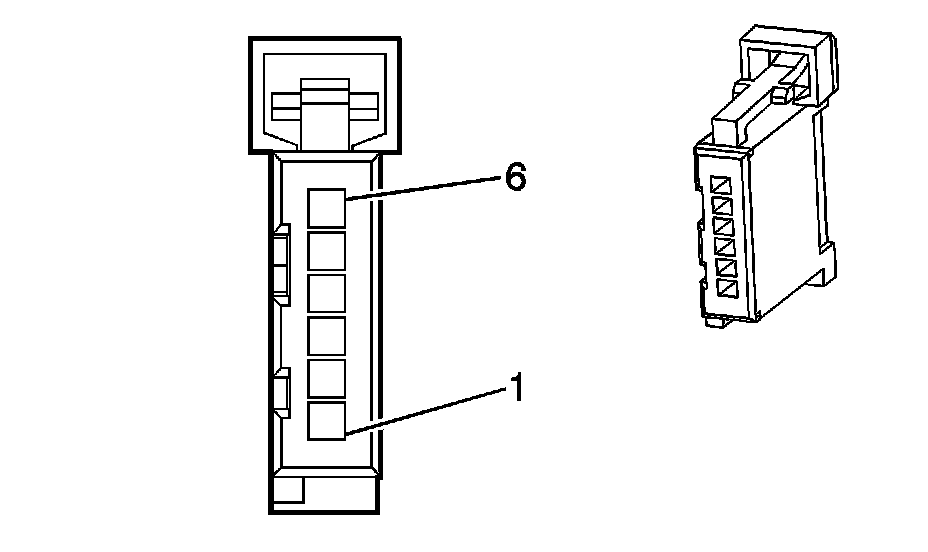

Component Connector End Views

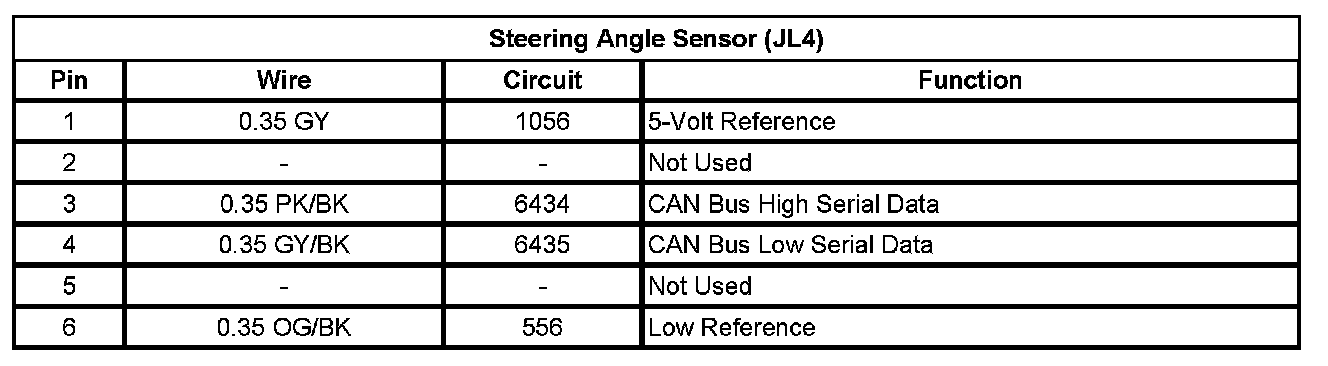

Steering Angle Sensor (JL4)
