Steering Control Module



Component Connector End Views

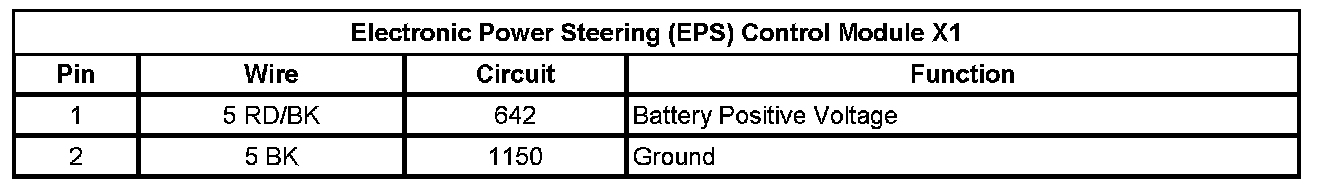

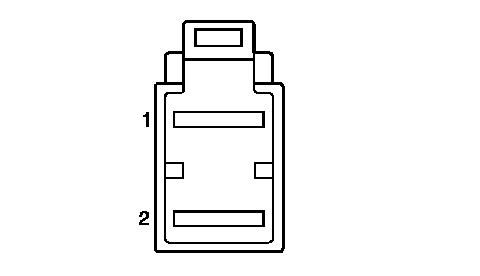

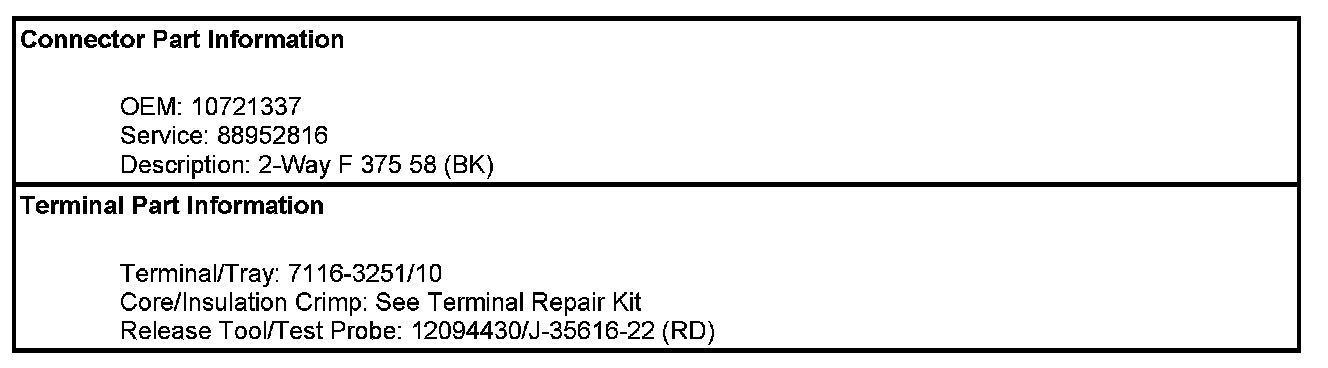

Electronic Power Steering (EPS) Control Module X1

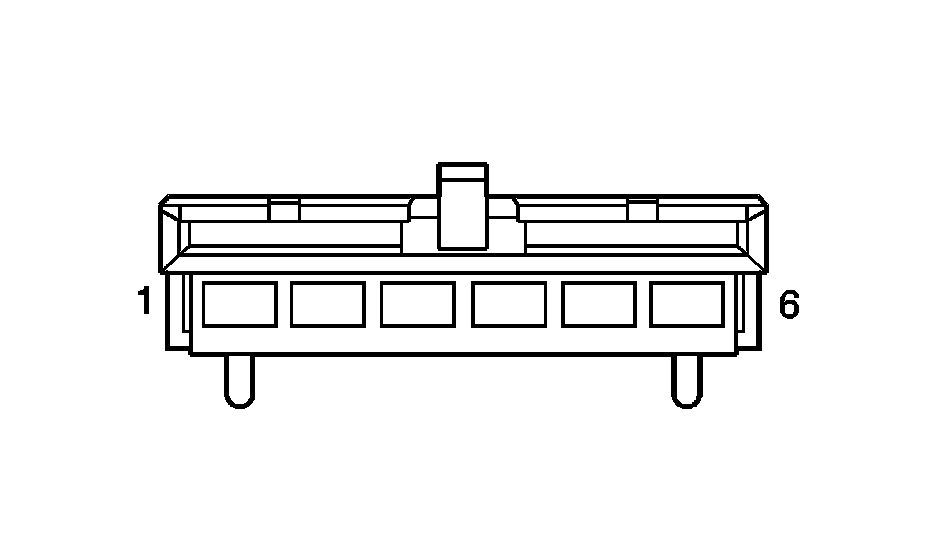

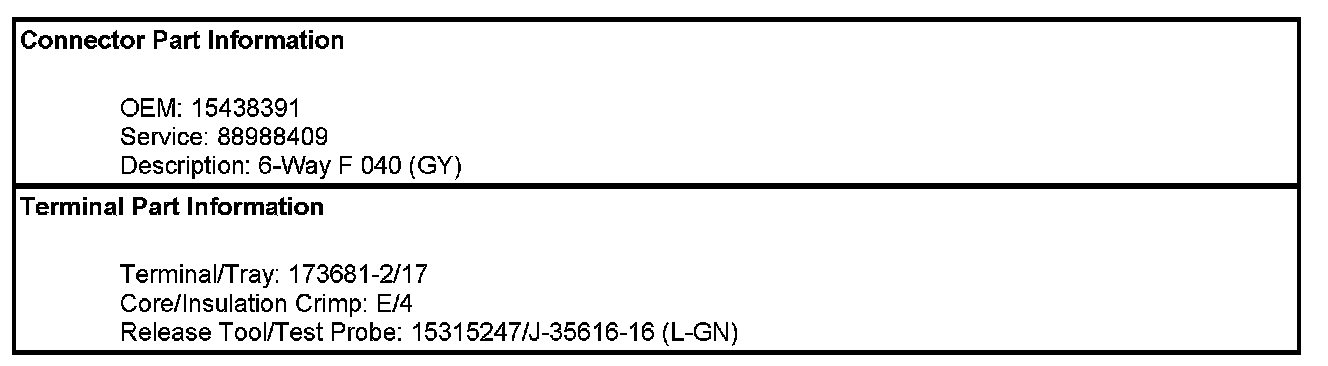

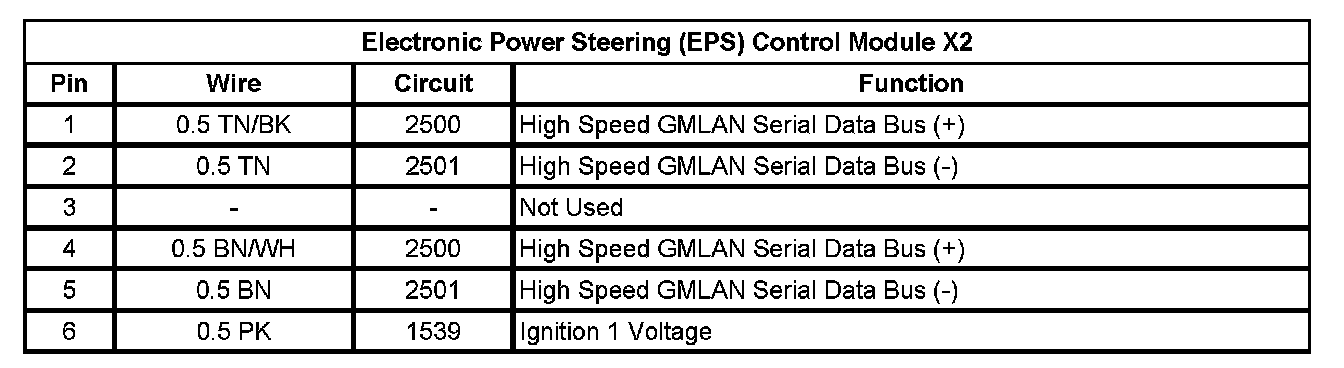

Electronic Power Steering (EPS) Control Module X2

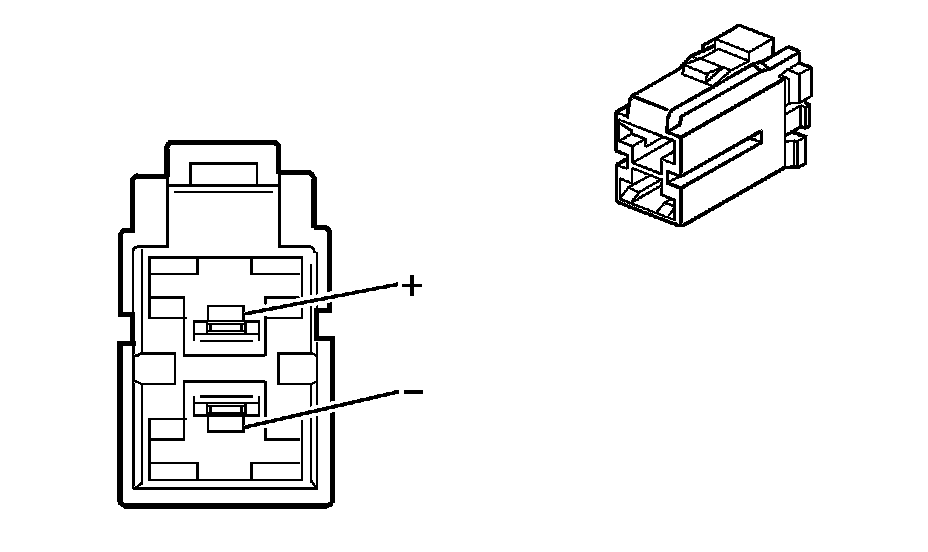

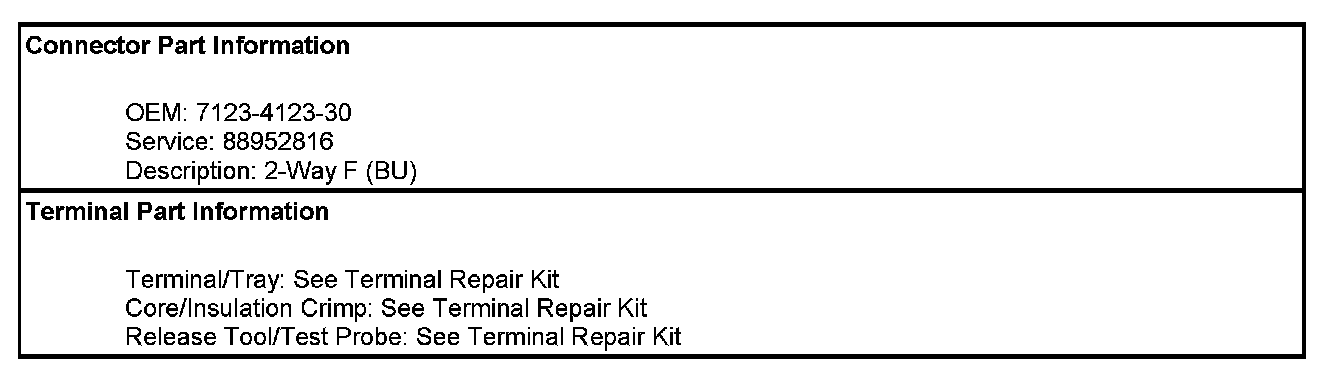

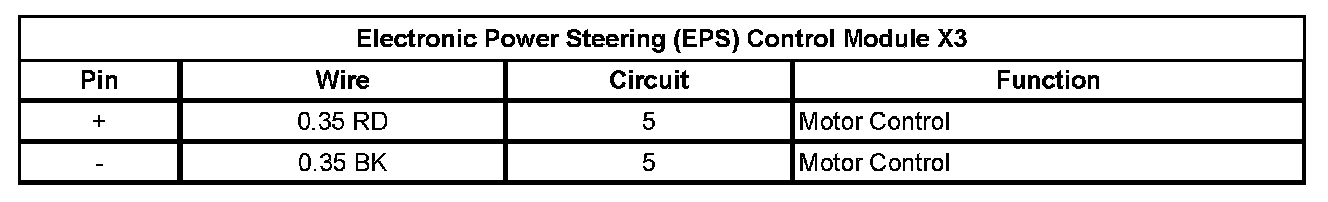

Electronic Power Steering (EPS) Control Module X3
