Transmission Position Sensor/Switch, A/T
Transmission Position Sensor/Switch, A/T

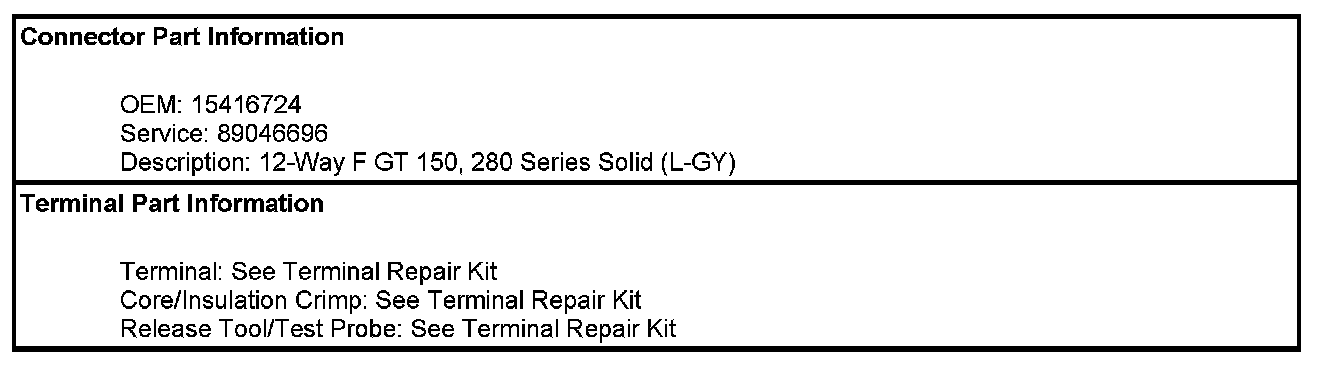

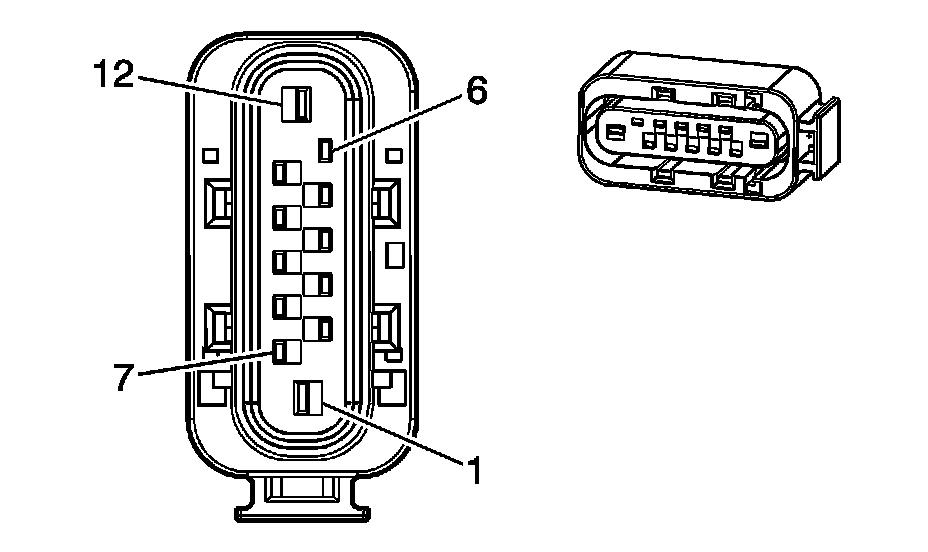

Component Connector End Views - Continued

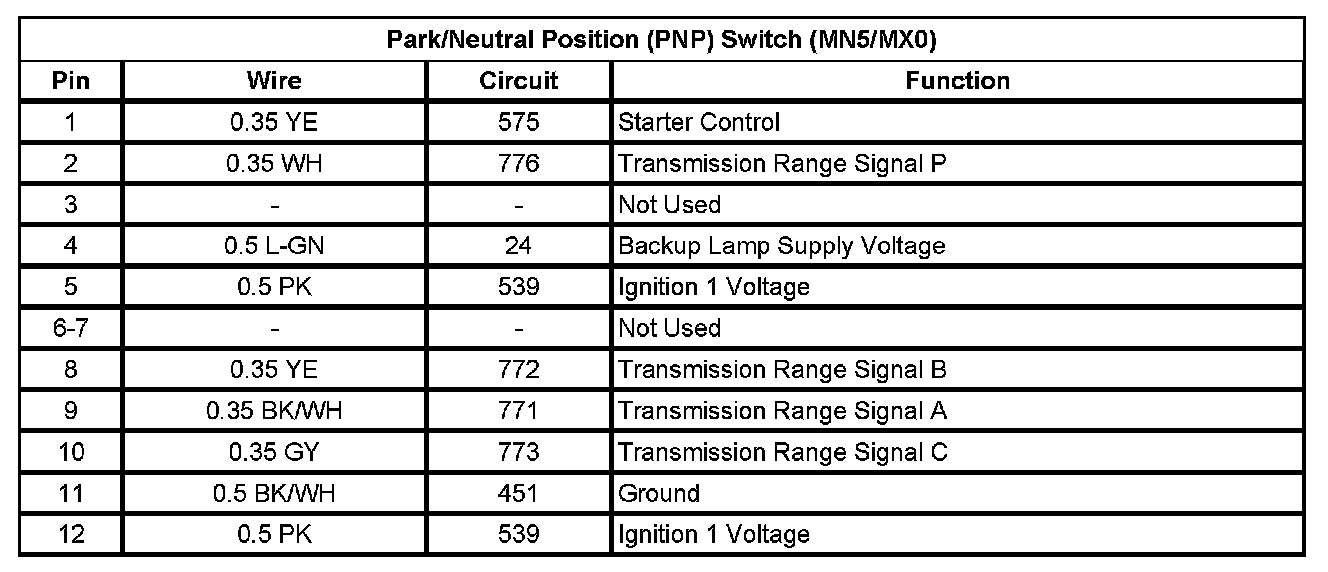

Park/Neutral Position (PNP) Switch (MN5/MX0)
