Antitheft and Alarm Systems: Service and Repair

LED Indicator Replacement - Vehicle Security System

Removal Procedure

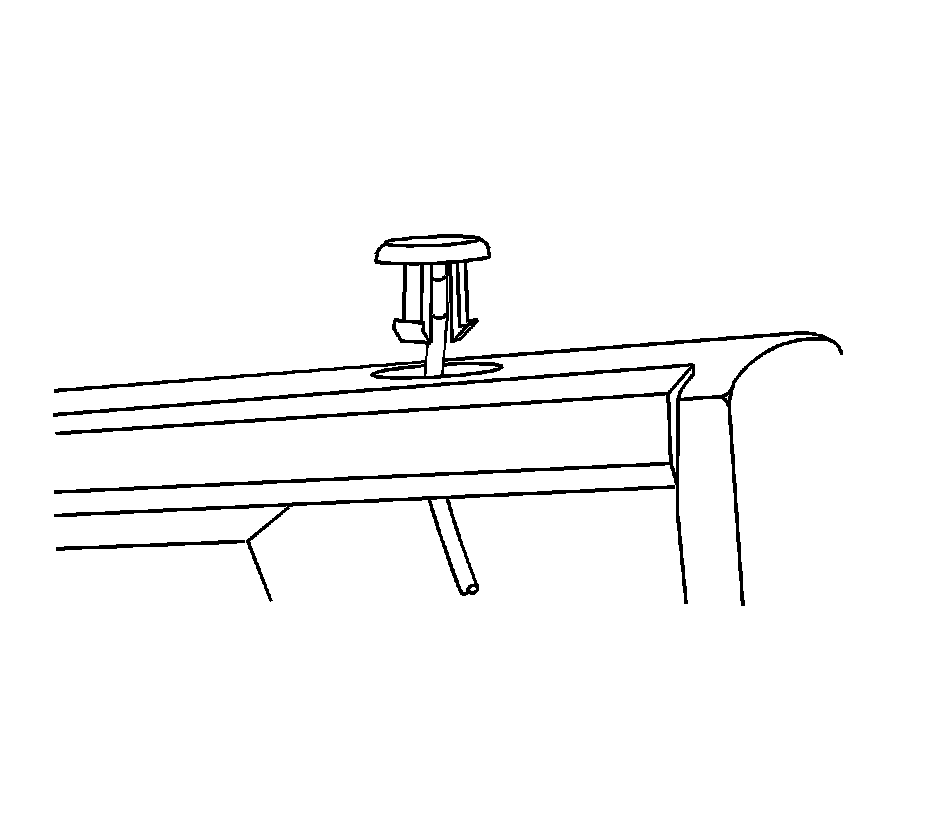

1. Use a flat-bladed tool to remove the theft LED from the door trim panel.
2. Disconnect the theft LED from the electrical connector.
3. Remove the theft LED.



Installation Procedure





1. Connect the theft LED to the electrical connector.
2. Press the theft LED to the opening in the door trim panel.
