Passenger Seat Schematics
Passenger Seat Schematics
Passenger Seat Schematics
6-Way Power Seat

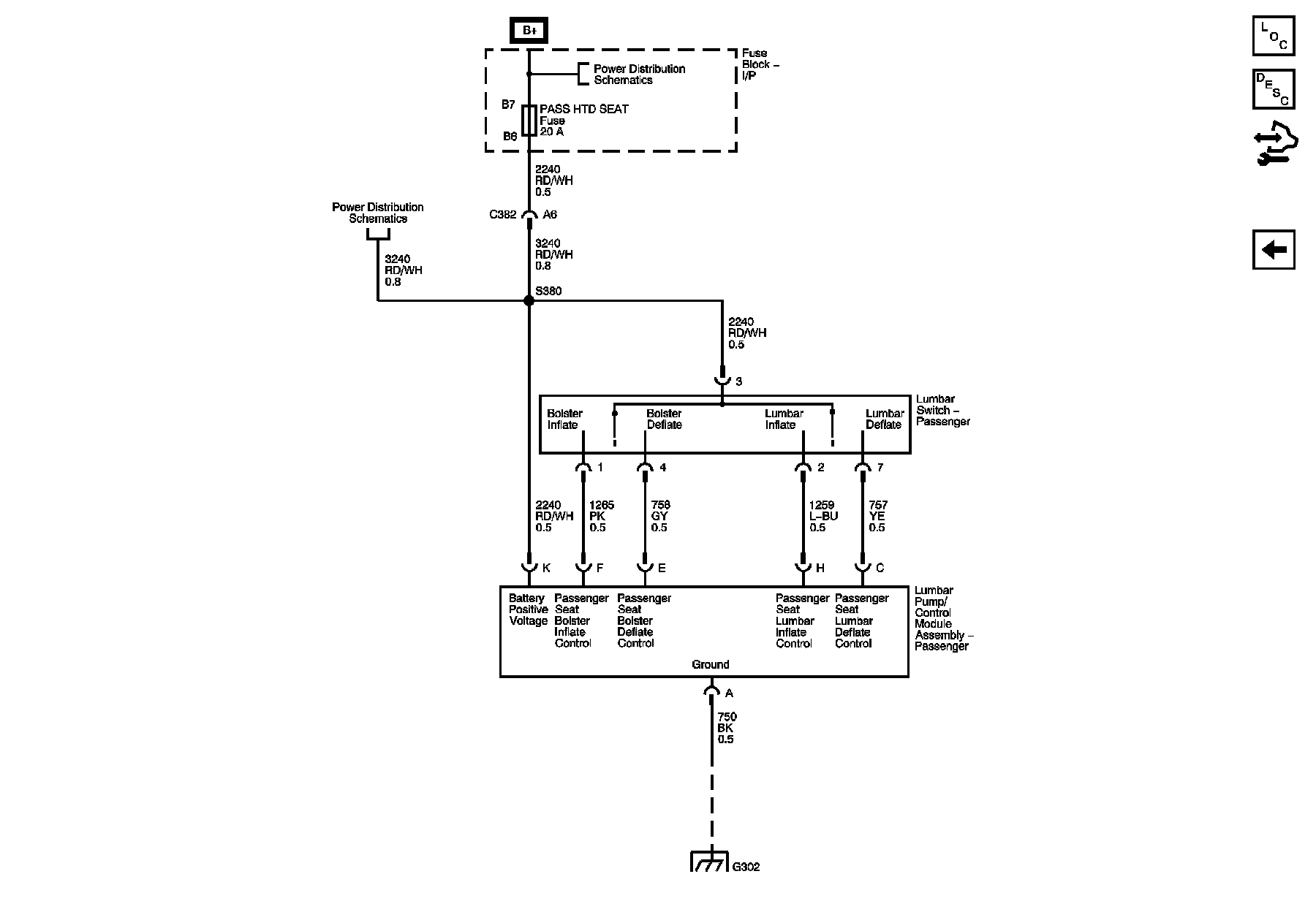

Lumbar Support
