Wiper and Washer Systems

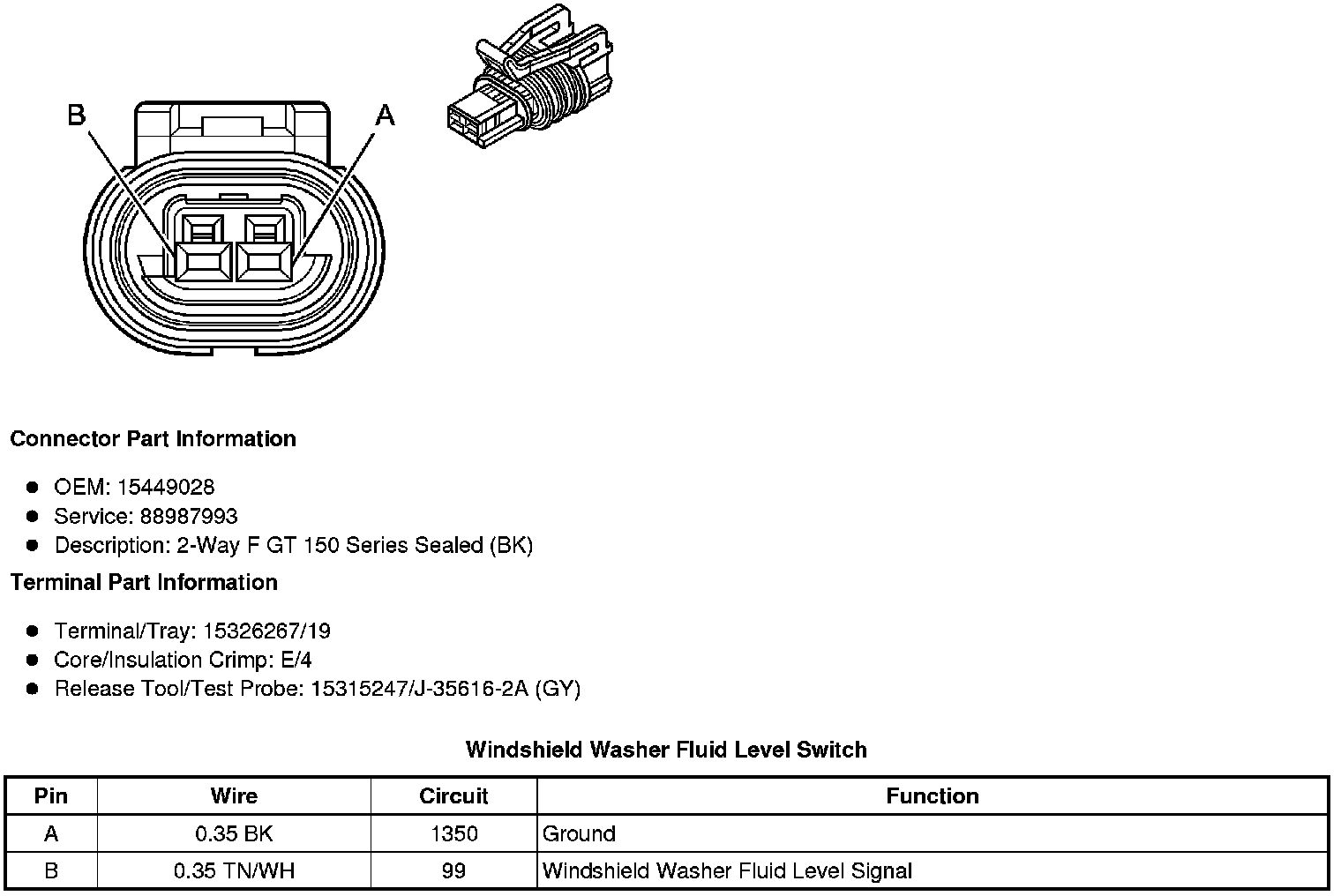

Windshield Washer Fluid Level Switch

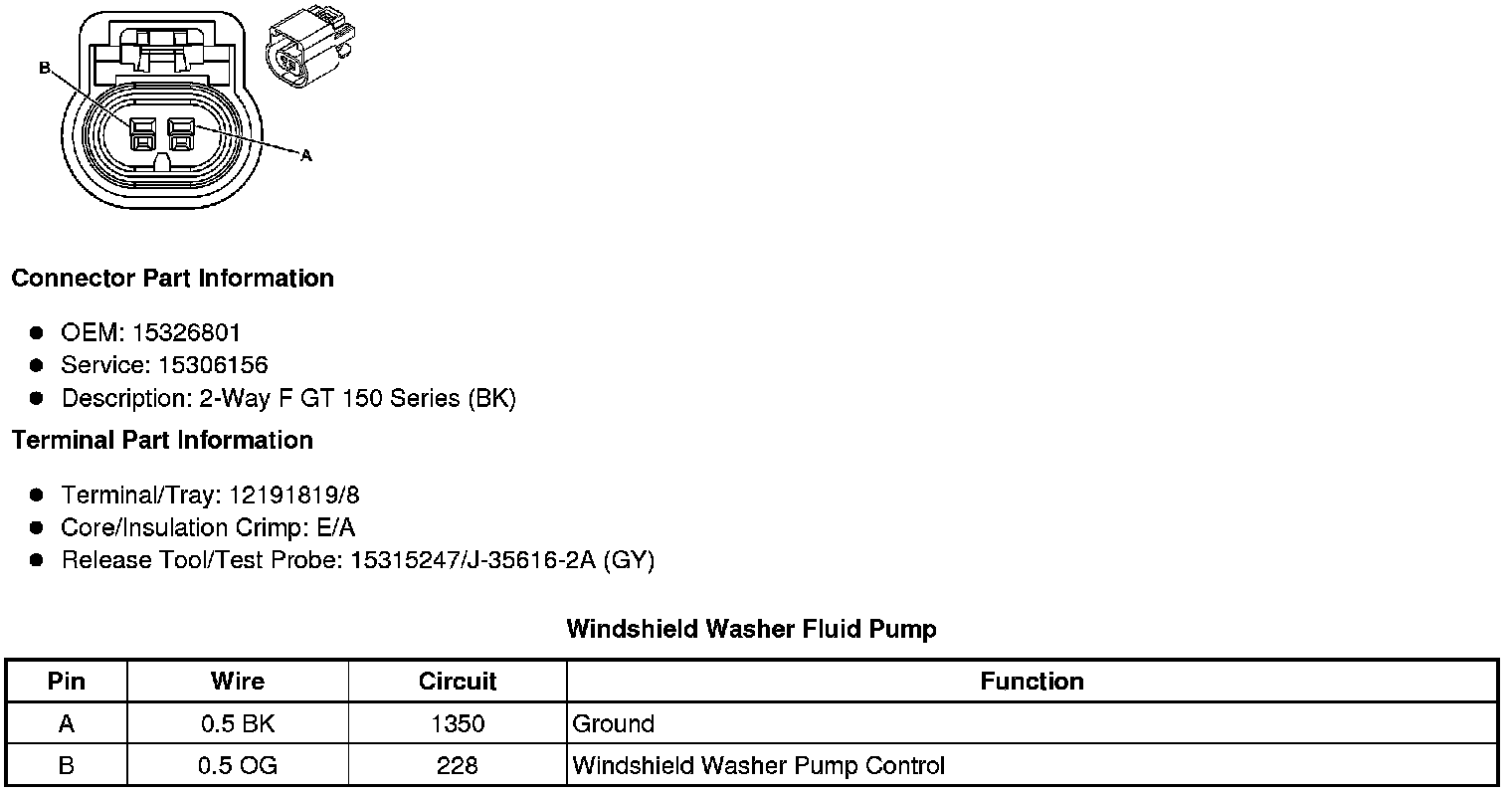

Windshield Washer Fluid Pump

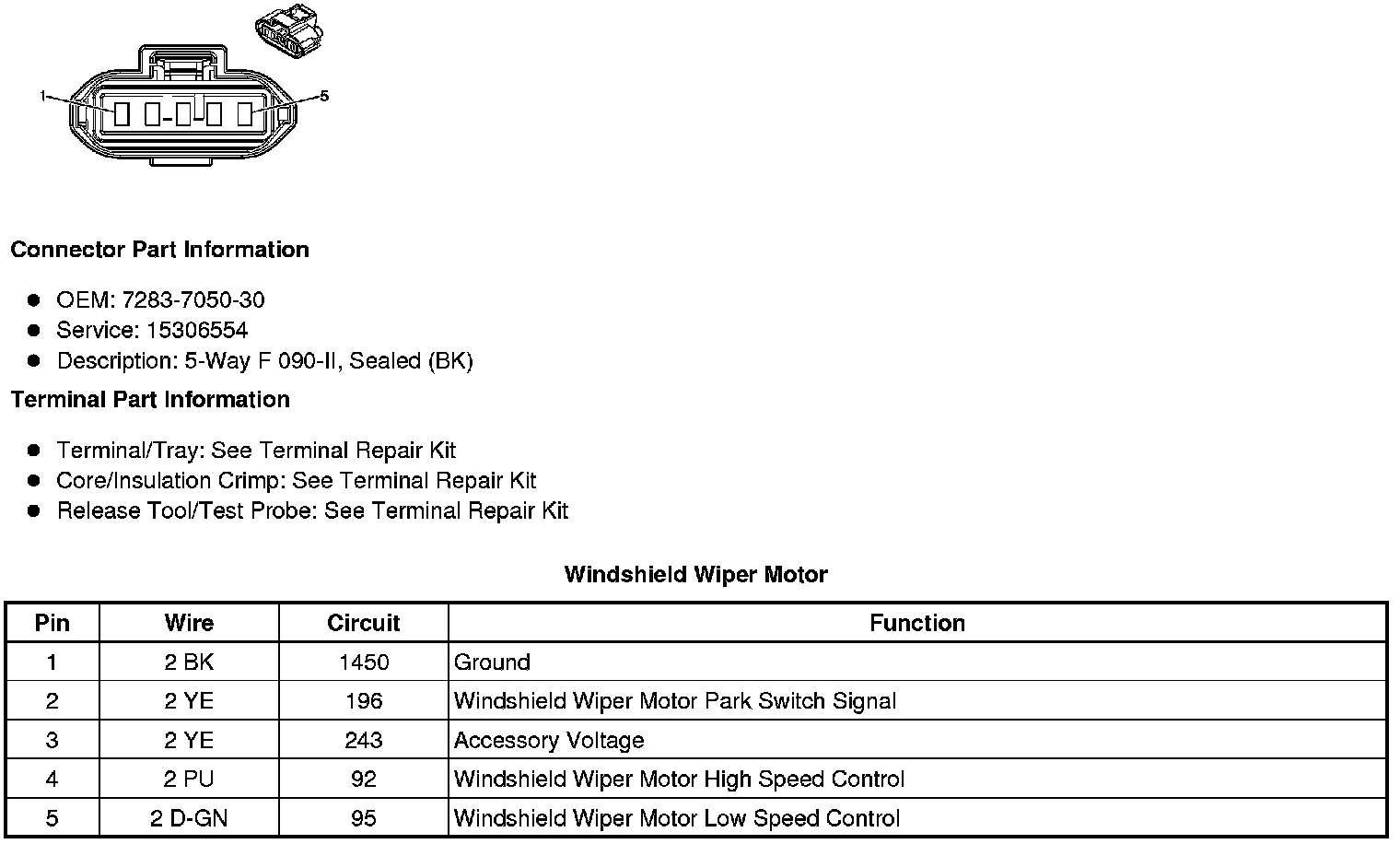

Windshield Wiper Motor

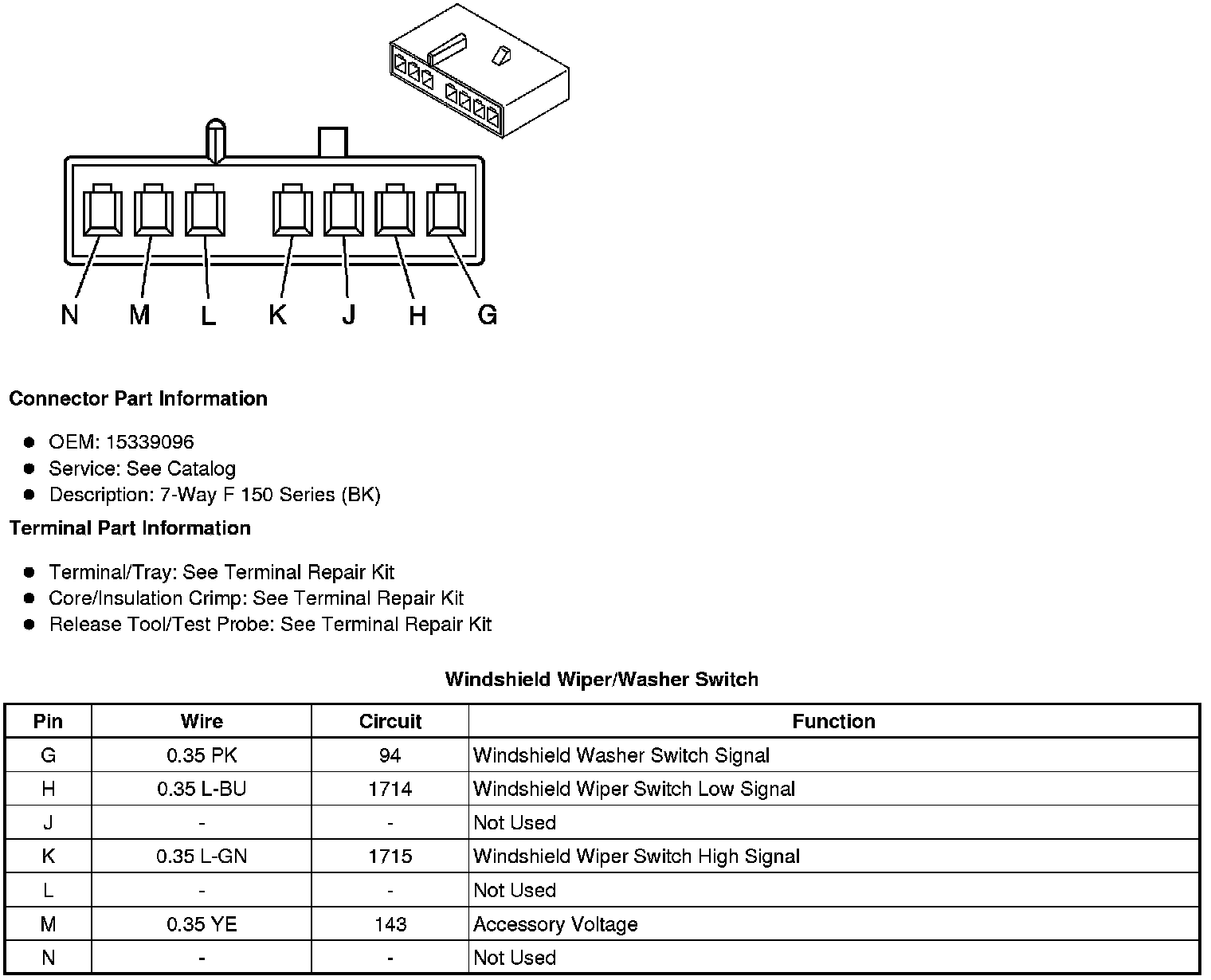

Windshield Wiper/Washer Switch
